Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
Specifications
Certification :
CE, ISO 9001
Surface Finish :
Yellow Powder Coating
Price :
$31.23
Main Material :
Steel
Supply Ability :
10000
Main Frame Size :
1219mm x 1930mm
Payment Terms :
T/T
Welding Type :
Automated CO2 Shielded Welding
Place of Origin :
china
Available Lengths :
2000mm / 2400mm / 3000mm / 4000mm
Delivery Time :
15
Tube Size :
42.4mm / 48.3mm
Brand Name :
xsh
Type :
U-Channel Steel Plank without Hook
MOQ :
30
Load Rating :
20KN and 30KN
Description
Multi Level Stackable Galvanized Steel Ladder Frame Scaffolding System For Construction

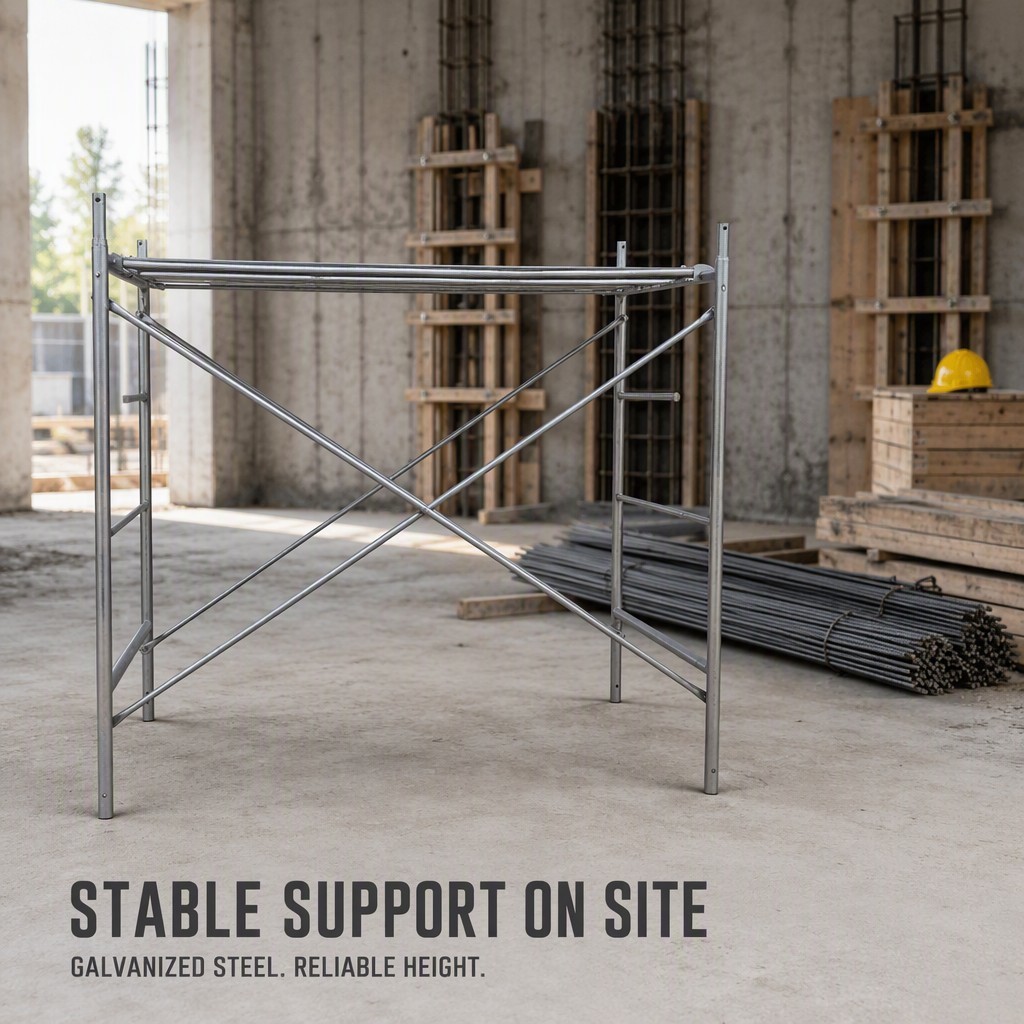

Our Multi Level Stackable Galvanized Steel Ladder Frame Scaffolding System is a professional construction solution designed for safety and efficiency. This modular system allows for easy vertical expansion and quick assembly on diverse sites. The hot-dip galvanized finish ensures superior rust resistance for indoor and outdoor projects, providing a stable platform for workers.
Key Characteristics
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating

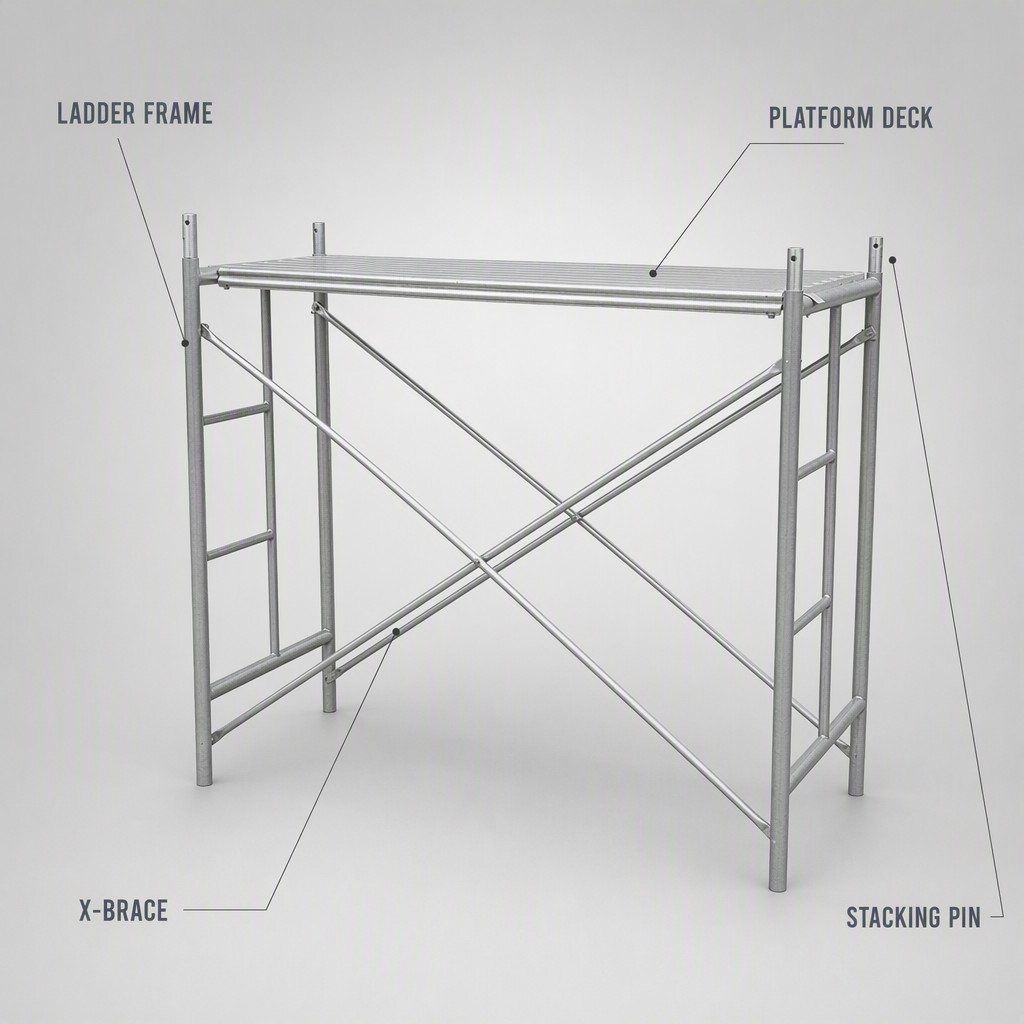

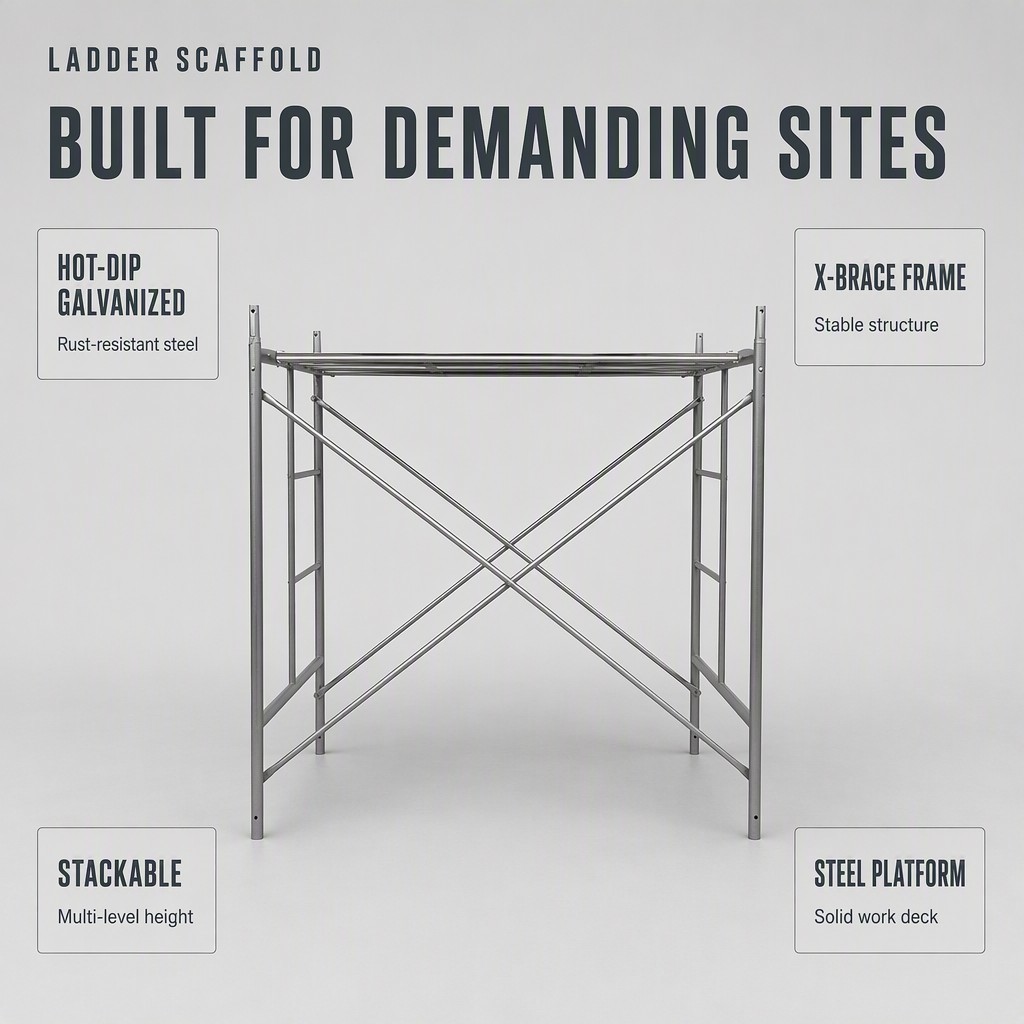

  • Modular Stacking: Easily stackable with heavy-duty pins for reaching high working levels securely
  • Ladder Frames: Integrated ladder rungs provide safe and convenient worker access
  • Stable X-Braces: Dual cross-braces ensure lateral stability and structural integrity
  • Steel Platform: Ribbed, non-slip deck offers high load capacity and firm footing
  • Quick Assembly: Tool-free design for rapid setup and easy site mobility
Advanced Technology
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
We utilize precision automated welding for consistent joint strength across all frames. Our Hot-Dip Galvanizing technology submerges every component in molten zinc, creating a thick metallurgical bond that offers far superior protection against oxidation and weather than standard spray painting.
Engineering Theory
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating

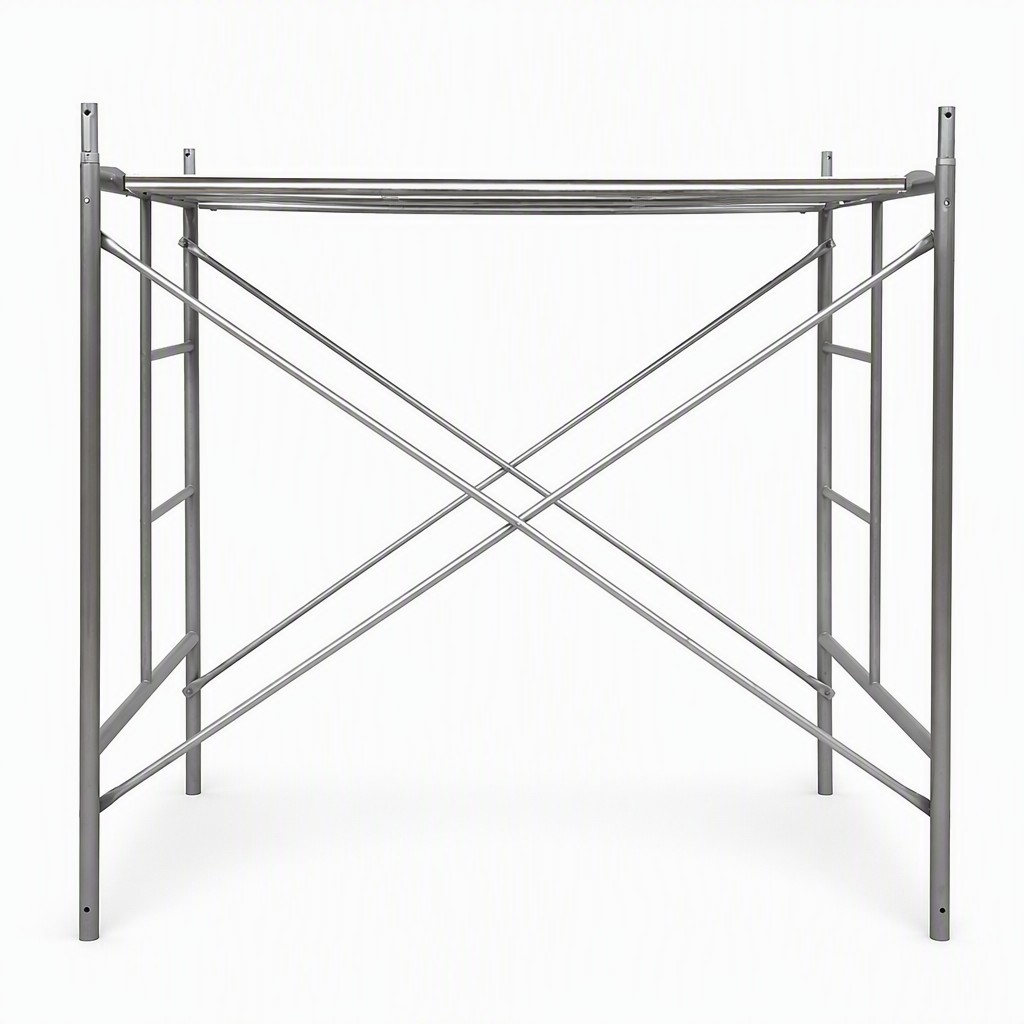

The system operates on the principle of rigid load distribution through vertical ladder frames and stabilizing diagonal X-braces. This configuration effectively resists shear forces, while precision-aligned stacking pins ensure the center of gravity remains stable throughout multi-level towers.
Applications
  • Construction: Ideal for masonry, bricklaying, and exterior wall finishing
  • Maintenance: Perfect for painting high ceilings and indoor light fixture repairs
  • Industrial: Used for piping installations and large-scale factory maintenance
  • Events: Reliable for temporary staging and lighting rig setups
Technical Specifications
Multi-Level Stackable Hot-Dip Galvanized Ladder Frame Scaffolding System with 20KN and 30KN Load Rating
Component Specification Material Finishing
Main Frame 1219mm x 1930mm Q235 Steel Hot-Dip Galvanized
Tube Size 42.4mm / 48.3mm Carbon Steel Zinc Coated
Wall Thickness 2.0mm - 3.0mm High-Grade Steel Rust Resistant
X-Brace 1829mm / 2134mm Galvanized Tube Crystalline Zinc
Stacking Pin Heavy Duty Steel Alloy Anti-Corrosion
Steel Plank 320mm / 420mm Ribbed Plate Galvanized
Load Capacity 250kg Structural Steel Industrial Grade
Note: Table width set to 650 for optimal web display.
Key Advantages
  • 10x Lifespan: Hot-dip galvanization lasts much longer than painted alternatives
  • Two-Man Setup: Simple design allows for rapid tower assembly in minutes
  • Certified Safety: Exceeds load-bearing requirements for professional construction use
  • Compact Logistics: Stackable design saves warehouse space and reduces transport costs
Service & Support
We offer full OEM/ODM customization, professional technical support via manuals and videos, and a 100% quality guarantee on all zinc coating thickness and load tests. Fast global delivery is supported by our large inventory.
Frequently Asked Questions
Q: Can it be stacked above 3 levels?
A: Yes, but outriggers are recommended for heights over 4 meters.
Q: Is the platform included?
A: We offer complete sets or individual components as required.
Q: How often to inspect?
A: Before each use and a full monthly structural check.
Production Process
Our workflow includes raw material inspection, CNC precision cutting, robotized welding for maximum joint strength, and a 450°C hot-dip galvanizing bath for total coverage, followed by final load testing.
Operation Method
Level the ground, connect two vertical frames with X-braces, install the steel plank securely, and use stacking pins for vertical expansion. Always verify locking pins are engaged before use.
Safety Precautions
Do not exceed 250kg load; never move the scaffold while occupied; use safety harnesses at height; avoid use in high winds; keep the platform clear of oil and debris.
Why Choose Us
With 15+ years of expertise, we are a leading manufacturer committed to safety and quality. Our ISO-certified facility ensures every scaffold meets international standards, providing the reliability you need for complex construction projects.
