Specifications
Certification :
CE, ISO 9001
Adjustable Range :
1.8m - 3.2m / 2.2m - 3.9m / 2.5m - 4.5m
Price :
$10
Thickness :
2.0mm - 3.5mm / 1.5mm - 2.5mm / 1.2mm - 2.0mm
Supply Ability :
100000
Welding Type :
Automated CO2 Shielded Welding
Brand Name :
xsh
Product name :
Adjustment steel prop
MOQ :
300
Tube Diameter :
60mm / 48mm / 56mm / 40mm
Payment Terms :
T/T
Load Capacity :
25kN - 35kN / 15kN - 25kN / 10kN - 15kN
Delivery Time :
15
surface treatment :
Galvanized
Place of Origin :
china
Tube Size :
42.4mm / 48.3mm
Description
Adjustable Galvanized Steel Shoring Prop For Construction Formwork Support
Our Adjustable Galvanized Steel Shoring Prop is a high-performance, essential support system for modern construction. Manufactured from premium high-strength steel and treated with hot-dip or electro-galvanization, it offers exceptional corrosion resistance and load-bearing stability. Its unique telescopic design allows for precise height adjustments, making it the ideal shoring solution for bridge girders, floor slabs, and various complex engineering structures.
Galvanized Adjustable Steel Shoring Prop with High Corrosion Resistance and Secure Hook Locking System for Construction Support

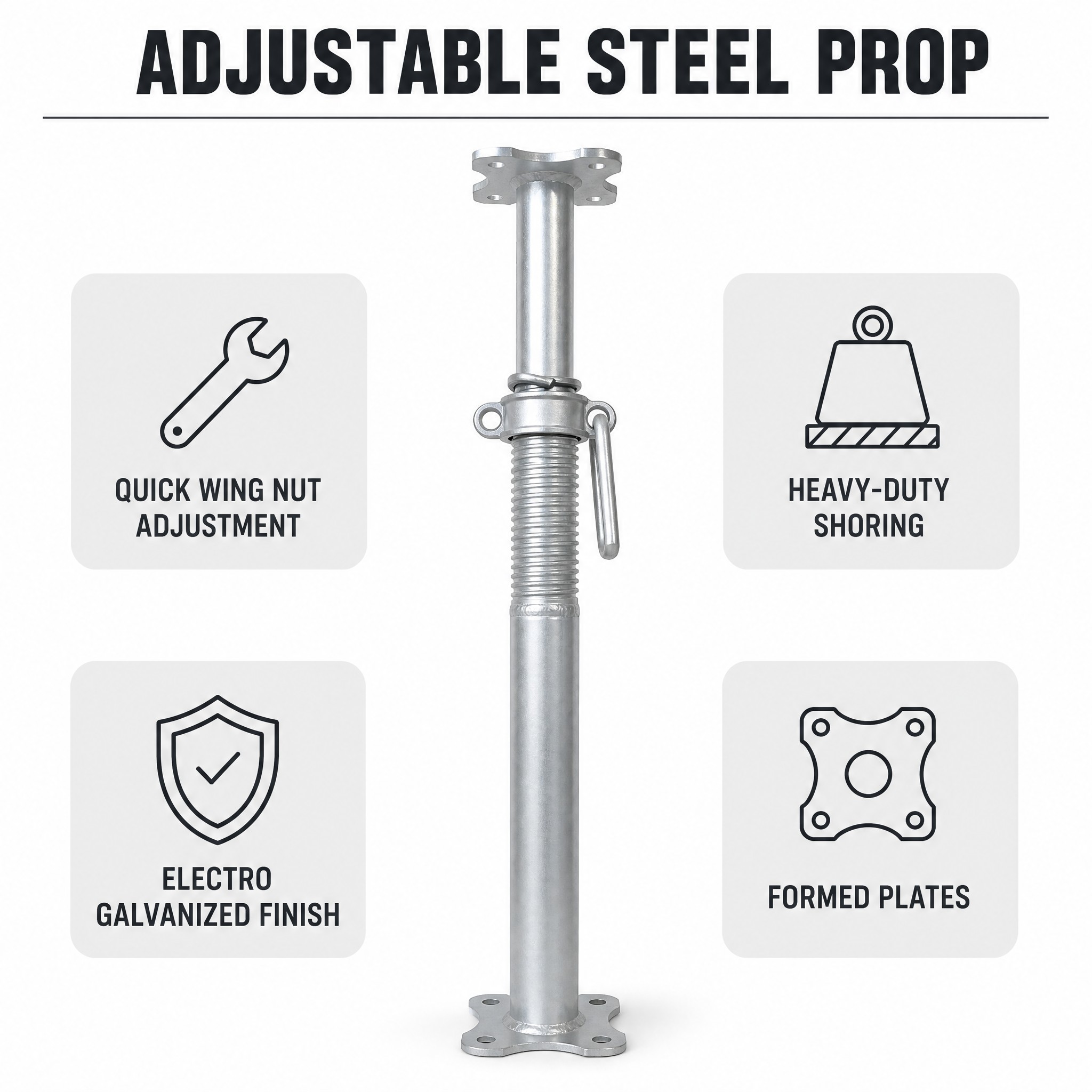

Key Features

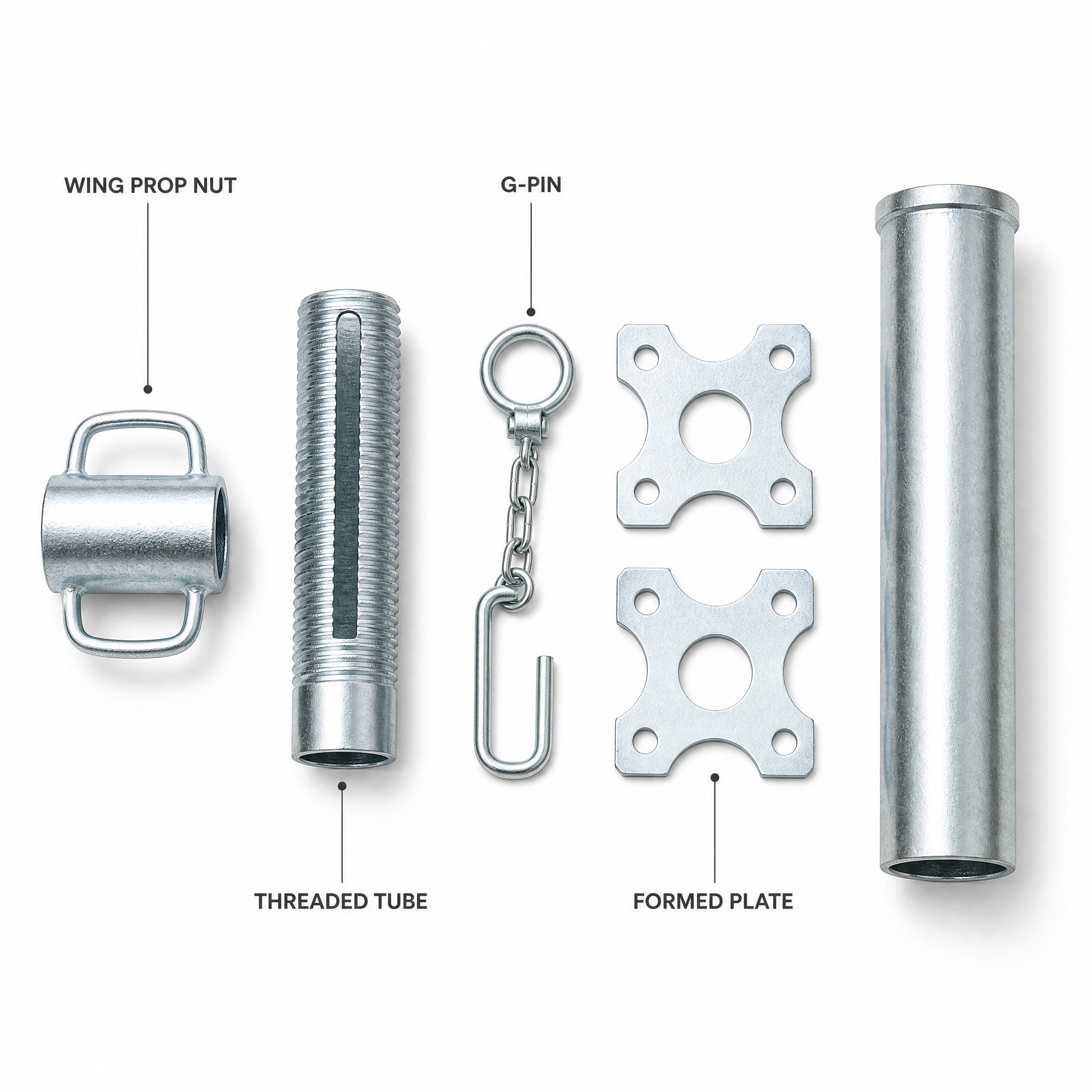

  • Flexible Adjustment: Equipped with a precision threaded tube and heavy-duty wing nut for seamless height adjustment
  • Robust Base: Features top and bottom formed plates to increase contact area and prevent displacement
  • Secure Locking: Utilizes high-strength G-Pin and multi-hole system to prevent unexpected slipping
  • Premium Coating: Automated galvanizing process provides uniform, thick zinc layer for extended service life
Galvanized Adjustable Steel Shoring Prop with High Corrosion Resistance and Secure Hook Locking System for Construction Support
Manufacturing Technology
We employ automated CNC welding technology to ensure uniform and leak-free weld beads at the junction of the tube and base plate. The threaded sections are processed using high-precision thread rolling machines, ensuring smooth rotation and superior shear resistance. Every component undergoes rigorous tensile strength testing to comply with international construction safety standards.
Galvanized Adjustable Steel Shoring Prop with High Corrosion Resistance and Secure Hook Locking System for Construction Support
Operating Principle
The system operates on the principle of axial load equilibrium. Height adjustment is achieved through the telescopic extension of the inner tube within the outer adjustment tube. When vertical load is applied to the top plate, the pressure is transmitted through the threaded nut and the safety G-Pin to the base, ensuring stable and reliable support for the formwork system above.
Applications

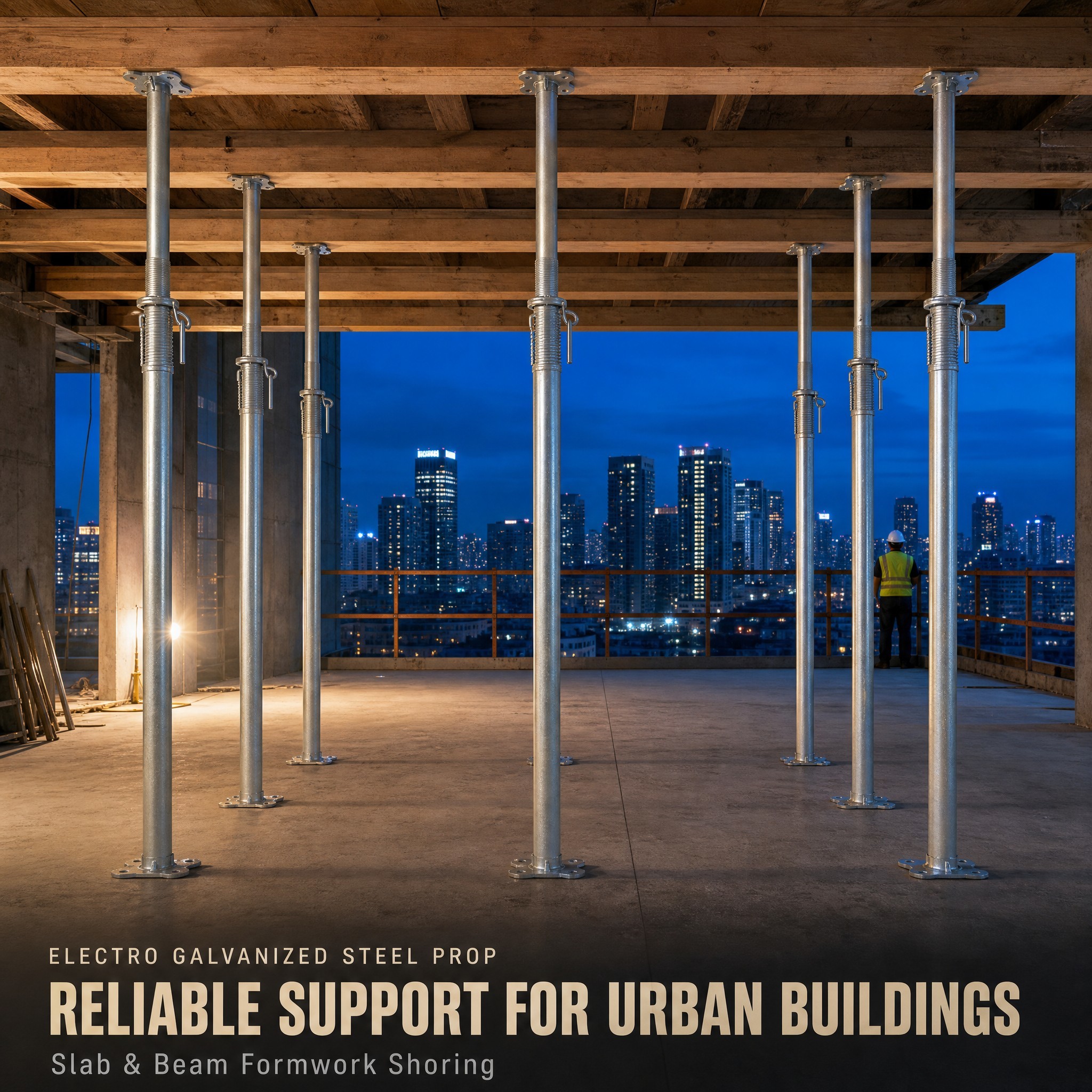

  • Slab Formwork Support: Ideal for cast-in-situ concrete floor shoring in residential, office, and industrial buildings
  • Bridge Girder Reinforcement: Serves as temporary vertical support and load-bearing columns in large infrastructure projects
  • Maintenance Platforms: Provides steady foundation for high-altitude work scaffolds and walkways
  • Urban Renovation: Offers precise local shoring for structural reinforcement in existing building modifications
Galvanized Adjustable Steel Shoring Prop with High Corrosion Resistance and Secure Hook Locking System for Construction Support
Technical Specifications
Type Adjustable Range Tube Diameter Thickness Load Capacity
Heavy Duty 1.8m - 3.2m 60mm / 48mm 2.0mm - 3.5mm 25kN - 35kN
Standard 2.2m - 3.9m 56mm / 40mm 1.5mm - 2.5mm 15kN - 25kN
Light Duty 2.5m - 4.5m 48mm / 40mm 1.2mm - 2.0mm 10kN - 15kN
Custom As Required Client Specified Client Specified 10kN - 50kN
Table width is optimized to 650 pixels for professional independent station display.
Key Advantages
  • Long-Lasting Durability: Anti-corrosive layer allows for more than 50 reuse cycles, reducing overall costs
  • Rapid Installation: No specialized tools required; single operator can complete adjustments in seconds
  • High Structural Strength: Heavy-duty design provides superior safety factor compared to traditional methods
  • Eco-Friendly: Made from 100% recyclable steel, meeting green construction requirements
Our Services
  • Professional Consultation: Recommending suitable specifications based on architectural drawings
  • OEM Customization: Supporting customized dimensions and brand logo stamping
  • Strict Quality Control: Every batch includes factory load test and coating inspection reports
  • Global Logistics: Mature sea freight arrangements for timely delivery
Frequently Asked Questions
Q: Which is better, galvanized or painted props?
A: Galvanized props have much stronger rust resistance, with a lifespan 3-5 times longer than standard painted alternatives.
Q: Can you provide safety certifications?
A: Yes, we provide third-party test reports complying with CE, SGS, and other international standards.
Q: What is the Minimum Order Quantity (MOQ)?
A: We support bulk supply and large-scale wholesale. Please contact our sales manager for specific MOQ details.
Production Process
Raw Material Inspection → Automated Cutting → Plate Stamping → Thread Processing → CO2 Shielded Welding → Hot-Dip/Electro Galvanizing → Sample Load Testing → Palletized Export Packing.
Operation Method
  1. Vertical Placement: Position the prop vertically on a firm base or timber mudsill
  2. Rough Adjustment: Pull out the inner tube to required height and insert the G-Pin into matching hole
  3. Fine Tuning: Rotate the wing nut until top plate is tightly against support object, ensuring secure lock
  4. Verticality Check: Use plumb bob to ensure vertical deviation is within safety regulations
Safety Precautions
  • Strictly forbid overloading; deploy according to safe load limits in parameter table
  • Do not use any prop showing visible bending, weld cracks, or damaged threads
  • Always use timber pads or base plates when operating on soft ground to prevent sinking
  • During removal, rotate adjustment nut slowly; avoid using violent force or hammers
Why Choose Us
As a leading global manufacturer of construction equipment, we have 15 years of expertise in the shoring prop industry. Our 20,000-square-meter modern facility and ISO-certified production lines follow a "Safety First" philosophy. We supply high-quality scaffolding systems to infrastructure projects in over 50 countries. Choosing us means choosing professional reliability and uncompromising construction safety.
