High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
Specifications
Certification :
CE, ISO 9001
Adjustable Range :
1.8m - 3.2m / 2.2m - 3.9m / 2.5m - 4.5m
Price :
$31.23
Outer Tube :
48-76 mm
Supply Ability :
100000
Adjustment Mechanism :
External Thread And Wing Nut
Brand Name :
xsh
Drainage :
Self-cleaning perforated holes
Payment Terms :
T/T
Connection Type :
Cross Brace Pin Joint
Delivery Time :
15
Tube Diameter :
60mm / 48mm / 56mm / 40mm
Place of Origin :
china
Load Capacity :
10kN - 35kN (Extension dependent)
MOQ :
30
Tube Size :
42.4mm / 48.3mm
Description

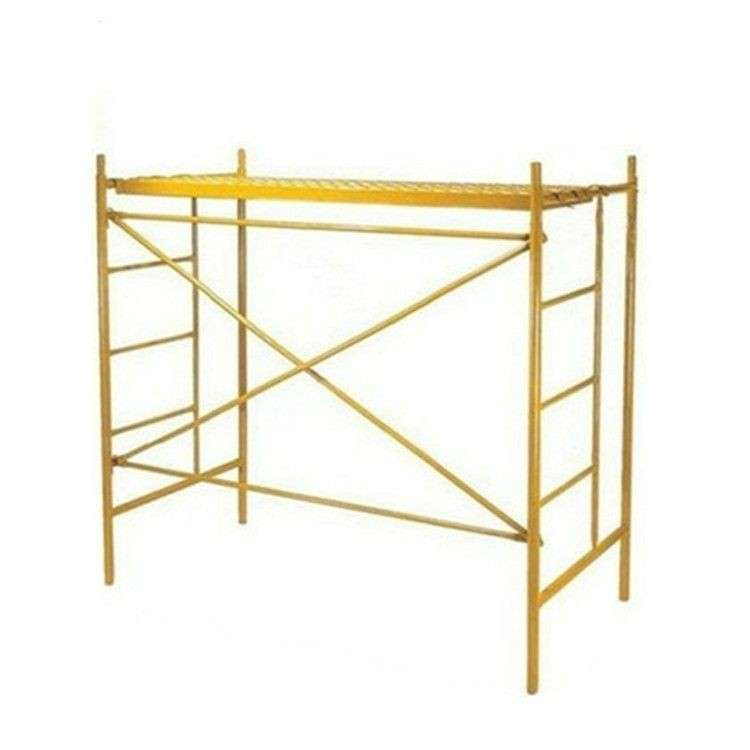

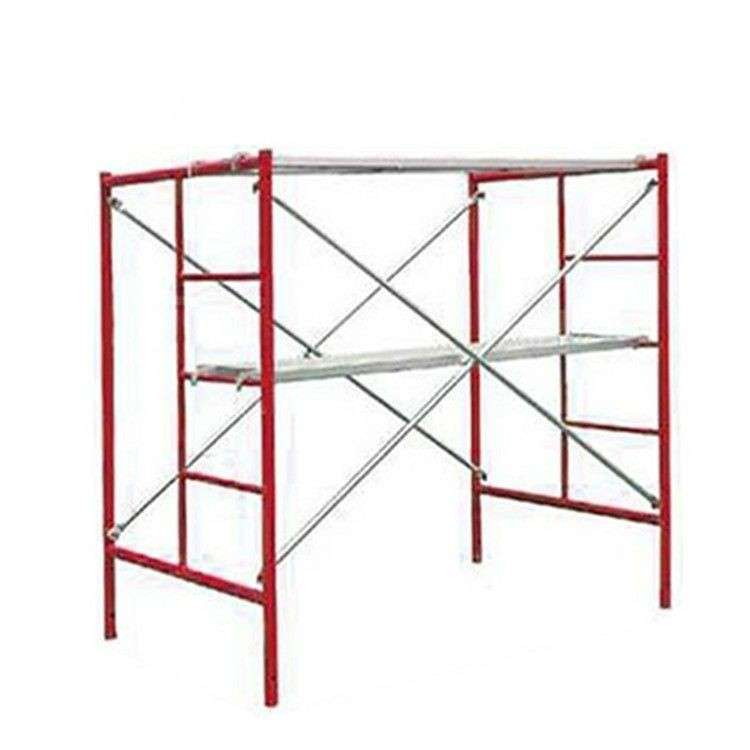

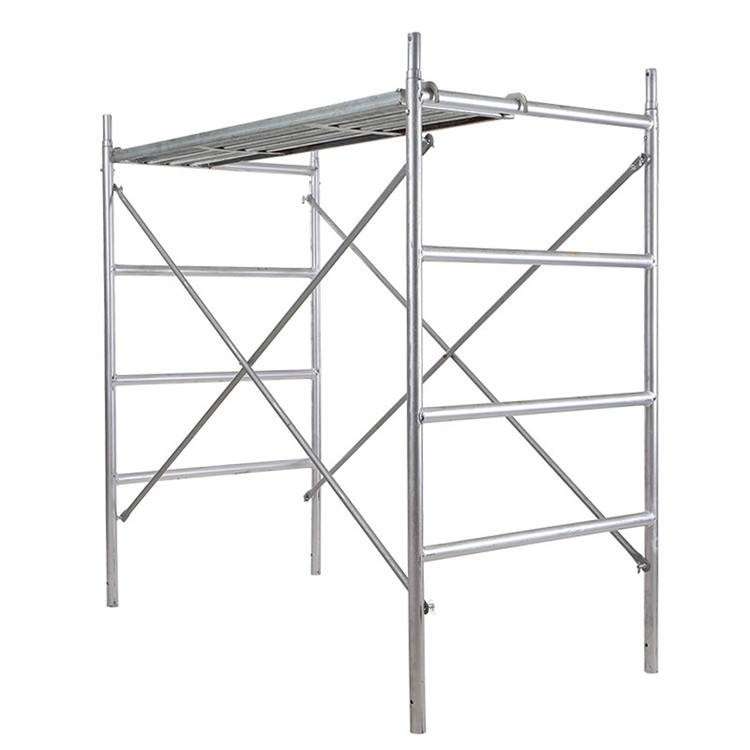

Construction Scaffolding Mason Frame System Mobile Ladder Frame Scaffold
Product Overview

The Construction Scaffolding Mason Frame System is a high-strength modular structure designed for various construction projects. This mobile ladder frame scaffold provides a stable platform for masonry, painting, and maintenance work. Its robust H-frame design ensures safety and structural integrity while allowing for quick manual assembly.

High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
Key Characteristics

Our scaffolding features heavy-duty steel construction and standardized components for universal compatibility. Precision-engineered locking pins and high-load cross braces ensure exceptional stability. Integrated ladder rungs on the frames enhance worker mobility and site efficiency.

High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
Manufacturing Technology

We utilize high-frequency induction welding for all joints, ensuring maximum strength and durability. Surface treatments include electrostatic powder coating or hot-dip galvanization, providing exceptional resistance to rust, corrosion, and wear in harsh outdoor environments.

High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
Structural Theory

The system efficiently distributes vertical loads through the standards to the base. Lateral stability is achieved via diagonal cross braces, creating a rigid truss system that prevents buckling and ensures the tower remains stable under load.

Applications
  • External masonry and facade work
  • Building painting and renovation
  • Interior ceiling and electrical maintenance
  • Industrial facility repair
  • Event staging and temporary support
High Load Capacity Scaffolding Frame with Integrated Ladder and Secure Hook Locking System
Technical Specifications
Component Material Specification (mm) Finish
Mason Frame Q235 Steel 1219 x 1930 Powder Coated
Ladder Frame Q235 Steel 914 x 1700 Galvanized
Cross Brace Q195 Steel 1829 x 1219 Zinc Plated
Steel Plank Galvanized 1829 x 420 Non-slip
Key Advantages

Our H-frame system erects up to 40% faster than traditional scaffolds. Its reusable nature and high durability provide low ownership costs. Integrated safety features like secure locks ensure compliance with international regulations and protect workers.

Customer Service

We provide comprehensive technical support, site consultation, and custom configurations. Our logistics team ensures timely global delivery, and we offer responsive customer service for all inquiries regarding product specifications or installation guidance.

Frequently Asked Questions
Q: What is the load capacity?
A: Standard frames support up to 2,500 lbs per post.
Q: Is it compatible with other systems?
A: Yes, our frames follow international standards for broad compatibility.
Q: Are custom colors available?
A: Yes, we offer various RAL colors for bulk orders.
Production Process

Our manufacturing process includes raw steel inspection, automated cutting, and precision bending. Robotic welding ensures 100% consistency. Every component undergoes rigorous load testing and finishing before being bundled for shipment.

Operation Method
  1. Set base jacks
  2. Install main frames
  3. Connect cross braces and locks
  4. Install steel planks
  5. Stack frames for height
Safety Precautions
  • Wear appropriate personal protective equipment (PPE)
  • Never exceed the specified load capacity
  • Keep scaffold plumb and level at all times
  • Inspect components before each use
  • Avoid use in extreme wind conditions
Why Choose Our Products

With over 15 years of expertise, we are a trusted partner for global contractors. Our automated production ensures consistent precision and safety. We deliver robust systems that elevate project performance and ensure site safety.
