Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Specifications
Size :
OD 48/56/60mm | ID 40/48/48mm | Height 1.6-4.0M
Inner Tube :
40/48/48mm OD, Q235 Steel, HDG or Painted
Base Plate Width :
120mm Square/Cross/Round, 4-Hole, Full Fillet Welded
MOQ :
300
Surface Treatment :
Galvanizing, Hot Dip Galvanized / Electro-Galvanized / Powder Coated / Painted
Advantage :
Smooth Surface / Full Welding / Solid Packaging / Easy Assembly / Strict Tolerance
Style :
Telescopic Adjustable Steel Prop, Multi-Color
Place of Origin :
Sichuan, China
Price :
$8.03-13.03
Scaffolding Part Type :
Steel support rod
Adjust Length :
1.6-4.0M, 100mm Pin Coarse, Threaded Collar Fine
Project Solution Capability :
graphic design, total solution for projects, Cross Categories Consolidation, Others
Packing :
Steel Pallet Bundle (50pcs/Bundle, Waterproof Wrapped)
Standard :
EN 1065 / ISO 9001:2015
Material :
q235 steel, Q235 Steel / Q345 Steel
Color :
Red / Yellow / Blue / Dark Blue / Silver Galvanized
Application :
Hospital, Office Building, Apartment, Villa, Hotel, building construction, concrete construction support, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park
Brand Name :
XSH
Description

Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building

Product descriptions from the supplier

Premium Telescopic Steel Shoring Prop:
Designed with Q235 steel structure and hot-dip galvanized coating for excellent strength and corrosion protection.

Heavy Duty Formwork Support Application:
Available in 20KN and 30KN models, suitable for slab support, beam support, and temporary reinforcement.

Long-Term Outdoor Protection Performance:
60-80μm zinc coating improves resistance against harsh weather and construction site conditions.

Advanced Head Plate Selection:
Offers U-head fork, flat plate, and flower plate designs for multiple construction systems.

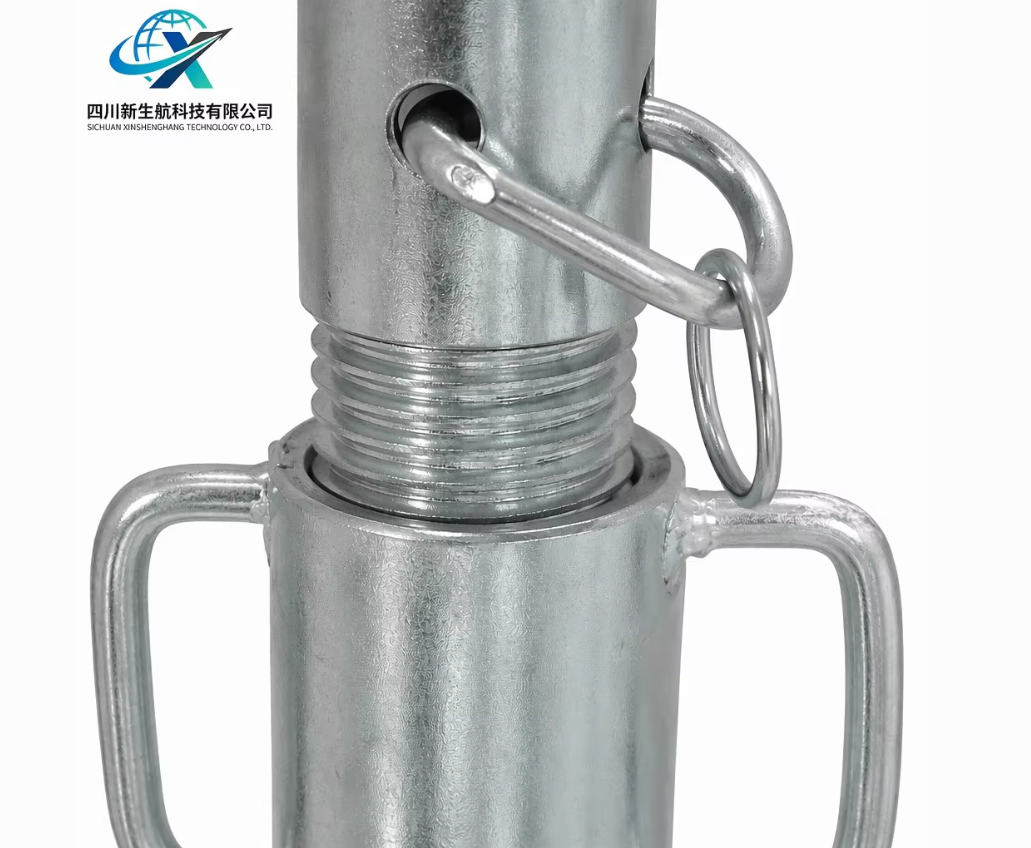

Convenient Installation and Adjustment:
Quick-release G-pin and threaded adjustment collar provide efficient operation and accurate positioning.

Complete Customization Solutions:
Supports different diameters, thicknesses, lengths, colors, and logo printing.

Worldwide Delivery Capability:
Stock products with secure steel pallet packing and fast international transportation.

Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Company overview
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Competitive advantages
XSH has over 16 years of industry expertise in scaffolding manufacturing and global export. With 5 factories and a total production area of more than 60,000㎡, we have strong manufacturing capacity to support large-scale projects worldwide. Our products are ISO certified and manufactured with premium Q355B/Q235 steel, featuring full hot-dip galvanizing and CNC welding processes to ensure durability and reliability. With over 30,000 units of standing inventory, we provide fast 24-hour dispatch and efficient delivery services across 6 continents. XSH offers one-stop scaffolding solutions, from factory production to worldwide jobsite delivery, ensuring high-quality products, secure packaging, and reliable service for global customers.
Trade show participation
Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building
Send your message to this supplier
Send Now

Steel Prop Telescopic Shoring Jack Square Clover 4H Plate For Concrete Formwork Building

Ask Latest Price
Watch Video
Product Detail
Size :
OD 48/56/60mm | ID 40/48/48mm | Height 1.6-4.0M
Inner Tube :
40/48/48mm OD, Q235 Steel, HDG or Painted
Base Plate Width :
120mm Square/Cross/Round, 4-Hole, Full Fillet Welded
MOQ :
300
Surface Treatment :
Galvanizing, Hot Dip Galvanized / Electro-Galvanized / Powder Coated / Painted
Advantage :
Smooth Surface / Full Welding / Solid Packaging / Easy Assembly / Strict Tolerance
