WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
WDD35D4 5K 2W Multi Turns Conductive Plastic Precision Rotary Potentiometer
Specifications
Brand Name :
BONENS
Model Number :
WDD35D4
Place of Origin :
Sichuan, China
Power :
2W
Turns :
Multi turns
Resistance :
5K
Type :
Multi turns rotary
Technology :
Conductive plastic
Packaging Details :
Carton packaging
Description

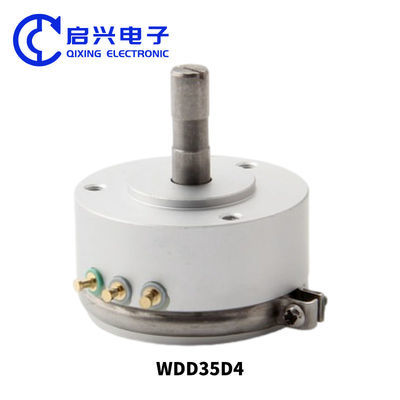

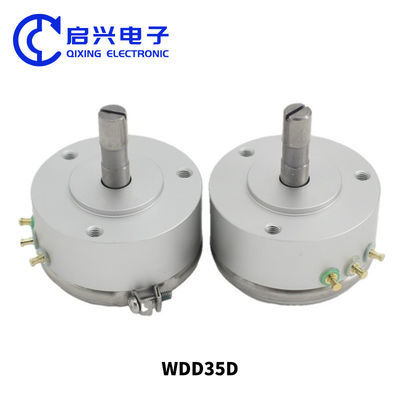

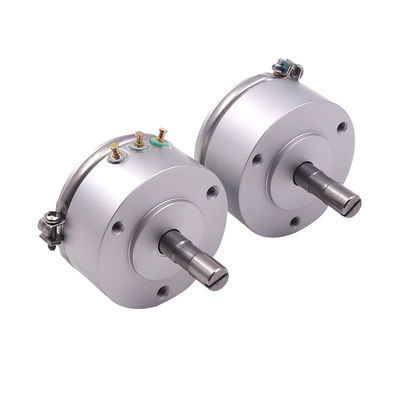

WDD35D4 Pictures:

WDD35D4-5K 2W multi-turns conductive plastic precision Rotary potentiometer

WDD35D4 Dimentions:

WDD35D4 Data :

Performance Parameters:

Resistance.................................................1 k, 2 k, 3 k, 5 k

The resistance tolerance..............................+ / - 15%

Independent linear......................................1%, 0.5%, 0.3%, 0.2%, 0.3%

Electrical Angle..........................................345 ° + /-5

The rated power........................................2 w (@ 70 ℃)

Temperature coefficient.............................400 PPM / ℃

Insulation resistance..................................1000 m or more Ω (1000 v d.c.)

High voltage.............................................1000 v (AC RMS) for 1 min

Smoothness.............................................plus or minus 0.10%

Mechanical properties:

Mechanical Angle....................................360 ° continuous

Start torque............................................1 or less x10 ^ 4 N · M

Ball bearing shaft bearing.........................two groups

Shaft....................................................stainless steel

The shell body.......................................aluminum alloy surface oxidation treatment (silver)

Environmental performance:

Mechanical life......................................50000000 RPM

Temperature range..................................-55 ℃ ~ +125 ℃

Vibration dynamic..................................15 g, 2000 hz

costs....................................................50g 11ms

Factory Information:

Certificates:

FAQ

Q1: How about your experience?
A1: We have our own professional factory and R&D department
Q2:What's your your advantage?
A2:(1) More than 12 Years Manufactuer Experience in potentiometer&resistor&EMI filter&knobs
(2) 8 years of Gold Supplier.
(3) Factory Price and OEM Provide.
(4) Credit guarantee combination: US $28000
(5) TUV ROHS ISO9001
(6)Samples:1~5 pcs free
Q3: How to ensure the quality of the product?
A3: The safety certification of UL/CQC/ROHS is a guarantee of quality.
100% QC inspection Before Shippment,Any problems we have after sales to help you to slove.
