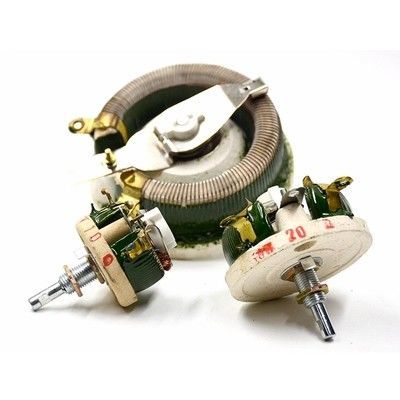

High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
Specifications
Resistance Tolerance :
±10%
Nominal Resistance Range :
1 to 10K ohm
Rated Power :
25W~500W
Brand Name :
BONENS
Model Number :
BC1
Place of Origin :
Sichuan, China
Terminal Resistance :
≤0.2%or1Ω
Insulation Resistance :
≥100mΩ（500Vdc）
Dimensions :
6mm x 9mm
Temperature Range :
-55℃~350℃
Resistance Error Error :
±10%
Packaging Type :
Paper package
Operating Temperature :
-55°~+400°
Mounting Type :
Through Hole
Termination Style :
Axial
Temperature Coefficient :
±100ppm/°C
Package/Case :
6mm Round
Head Mechanical Itinerary :
300°±1 Rotate smoothly
Power Rating :
0.25W
Dampness :
40±2°,RH:95%-98% 48h△R≤±3%R,R12100MΩ
Type :
Rotary wirewound potentiometer
Packaging Details :
Carton packaging
Description
Variable rheostat 50w
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
Data list:
Electrical Characteristics:
Range of nominal resistance.........1Ω~10KΩ
Resistance tolerance.........±10%
Terminal resistance.........≤0.2% or 1Ω
Insulation resistance.........≥100mΩ(500Vdc)
Max heating temperature.........350°
Environment Characteristics:
Rated power.......................50W-500W @ 85°,or @ 400
Temperature range.................-55°~400°
Vibration.........................10~200HZ, 40m/S2, 3h ΔR≤±3%R
Thermal cycles....................-55°,30min,85°,30min Cycle 3 times ,ΔR≤±3%R, R1≥500MΩ
Moisture..................40±2°,RH:95%-98% 48h ΔR≤±3%R, R1≥100MΩ
Collision............................60~100 times/min, 150m/S2, 4000 times
Installation size:
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Ceramic Variable Resistor 25W 50W BC1
Specification

Rated power(W)
A
B
F
BC1-25W
44
43
50
BC1-50W
66
43
75
BC1-100W
84
43
95
BC1-150W
106
48
120
BC1-300W
170
74
180
BC1-500W
210
60
230
BC1-50W/2
80
100
75
BC1-100W/2
97
112
95
BC1-150W/2
135
120
120
BC1-300W/2
175
165
180
BC1-500W/2
220
165
230
BC1-150W/3
170
220
120
BC1-300W/3
175
275
180
BC1-500W/3
220
275
230
