1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor

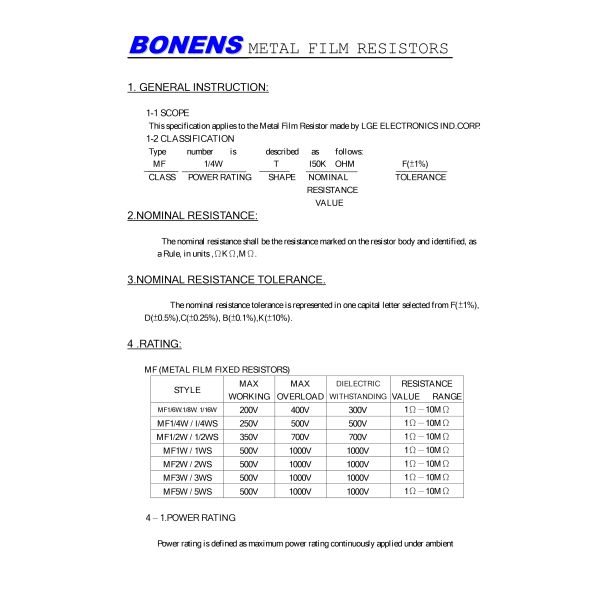

Specifications
Place of Origin :
Sichuan, China
Brand Name :
Bonens
Model Number :
Metal film resistor
Package / Case :
tape or bulk
Description :
Metal Film Resistor
Resistance :
1-10MΩ
Resistance Tolerance :
±10%
Insulation resistance :
Over 10Wn
Moisture load life :
+ (1.5%+0.05ft)
Resistance to soldering heat :
Over 95%
Terminal strength :
No evidence of damage
Dielectric withstanding voltage :
No evidence of damage
Technology :
Metal Film
Package Type :
Surface Mount
Composition :
Metal Film
Coating, Housing Type :
Not Applicable
Circuit Type :
Not Applicable
MOQ :
500000
Description

1/4W Throught Hole Mounting 5k 500k Metal Film Resistor

PARAMETER
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
WATTS
TYPE
L(mm)
W(mm)
H(mm)
POLY BOG
BOX(pcs)
1/6W .1/8W.1/16W
P
250
140
67
1000
20000
MOLDING
1/4W
P
250
140
67
500
10000
MOLDING
1/2W
P
250
140
67
500
5000
MOLDING
1W
P
250
140
67
200
2000
MOLDING
2W
P
250
140
67
200
1000
MOLDING
3W
P
250
140
67
100
1000
MOLDING
5W
P
250
140
67
100
1000
MOLDING
Recommend Products
Company Profile
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor
1/4W 5k-500k 1% Tolerance Metal Film Resistor Through Hole Mounting Fixed Resistor

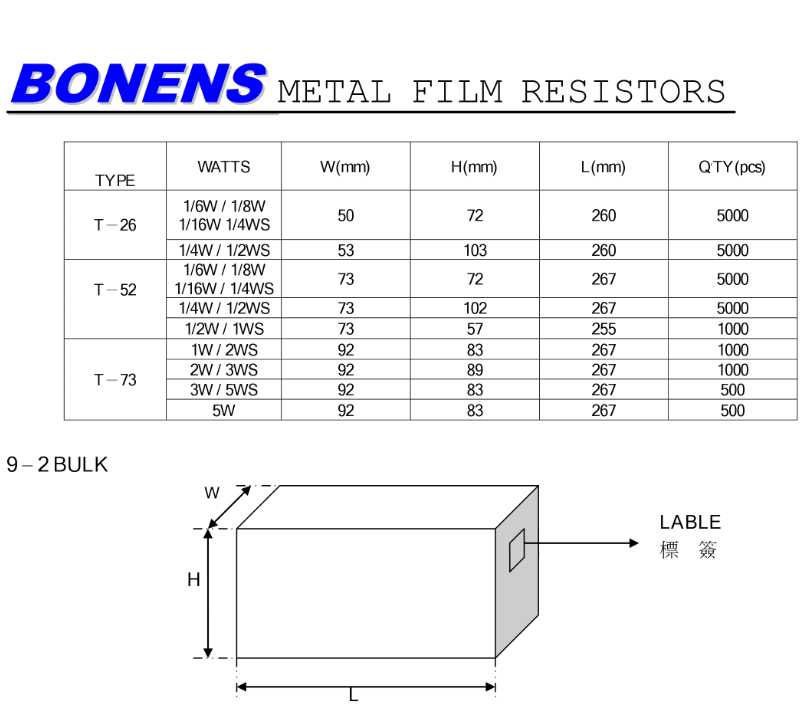

Product packaging
