Specifications
Place of Origin :
Sichuan, China
Brand Name :
BONENS
Model Number :
fuse resistor
MOQ :
1000
Resistance :
0.01 - 1000M
Resistance Tolerance :
5%, 1% or 5%
Power :
1W 2W 3W 4W 5W
Technology :
Carbon Film
Composition :
Wirewound
Max Working Voltage :
150V - 750V
Max Overload Voltage :
300V - 800V
Max Insulation Voltage :
250V - 1000V
Length :
6.0 - 52.0 mm
Diameter :
2.3 - 8.0 mm
Lead Diameter :
0.52 - 0.75 mm
Resistance Range :
0R01 - 33K
Type :
Fixed Resistor
Heat Dissipation :
Strong
Flame Retardant :
Yes
Description

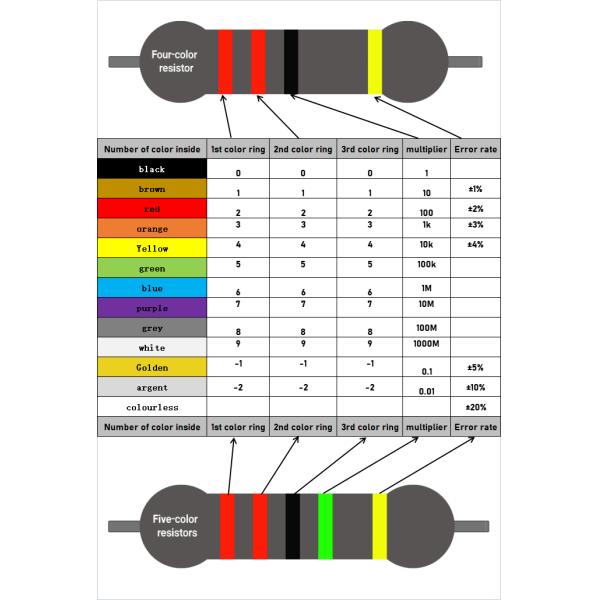

50k/50/10/100/400/2/5/1ohm Fuse Resistor Color Code
400 Ohm 1W Fuse Resistor with 5% Tolerance 400 Ohm 1W Fuse Resistor with 5% Tolerance
Product Overview

Fuse resistors provide circuit protection by steadily cutting off power supply when short circuits or near-short circuit current conditions occur. These components limit short circuit current to prevent damage to devices or power supply systems, containing potential damage to a small area.

Applications
  • Portable mobile devices (tablets, laptops)
  • High power devices and electric tools
  • Electric bicycles
  • Rechargeable lithium battery systems

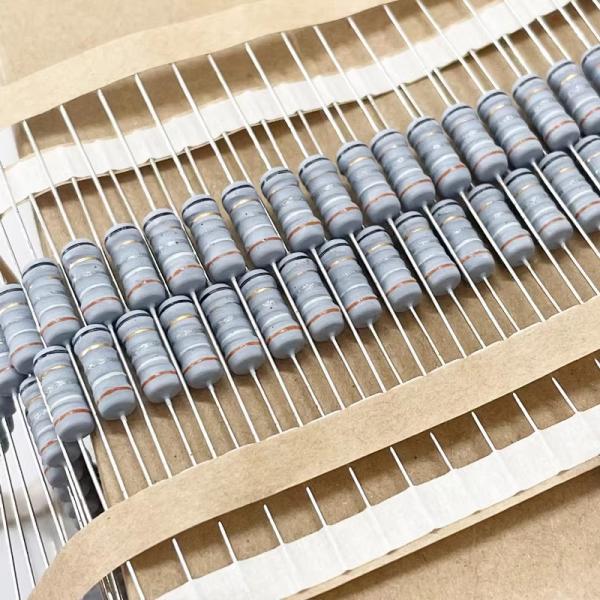

Product Images
400 Ohm 1W Fuse Resistor with 5% Tolerance 400 Ohm 1W Fuse Resistor with 5% Tolerance 400 Ohm 1W Fuse Resistor with 5% Tolerance 400 Ohm 1W Fuse Resistor with 5% Tolerance 400 Ohm 1W Fuse Resistor with 5% Tolerance 400 Ohm 1W Fuse Resistor with 5% Tolerance 400 Ohm 1W Fuse Resistor with 5% Tolerance
Wire-Wound Resistors

Wire-wound resistors serve multiple functions in electrical circuits including voltage reduction, current shunting, load management, feedback transmission, and matching. They are essential components in power supply circuits, oscillation circuits, and pulse formation circuits.

Key Features
  • Dual function as fuse and resistor
  • Overcurrent protection with thermal fusing
  • Strong heat dissipation capacity
  • Safety and flame retardant properties
  • High performance with low resistance
  • Compact size with large load capacity
Applications
  • Home appliances
  • Medical equipment
  • Automotive industry
  • Railway and aviation systems
  • defense equipment and instruments
400 Ohm 1W Fuse Resistor with 5% Tolerance
Product Parameters
400 Ohm 1W Fuse Resistor with 5% Tolerance
Winding Resistance Specifications
Type Pack Quantity Box Quantity Available Values
0.25W 1000/pack 5000/box 0R22, 1R, 3R3, 4R7, 10R, 20R, 22R, 27R, 30R, 47R, 51R, 68R
0.5W 500/pack 2000/box 0R1, 0R22, 0R33, 0R39, 0R47, 0R5, 1R, 2R, 2R2, 3R, 3R3, 3R6, 3R9, 4R7, 5R1, 5R6, 6R8, 8R2, 10R, 12R, 15R, 22R, 27R, 30R, 33R, 39R, 47R, 51R, 68R, 100R
1W 200/pack 1000/box 0R1, 0R12, 0R15, 0R18, 0R20, 0R22, 0R33, 0R47, 0R5, 1R, 1R5, 2R, 2R2, 3R, 3R3, 3R6, 3R9, 4R7, 5R1, 5R6, 6R8, 8R2, 10R, 12R, 15R, 20R, 22R, 27R, 30R, 33R, 39R, 47R, 51R, 56R, 62R, 68R, 75R, 100R, 0R05 5%
2W 200/pack 1000/box 0R1, 0R15, 0R22, 0R33, 1R, 2R, 2R2, 2R4, 4R7, 5R1, 10R, 20R, 22R, 27R, 30R, 33R, 36R, 39R, 43R, 47R, 51R, 68R, 75R, 82R
Dimensions and Voltage Performance
Part No. Power Resistance Range Dimensions (mm) Max. Working Voltage Max. Overload Voltage Max. Insulation Voltage
KNR014 1/4W 0R5-750R 6.0×2.3×0.52 150V 300V 250V
KNR012 1/2W 0R01-1K5 9.0×3.2×0.58 150V 400V 250V
KNR01B 1W 0R01-1K5 9.0×3.2×0.75 150V 400V 250V
KNR02B 2W 0R01-3K3 11.0×4.5×0.75 250V 400V 350V
KNR03B 3W 0R017K7 15.0×5.0×0.75 350V 600V 500V
KNR04B 4W 0R01-8K2 17.0×6.0×0.75 350V 600V 500V
KNR05B 5W 0R0l -8K2 17.0×6.0×0.75 350V 600V 500V
KNR06B 6W 0R02H2K 25.0×8.0×0.75 500V 600V 750V
KNR07B 7W 0R03~WK 31.0×8.0×0.75 500V 600V 750V
KNR08B 8W 0R03~27K 41.0×8.0×0.75 500V 600V 750V
KNR09B 9W 0R04~33K 52.0×8.0×0.75 750V 800V 1000V
KNR10B 10W 0R04〜33K 52.0×8.0×0.75 750V 800V 1000V
