Specifications
Type :
Surface mount flange resistor
Application :
High power RF
Rated Power :
800W (70°C)
Resistance :
1~500Ω
Place of Origin :
Sichuan, China
Brand Name :
BONENS
Model Number :
RIG
MOQ :
100
Resistance Tolerance :
±5%
Technology :
Carbon Film
Package Type :
Surface Mount
Power :
1~1000W
Frequency Range :
0~2GHz
Standing Wave Ratio :
1.2~1.3
Insulation Resistance :
≥ 1GΩ
Withstand Voltage :
500V/1 mm
Temperature Range :
-55°C~+165°C
TCR :
≤±200PPM/°C
Terminal Strength :
10N, 5S
Solderability :
240℃, 3s
Temperature Shock :
ΔR≤±5%R
Description
High Power SMD RF Resistor Series

2W SMD RIG 100 50 Ohm high power resistor variable resistor chip resistor with power ratings from 50W to 1000W

1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
Key Features
  • Small size with high power handling capability
  • Stable and reliable performance
  • Easy installation and integration
  • Wide range of power ratings available
Physical Characteristics
  • Terminal strength (10N, 5S): No loose and fall off
  • Solderability (240℃, 3s): Tin layer covering area of 95%
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications 1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications 1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications 1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications 1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
Electrical Characteristics
  • Range of nominal resistance: 1Ω-500Ω
  • Resistance tolerance: ±5%
  • Frequency range: 0-2GHz
  • Standing wave ratio: 1.2-1.3
  • Insulation resistance: ≥ 1GΩ
  • Withstand voltage: 500V/1 mm (Substrate thickness)
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
Environmental Characteristics
Parameter Specification
Rated power 1-1200W (70°C)
Temperature range -55°C to +165°C
TCR ≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times) ΔR≤±5%R
Moisture proof (GJB306A-96-Method106) ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h) ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h) ΔR≤±5%R
Load life (96) ΔR≤±5%
Collision ΔR≤±3%R

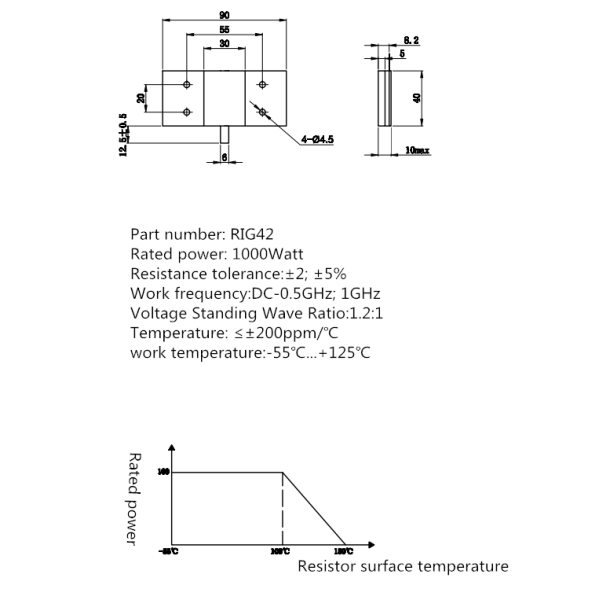

Outline Structure & Technical Parameters
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications 1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
Complete Technical Specifications
Category Parameter Value
Electrical Characteristics Range of nominal resistance 1Ω-500Ω
Resistance tolerance ±5%
Frequency range 0-1GHz
Standing wave ratio 1.2-1.3
Insulation resistance ≥ 1GΩ
Withstand voltage 500V/1 mm (Substrate thickness)
Environmental Characteristics Rated power 800W (70°C)
Temperature range -55°C to +165°C
TCR ≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times) ΔR≤±5%R
Moisture proof (GJB306A-96-Method106) ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h) ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h) ΔR≤±5%R
Load life (96) ΔR≤±5%
Collision ΔR≤±3%R
Physical Characteristics Terminal strength (10N, 5S) No loose and fall off
Solderability (240℃, 3s) Tin layer covering area of 95%
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
Product Applications

RIG RF resistance, microstrip resistor, microwave attenuator applications. BONENS high power RF resistor series includes 1000W, 2000W, 800W, 500W, 250W, 100W, 60W, 40W, 30W flange resistor in 50 and 100 ohm configurations.

Send your message to this supplier
Send Now

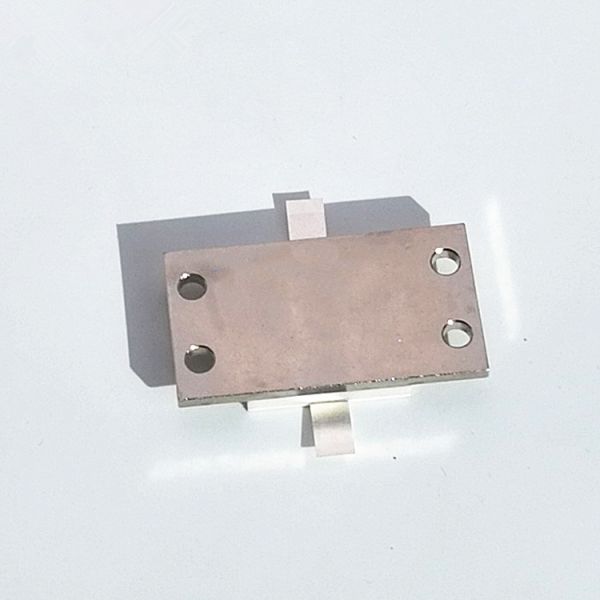

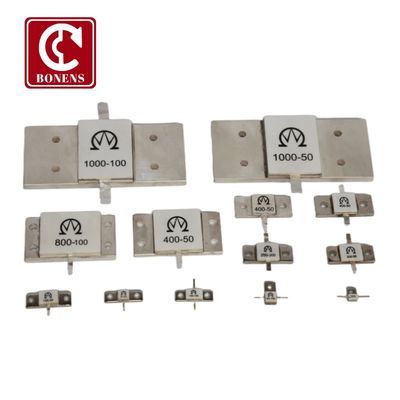

1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications

Ask Latest Price
Watch Video
Product Detail
Type :
Surface mount flange resistor
Application :
High power RF
Rated Power :
800W (70°C)
Resistance :
1~500Ω
Place of Origin :
Sichuan, China
Brand Name :
BONENS
Contact Supplier
video
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications
1000W 50 Ohm RF Resistor Surface Mount Flange Resistor High Power Applications

Sichuan Qixing Electronics Co., Ltd.

Verified Supplier
4 Years
sichuan, chengdu
Since 2005
Business Type :
Manufacturer, Trading Company
Main Products :
Trimmer Potentiometers, Wirewound Resistor, Braking Resistors
Total Annual :
8000000-10000000
Employee Number :
100~120
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products RF Resistor
MachineU China Products Electrical Equipment & Supplies
Contact Supplier
Submit Requirement
