Specifications
Place of Origin :
China
Brand Name :
BONENS
Model Number :
RX20
MOQ :
50
Resistance Range :
1R~50KR
Resistance Tolerance :
±5%
Temperature Coefficient :
±200PPM/℃
Rated Power :
10W~500W
Operating Temperature :
-55℃~ +155℃
Type :
Fixed Resistor
Technology :
Wirewound
Package Type :
Through Hole
Composition :
Wirewound
Coating Type :
Glazed
Features :
High power
Lead Style :
See product details
Size Dimension :
See product details
Height Seated :
See product details
Description
BONENS RX20 Glazed Ceramic Resistor
High-power wirewound resistors with 5% tolerance and 200PPM/°C temperature coefficient, available in power ratings from 10W to 500W.
Product Images
BONENS RX20 Glazed Ceramic Wirewound Resistor 10W-200W Power with 5% Tolerance and 200PPM/℃ Temperature Coefficient BONENS RX20 Glazed Ceramic Wirewound Resistor 10W-200W Power with 5% Tolerance and 200PPM/℃ Temperature Coefficient BONENS RX20 Glazed Ceramic Wirewound Resistor 10W-200W Power with 5% Tolerance and 200PPM/℃ Temperature Coefficient BONENS RX20 Glazed Ceramic Wirewound Resistor 10W-200W Power with 5% Tolerance and 200PPM/℃ Temperature Coefficient BONENS RX20 Glazed Ceramic Wirewound Resistor 10W-200W Power with 5% Tolerance and 200PPM/℃ Temperature Coefficient
Technical Specifications
Model Number RX20
Type Fixed Resistor
Brand Name BONENS
Rated Power 10W to 500W
Resistance Range 1Ω to 50kΩ
Technology Wirewound
Package Type Through Hole
Resistance Tolerance ±5% (J)
Temperature Coefficient ±200PPM/°C
Operating Temperature -55°C to +155°C
Coating/Housing Type Glazed Ceramic
Applications Brake systems, electronic communication products, instrument measuring appliances, and more
Key Features
  • High power handling capability
  • Glazed ceramic coating for durability
  • Wide resistance range from 1Ω to 50kΩ
  • Stable performance across temperature range
  • Through-hole mounting for easy installation
Manufacturer Profile
Sichuan Qixing Electronics Co., Ltd. specializes in manufacturing high-power resistors, wire-wound potentiometers, trimmer potentiometers, rotary carbon potentiometers, and precision components. With ISO9001 and ISO2000 quality control systems, the company serves both civilian and defense industries.

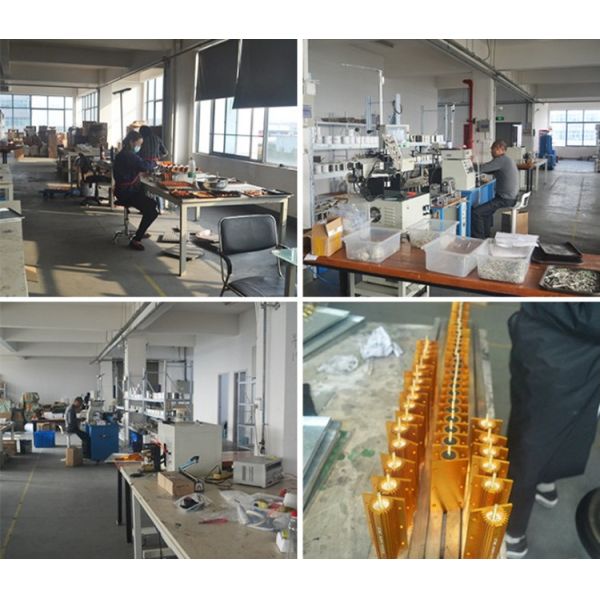

Company Images
BONENS RX20 Glazed Ceramic Wirewound Resistor 10W-200W Power with 5% Tolerance and 200PPM/℃ Temperature Coefficient BONENS RX20 Glazed Ceramic Wirewound Resistor 10W-200W Power with 5% Tolerance and 200PPM/℃ Temperature Coefficient BONENS RX20 Glazed Ceramic Wirewound Resistor 10W-200W Power with 5% Tolerance and 200PPM/℃ Temperature Coefficient BONENS RX20 Glazed Ceramic Wirewound Resistor 10W-200W Power with 5% Tolerance and 200PPM/℃ Temperature Coefficient
The company employs 500 workers, including 56 professionals with extensive experience in potentiometer and high-power resistor manufacturing. Qixing provides comprehensive services including product design, development, OEM support, and after-sales service.
