Specifications
Place of Origin :
Sichuan, China
Brand Name :
BONENS
Model Number :
RIG42
MOQ :
100
Resistance Range :
1Ω~500Ω
Resistance Tolerance :
±5%
Material :
BeO and Cu
Operating Temperature :
-55℃~+125℃
Frequency Range :
0~2GHz
Standing Wave Ratio :
1.2~1.3
Insulation Resistance :
≥ 1GΩ
Withstand Voltage :
500V/1 mm
Terminal Strength :
10N,5S
Solderability :
240℃,3s
Rated Power :
20W-1000W (70°C)
Temperature Range :
-55°C~+165°C
TCR :
≤±150PPM/°C
Temperature Shock :
ΔR≤±5%R
Moisture Proof :
ΔR≤±5%R
Description
RIG42 High Power Flange RF Resistor Series
Professional-grade ceramic RF resistors offering power ratings from 20W to 1000W with resistance values ranging from 1Ω to 500Ω.
800W 100 Ohms Terminal
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance

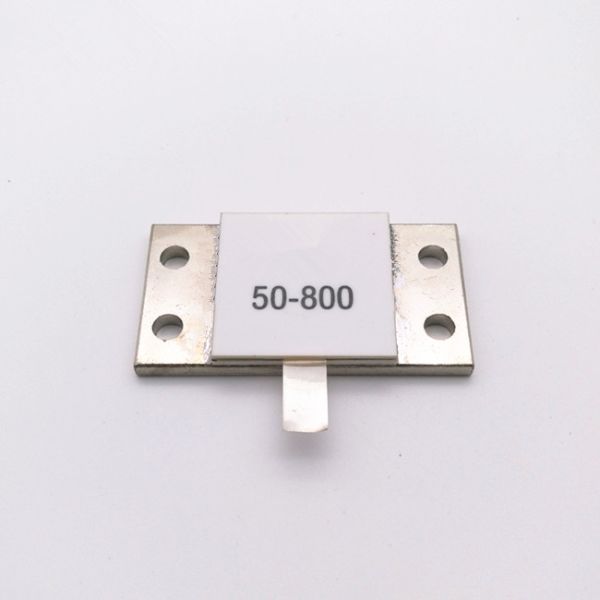

800W 50 Ohms Terminal
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
800W 50 Ohms Resistors
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance

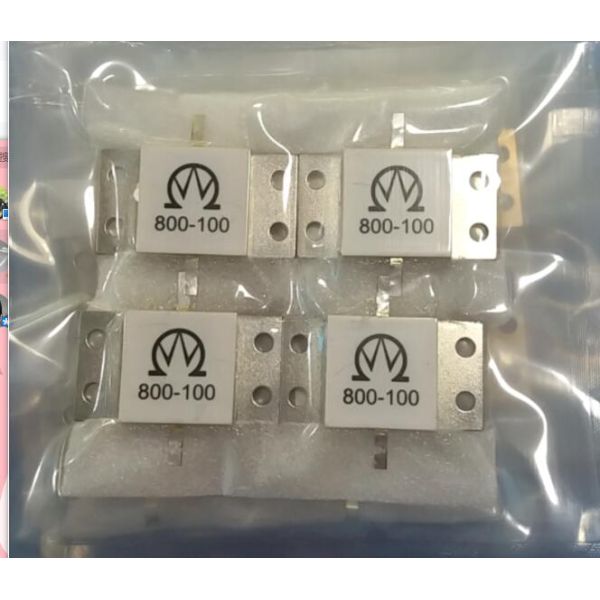

800W 100 Ohms Resistors
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
800W Terminal Dimensions
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
800W Resistors Dimensions
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
Product Features
  • Compact size with high power handling capability
  • Stable and reliable performance characteristics
  • Easy installation and mounting
  • Custom dimensions available upon request
Electrical Characteristics
  • Nominal resistance range: 1Ω-500Ω
  • Resistance tolerance: ±5%
  • Frequency range: 0-2GHz
  • Standing wave ratio: 1.2-1.3
  • Insulation resistance: ≥ 1GΩ
  • Withstand voltage: 500V/1mm (Substrate thickness)
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
Physical Characteristics
  • Terminal strength: 10N, 5S (No loose and fall off)
  • Solderability: 240℃, 3s (Tin layer covering area of 95%)
Environmental Characteristics
Parameter Specification
Rated Power 20W-1000W (70°C)
Temperature Range -55°C to +165°C
TCR ≤±150PPM/°C
Temperature Shock (-55°C/+125°C, 3 times) ΔR≤±5%R
Moisture Proof (GJB306A-96-Method106) ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h) ΔR≤±3%R, No mechanical damage
Test at Low Temperature (-55°C, 24h) ΔR≤±5%R
Load Life (96) ΔR≤±5%
Collision ΔR≤±3%R
Company Profile
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
Frequently Asked Questions
Who are we?
Established in 2005 and based in Sichuan, China, we serve global markets including Domestic Market (70%), Western Europe (8%), North America (5%), and other international regions. Our team consists of 51-100 professionals dedicated to manufacturing excellence.
How do we guarantee quality?
  • Pre-production samples provided before mass production
  • Final inspection conducted before every shipment
What products do we offer?
Potentiometers, Resistors, EMI Filters, Knobs, and Switches
Why choose us over other suppliers?
Since 2005, we have specialized in developing and manufacturing high-quality potentiometers, AC/DC noise filters, and ceramic power resistors, ensuring superior quality, excellent service, and competitive pricing.
What services do we provide?
  • Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA
  • Accepted Payment Currency: USD, EUR, CNY
  • Accepted Payment Types: T/T, L/C, MoneyGram, Western Union, Cash
  • Languages Spoken: English, Chinese
Send your message to this supplier
Send Now

RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance

Ask Latest Price
Watch Video
Product Detail
Place of Origin :
Sichuan, China
Brand Name :
BONENS
Model Number :
RIG42
MOQ :
100
Resistance Range :
1Ω~500Ω
Resistance Tolerance :
±5%
Contact Supplier
video
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance
RIG42 800W 50Ω High Power Ceramic RF Resistor with Flange Mount for Stable Performance

Sichuan Qixing Electronics Co., Ltd.

Verified Supplier
3 Years
sichuan, chengdu
Since 2005
Business Type :
Manufacturer, Trading Company
Main Products :
Trimmer Potentiometers, Wirewound Resistor, Braking Resistors
Total Annual :
8000000-10000000
Employee Number :
100~120
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products RF Resistor
MachineU China Products Electrical Equipment & Supplies
Contact Supplier
Submit Requirement
