Specifications
Place of Origin :
Sichuan, China
Brand Name :
BONENS
Model Number :
RIG
MOQ :
1
Package Case :
BeO
Resistance :
50ohms 100 ohms
Resistance Tolerance :
±5%(J)
Working Frequency :
DC-1GHZ
Standing Wave Ratio :
1.20 : 1
Temperature Coefficient :
±150PPM/℃
Number of Pins :
1 pin or 2 pins
Operating Temperature :
-55℃~+165℃
Power :
800W
Insulation Resistance :
≥ 1GΩ
Withstand Voltage :
500V/1 mm
Terminal Strength :
10N,5S
Solderability :
240℃,3s
Rated Power :
1-1000W (70°C)
Frequency Range :
0~2GHz
Description

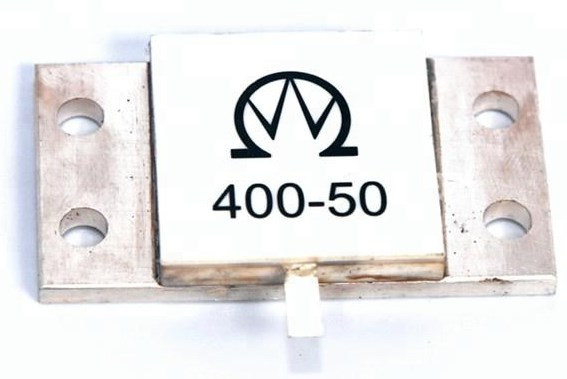

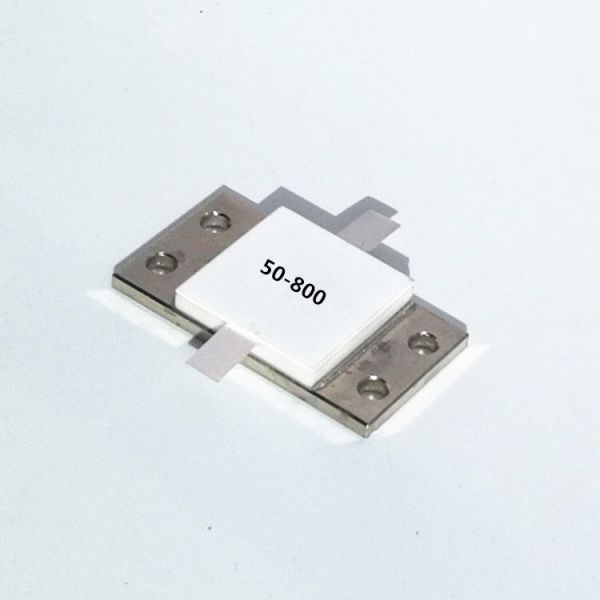

RIG High Power Flange Mount Terminations
High-performance RF resistors available in 50Ω and 100Ω configurations with power ratings up to 1000W. Features compact design, stable performance, and easy installation for industrial applications.
RIG High Power 800W RF Resistor with Flange Mount 50ohm 100ohm DC-1GHZ Frequency RIG High Power 800W RF Resistor with Flange Mount 50ohm 100ohm DC-1GHZ Frequency RIG High Power 800W RF Resistor with Flange Mount 50ohm 100ohm DC-1GHZ Frequency RIG High Power 800W RF Resistor with Flange Mount 50ohm 100ohm DC-1GHZ Frequency
Product Specifications
Electrical Characteristics
  • Nominal resistance range: 1Ω - 500Ω
  • Resistance tolerance: ±5%
  • Frequency range: 0-2GHz
  • Standing wave ratio: 1.2-1.3
  • Insulation resistance: ≥1GΩ
  • Withstand voltage: 500V/1mm (substrate thickness)
Physical Characteristics
  • Terminal strength: 10N, 5S (no loose and fall off)
  • Solderability: 240℃, 3s (tin layer covering area of 95%)
Environmental Characteristics
Parameter Specification
Rated power 1-1000W (70°C)
Temperature range -55°C to +165°C
TCR ≤±150PPM/°C
Temperature shock (-55°C/+125°C, 3 times) ΔR≤±5%R
Moisture proof (GJB306A-96-Method106) ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h) ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h) ΔR≤±5%R
Load life (96) ΔR≤±5%
Collision ΔR≤±3%R
Dimensions
RIG High Power 800W RF Resistor with Flange Mount 50ohm 100ohm DC-1GHZ Frequency RIG High Power 800W RF Resistor with Flange Mount 50ohm 100ohm DC-1GHZ Frequency
