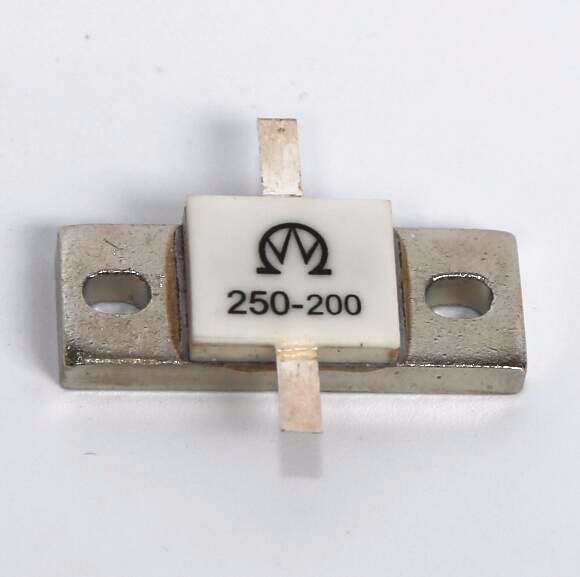

1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
1000W Flange Resistor with 1Ω-500Ω Range ±5% Tolerance and 1.2-1.3 Standing Wave Ratio for High Power Applications
Specifications
Place of Origin :
Sichuan, China
Brand Name :
Bonens
Model Number :
RIG42
MOQ :
100
Resistance range :
1Ω-500Ω
Resistance tolerance :
±5%
Standing wave ratio :
1.2-1.3
Frequency range :
0~2GHz
Insulation resistance :
≥ 1GΩ
Withstand voltage :
500V/1 mm
Rated power :
1-1200W (70°C)
Temperature range :
-55°C~+165°C
TCR :
≤±200PPM/°C
Temperature shock :
ΔR≤±5%R
Moisture proof :
ΔR≤±5%R
Vibration resistance :
ΔR≤±3%R, No mechanical damage
Low temperature test :
ΔR≤±5%R
Load life :
ΔR≤±5%
Collision resistance :
ΔR≤±3%R
Description

RIG RF resistance, microstrip resistor, microwave attenuator

BONENS high power rf resistor 1000w 2000W 800W 500W 250W 100W 60W 40W 30W flange resistor 50 100 ohm
Product Description

BONENS

Small size, high power, stable and
reliable performance, easy installation

Electrical Characteristics
Range of nominal resistance:
1Ω-500Ω
Resistance tolerance: ±5%
Frequency range: 0~2GHz
Standing wave ratio: 1.2~1.3
Insulation resistance: ≥ 1GΩ
Withstand voltage: 500V/1 mm (Substrate thickness)
Environment Characteristics


Physical Characteristics
Terminal strength(10N,5S): No loose and fall off
Solderability(240℃,3s):
Tin layer covering area of 95%



Rated power
1-1200W (70°C)
Temperature range
-55°C~+165°C
TCR
≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)
ΔR≤±5%
Collision
ΔR≤±3%R
Electrical Characteristics
Range of nominal resistance
1Ω~500Ω
Resistance tolerance
±5%
Frequency range
0~1GHz
Standing wave ratio
1.2~1.3
Insulation resistance
≥ 1GΩ
Withstand voltage
500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power
800W (70°C)
Temperature range
-55°C~+165°C
TCR
≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)
ΔR≤±5%
Collision
ΔR≤±3%R
Physical Characteristics
Terminal strength(10N,5S)
No loose and fall off
Solderability(240℃,3s)
Tin layer covering area of 95%
