High Power 1000W Flange Resistor Temperature Coefficient -55°C to +125°C Operating

Specifications

Resistance :

100 ohm

Resistance Tolerance :

±5%, ±2%,±5%

Operating Temperature :

-55°C to +125°C

Temperature Coefficient :

±300 ppm

Power :

1000W

Rated Power :

1000W

Nominal Resistance Range :

1Ω-500Ω

Frequency Range :

0~2GHz

Standing Wave Ratio :

1.2~1.3

Insulation Resistance :

≥ 1GΩ

Withstand Voltage :

500V/1 mm

Terminal Strength :

10N,5S

Solderability :

240℃,3s

Temperature Shock :

ΔR≤±5%R

Vibration Resistance :

ΔR≤±3%R

Place of Origin :

Sichuan, China

Brand Name :

BONENS

Model Number :

RIG

MOQ :

Tolerance :

±5%, ±2%

Type :

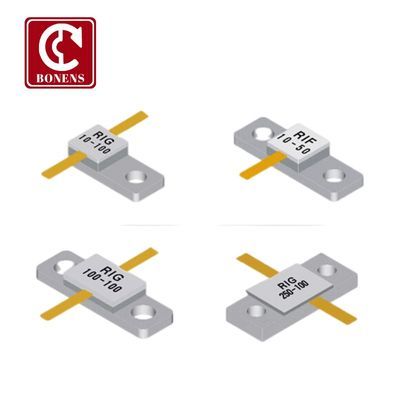

Ceramic flange resistor

Description

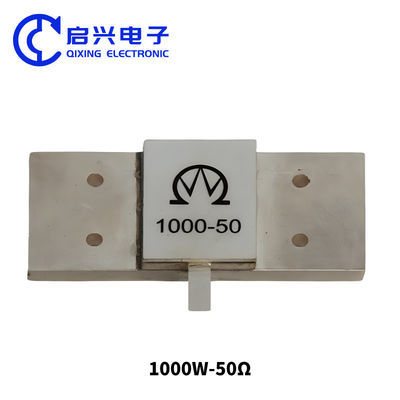

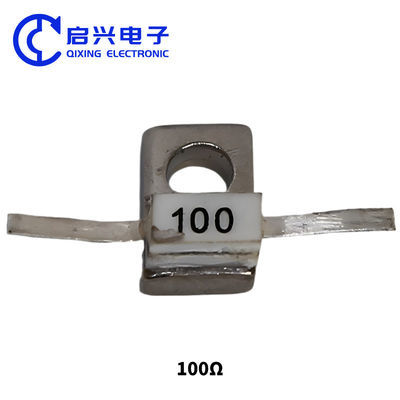

High Power 1000W Flange Resistor 100 Ohm High Intensity Ceramic Resistor

Product Features

Small size with high power capacity
Stable and reliable performance
Easy installation process
High intensity ceramic construction

Electrical Characteristics

Range of nominal resistance: 1Ω-500Ω

Resistance tolerance: ±5%

Frequency range: 0~2GHz

Standing wave ratio: 1.2~1.3

Insulation resistance: ≥ 1GΩ

Withstand voltage: 500V/1 mm (Substrate thickness)

Physical Characteristics

Terminal strength (10N,5S): No loose and fall off

Solderability (240℃,3s): Tin layer covering area of 95%

Environment Characteristics

Rated power	1-1200W (70°C)
Temperature range	-55°C~+165°C
TCR	≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times)	ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)	ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)	ΔR≤±5%R
Load life (96)	ΔR≤±5%
Collision	ΔR≤±3%R
