Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Specifications
Place of Origin :
Sichuan, China
Brand Name :
China
Model Number :
RIG-250W
Packaging Type :
plastic pallet packaging
Application :
Electronic Communications
Package / Case :
Copper nickel plated heat sink
Series :
Flange resistor
Features :
small size & High power
Size / Dimension :
25*10*5.5mm
Description :
RF Termination Resistor
Resistance :
1~100 ohms
Resistance Tolerance :
±5%(J)
Common resistance :
50R/100R
size of pin(mm) :
7*2.5( can make your size)
working frequency :
DC-1GHZ
Standing wave ratio :
1.20 : 1
Height - Seated (Max) :
5.5mm max
Temperature Coefficient :
≤±200ppm/℃
Operating Temperature :
-55°C~+165°C
Number of Pins :
1 pin or 2 pins
D/C :
2024
MOQ :
100
Description
Product Description

RFG RFR RFT 5W 10W 20W 50W 10W 150W 250W 400W 800W 1000W 50R 100R 50 ohm 100 ohm Power RF TERMINATION RESISTOR.
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range

BONENS

Small size, high power, stable and
reliable performance, easy installation

Electrical Characteristics
Range of nominal resistance:
1Ω-500Ω
Resistance tolerance: ±5%
Frequency range: 0~2GHz
Standing wave ratio: 1.2~1.3
Insulation resistance: ≥ 1GΩ
Withstand voltage: 500V/1 mm (Substrate thickness)
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range
Flange Mount RF Resistor with 1~100 Ohms Resistance ±5% Tolerance and DC-1GHZ Frequency Range


Physical Characteristics
Terminal strength(10N,5S): No loose and fall off
Solderability(240℃,3s):
Tin layer covering area of 95%



Environment Characteristics
Rated power
1-1200W (70°C)
Temperature range
-55°C~+165°C
TCR
≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)
ΔR≤±5%
Collision
ΔR≤±3%R

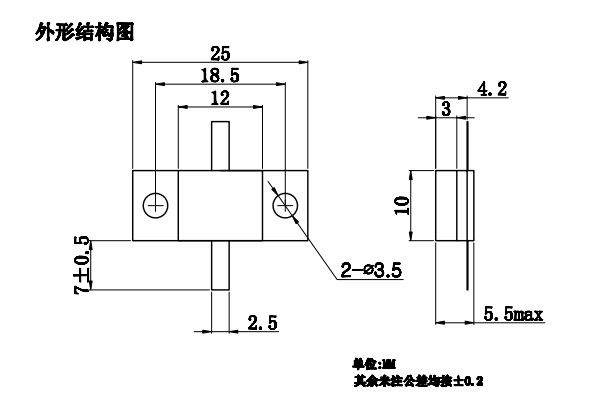

Outline structure drawing
