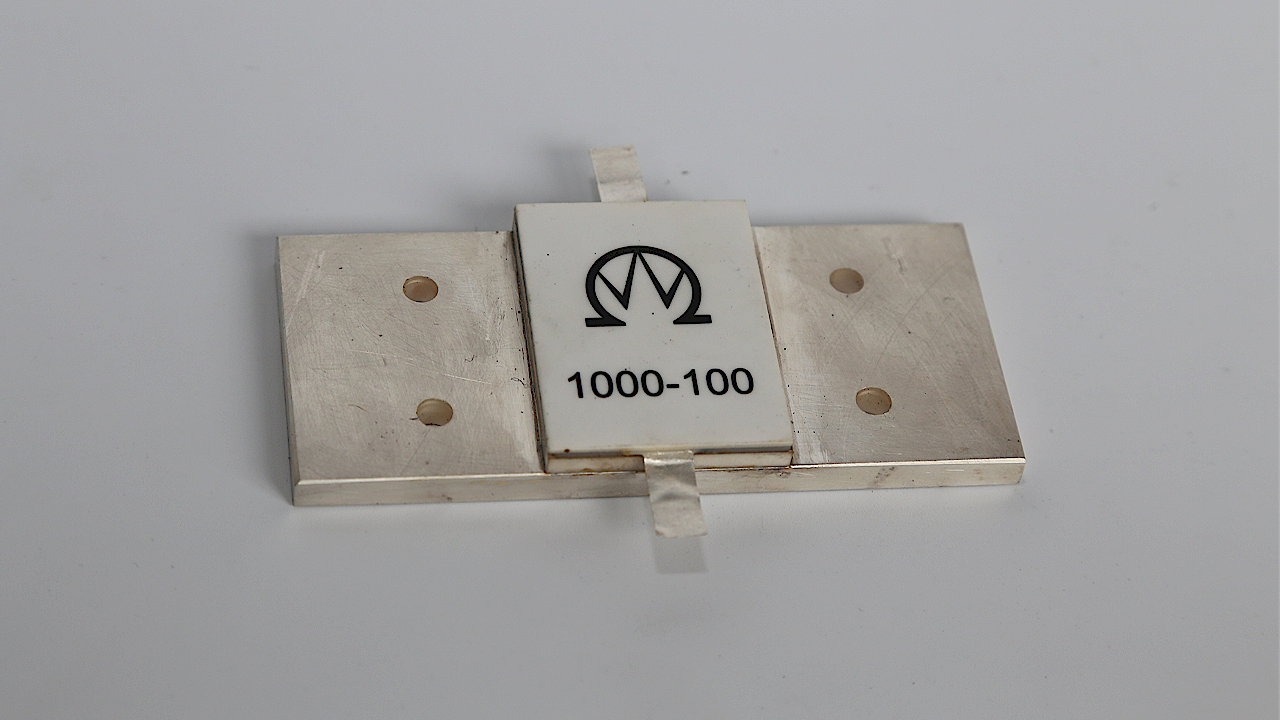

High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
Specifications
Place of Origin :
Sichuan, China
Brand Name :
BONENS
Model Number :
RIG
Specification :
800w~1200w
Packaging Type :
boxed
Package / Case :
plastic bag
Description :
Terminals 10ohm 50ohm rf resistor
Resistance :
1 ~500Ω, 1 ~500Ω
Resistance Tolerance :
±5%
item name :
RIG High power Resistors RF resistor 1000 watt 50 ohm 100 ohm
Technology :
Ceramic Composition
Package Type :
Package Type
Temperature Coefficient :
±300*10-6/°C
Operating Temperature :
-55°C~+165°C
Power (Watts) :
1W-1200W
Rated Power :
1~1200W
MOQ :
100
Description
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
Product Description
100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor picture
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor drawing

All RF flange resistor can do with one terminal or Two terminals

High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
100W one terminal resistor drawing
High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
150W two terminals rf resistor drawing

High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
250W 10ohm 50ohm two terminals rf resistor drawing

High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
400W 10ohm 50ohm two terminals rf resistor drawing

High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
500W 10ohm 50ohm one terminals rf resistor drawing

High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
600w 10ohm 50ohm one terminals rf resistor drawing

High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
800W 10ohm 50ohm two terminals rf resistor drawing

High Power RF Flange Resistor 1200W with Ceramic Composition and Wide Operating Temperature Range -55°C to +165°C
1000W 10ohm 50ohm One terminals rf resistor drawing

Specification
100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor Parameters
Electrical Characteristics
Range of nominal resistance
1 ~500Ω
Range of nominal resistance
±5%
Frequency range
0~2GHz
Standing wave ratio
1.2~1.3
Insulation resistance
≥ 1GΩ
Withstand voltage
500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power
1~1200W (70°C)
Temperature range
-55°C~+165°C
TCR
±300×10-6/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)
ΔR≤±5%
Collision
ΔR≤±3%R
Physical Characteristics
Terminal strength(10N,5S)
No loose and fall off
Solderability(240℃,3s)
Tin layer covering area of 95%
