Specifications
Standing Wave Ratio :
1.2-1.3
Place of Origin :
Sichuan, China
Brand Name :
BONENS
Model Number :
RIG41B-800W-50R
Specification :
800W 50 ohms
Packaging Type :
1pc/bag
Application :
communication
Package / Case :
Pure copper plate nickel plated
Series :
rf resistor
Features :
high power with small size

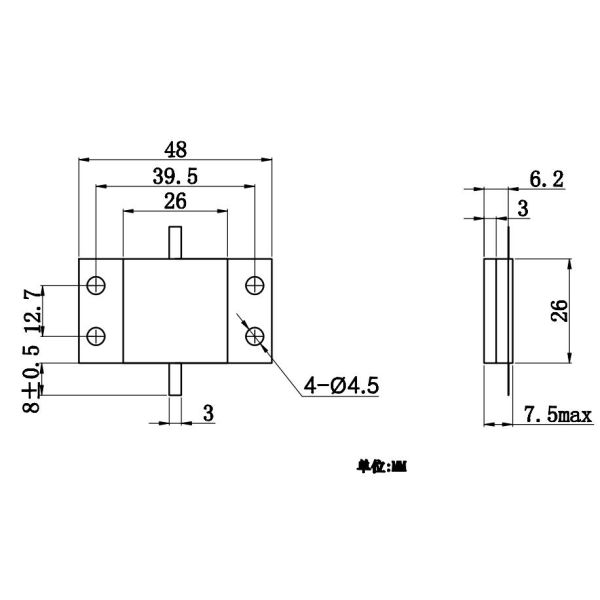

Size / Dimension :
48*26
Description :
flange mount resistor
Resistance :
50 ohm
Resistance Tolerance :
±5%
Product Name :
800W 50 ohm RF terminal
Key word :
800W RF resistor
type :
RF resistor
Power :
800W
Substrate :
BeO
frequency :
0~2GHZ
Standing wave :
1.2-1.3
Quality :
high quality
Certificates :
CE RoHS ISO9001
Service :
ODM OEM
MOQ :
100
Rated Power :
800W
Frequency :
0-2GHz
Tolerance :
±5%
Description
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
Specification
Electrical Characteristics
Range of nominal resistance
50Ω
Resistance tolerance
±5%
Frequency range
0~1GHz
Standing wave ratio
1.2~1.3
Insulation resistance
≥ 1GΩ
Withstand voltage
500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power
1000W (70°C)
Temperature range
-55°C~+165°C
TCR
≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)
ΔR≤±5%
Collision
ΔR≤±3%R
Physical Characteristics
Terminal strength(10N,5S)
No loose and fall off
Solderability(240℃,3s)
Tin layer covering area of 95%

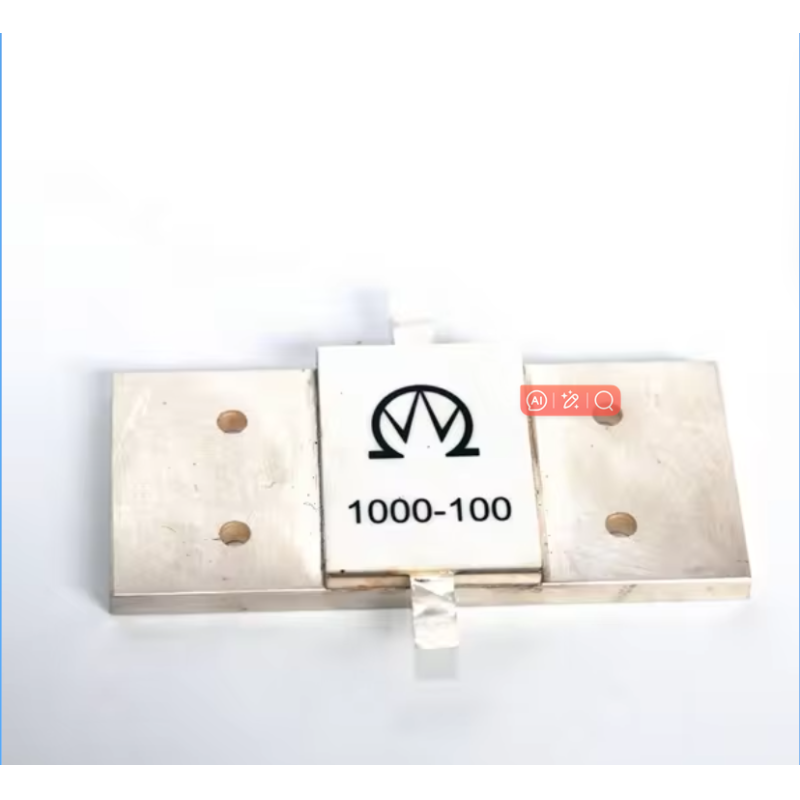

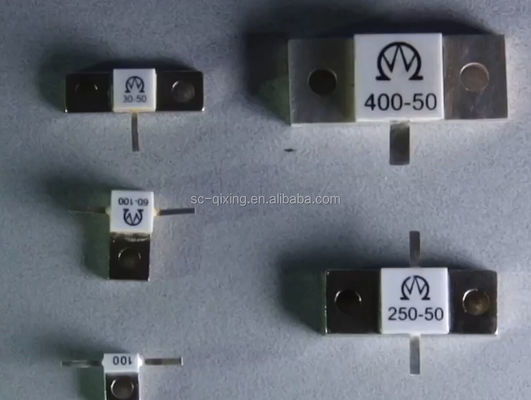

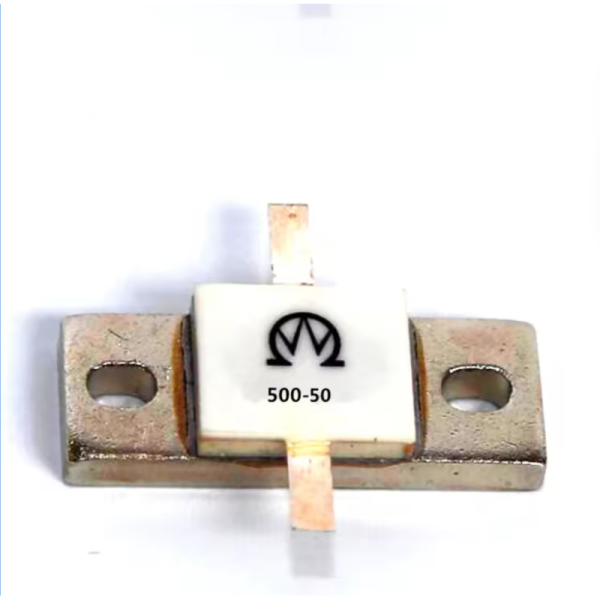

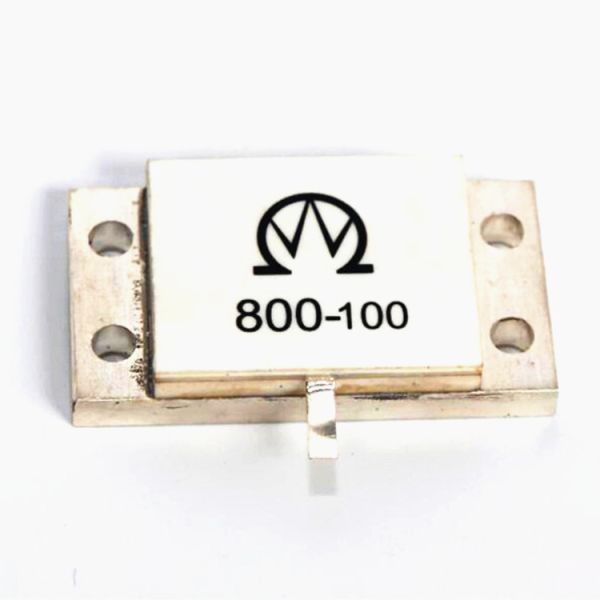

Product Description
800W 50 ohm terminals rf flange mount resistor
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
Company Profile
Sichuan Qixing Electronics co.ltd.established in 2005.0ur company specialized in manufacturingpotentiometer,resistor,EMl flter,dial knob and so on .../e enforce lsO9001, 1s02000 quality controlsystems strictly. Our products are widely used in electronic communication products, instrumentmeasuring appliances, cable TV equipments, electrician products, color television, color console, videoand audio products and many other products.
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
Why Choose Us
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
800W 50 Ohm RF Flange Mount Resistor 0 to 2GHz Frequency 1.2 to 1.3 Standing Wave
7.FAQ
1. Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand. All products are characterized by high performance and competitive
price.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Potentiometer,Resistor,EMI Filter,Knob,Switch
4. why should you buy from us not from other suppliers?
Our company is establsihed in 2005 ,which mainly develops and manufactures different types of potentiometer,ac dc noise filter,and
ceramic power resistor and is a professional manufacturer ensuring high quality, best services and best price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
