Specifications
Place of Origin :
sichuan,china
Brand Name :
BONENS
Model Number :
RIG42C
Package / Case :
plastic bag
Description :
800w variable power resistor rheostat
Resistance :
1Ω-500Ω
Resistance Tolerance :
±5%
item name :
RIG High power Resistors RF resistor 1000 watt 50 ohm 100 ohm
type of company :
manufacturer
type :
RF resistor
Protection of potentiometer :
ISO9001-2008 TUV ROHS
delivery :
fast delivery
Type :
Fixed Resistor
Supplier Type :
ODM
Technology :
Ceramic Composition
Package Type :
Throught Hole
MOQ :
100
Description
Product Description

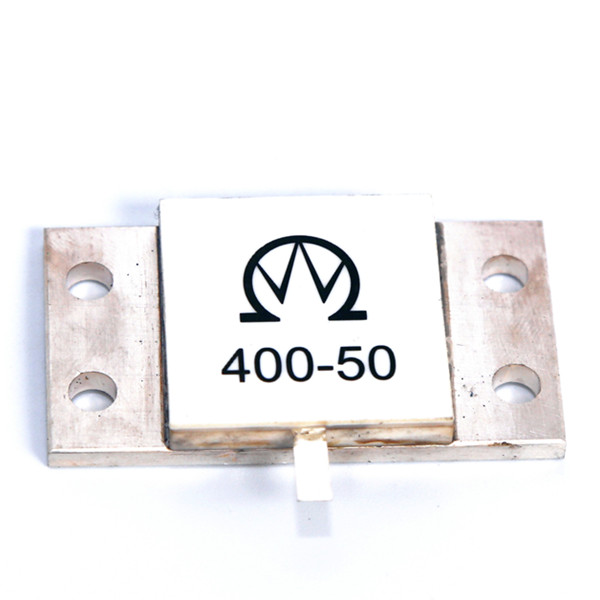

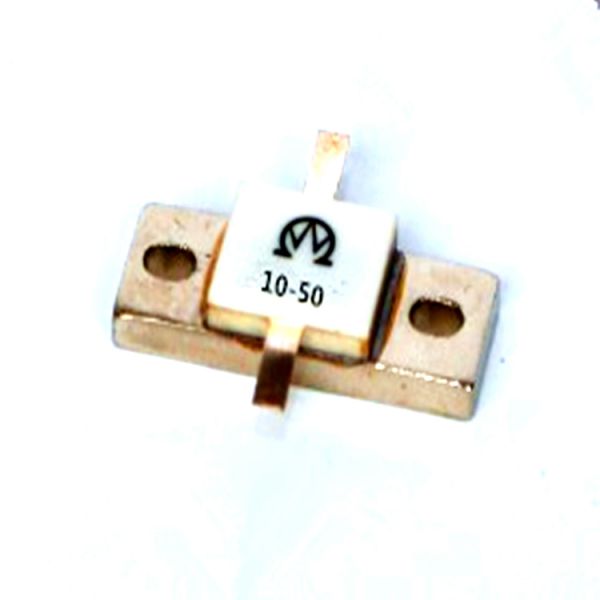

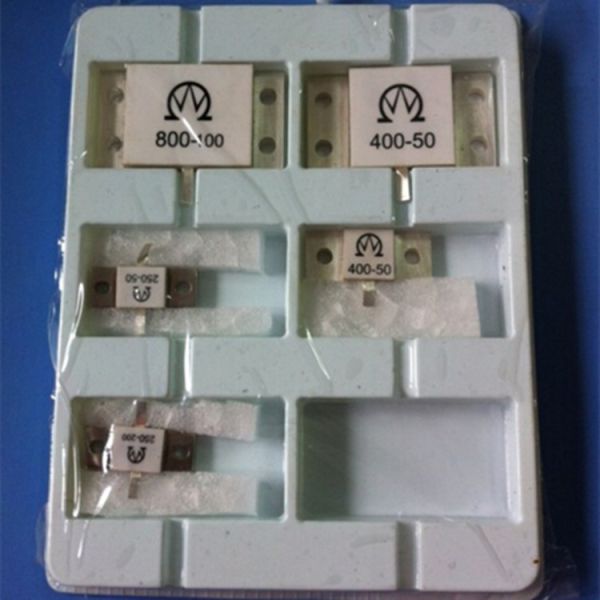

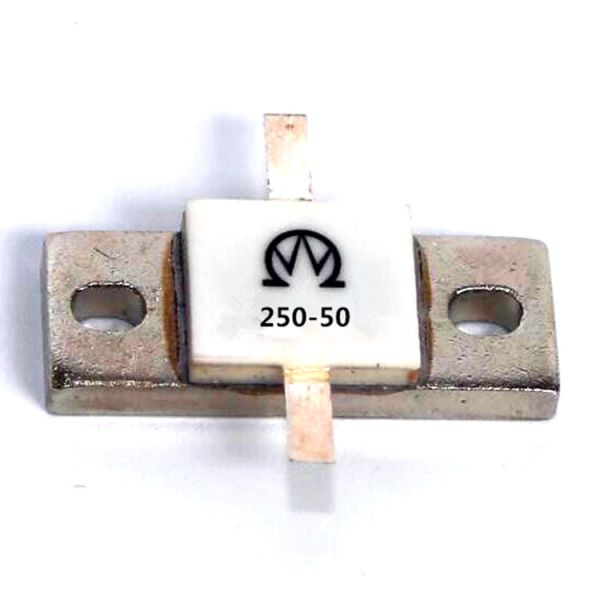

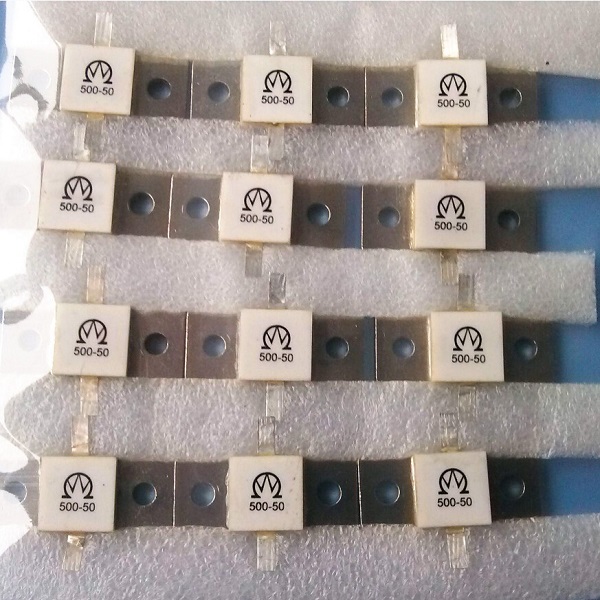

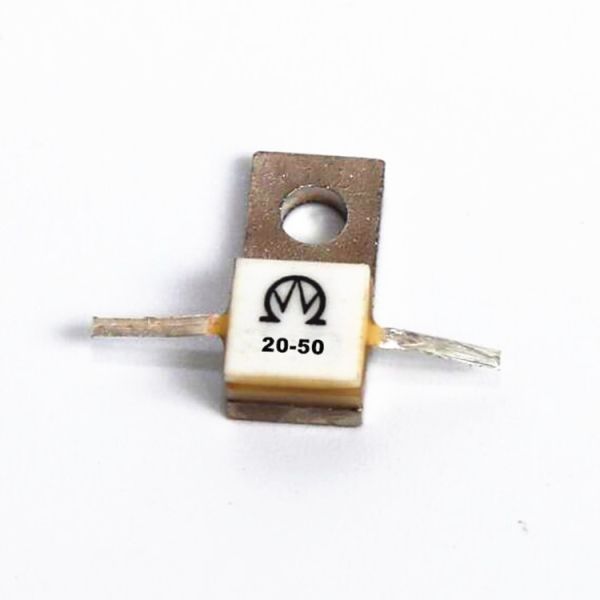

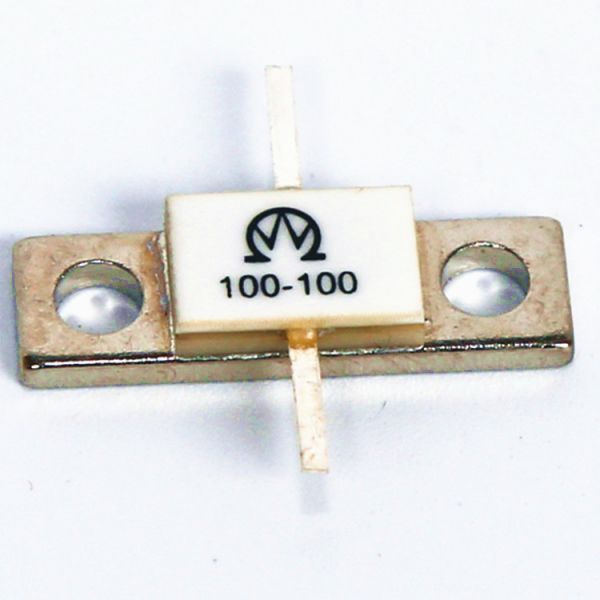

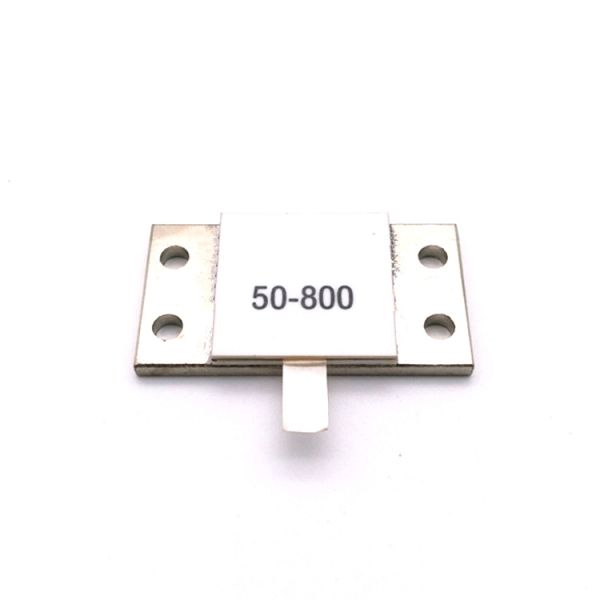

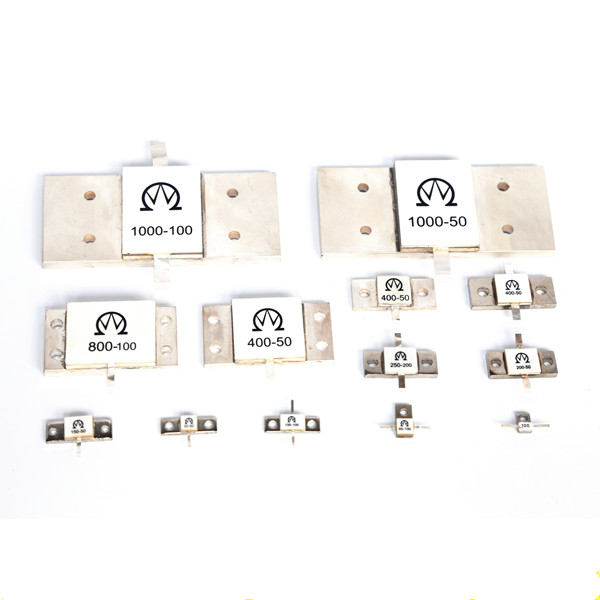

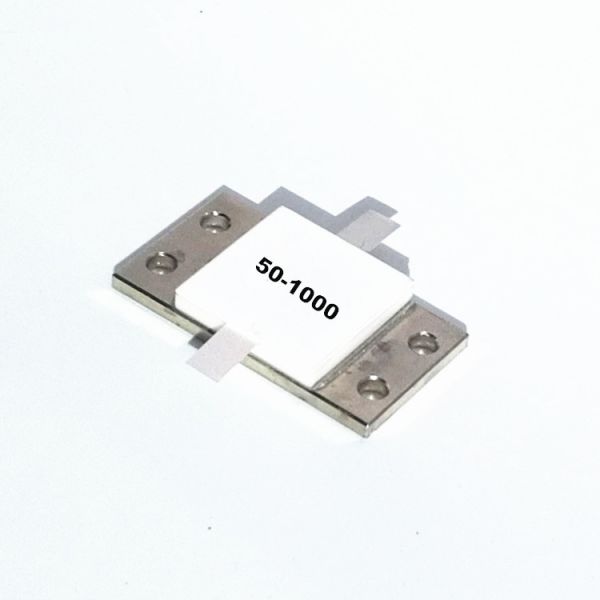

100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor picture
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor drawing

All RF flange resistor can do with one terminal or Two terminals

Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification

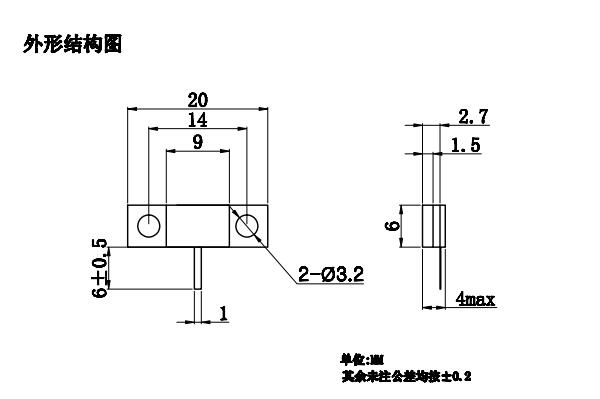

100W one terminal resistor drawing
Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification

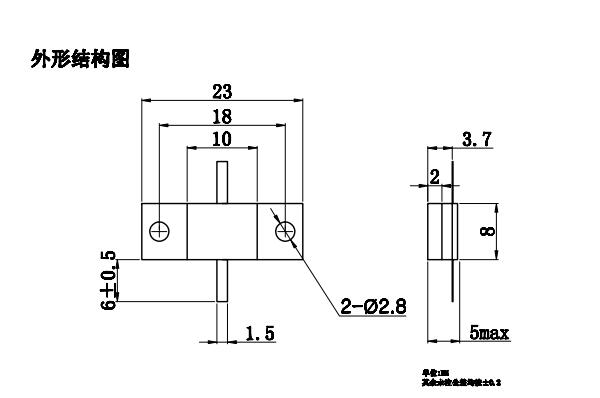

150W two terminals rf resistor drawing

Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
250W 10ohm 50ohm two terminals rf resistor drawing

Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
400W 10ohm 50ohm two terminals rf resistor drawing

Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
500W 10ohm 50ohm one terminals rf resistor drawing

Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
600w 10ohm 50ohm one terminals rf resistor drawing

Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
800W 10ohm 50ohm two terminals rf resistor drawing

Ceramic Composition RF Resistor with Fast Delivery and ISO9001-2008 TUV ROHS Certification
1000W 10ohm 50ohm One terminals rf resistor drawing

Specification
100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor Parameters
Electrical Characteristics
Range of nominal resistance
1 ~500Ω
Range of nominal resistance
±5%
Frequency range
0~2GHz
Standing wave ratio
1.2~1.3
Insulation resistance
≥ 1GΩ
Withstand voltage
500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power
1~1200W (70°C)
Temperature range
-55°C~+165°C
TCR
±300×10-6/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)
ΔR≤±5%
Collision
ΔR≤±3%R
Physical Characteristics
Terminal strength(10N,5S)
No loose and fall off
Solderability(240℃,3s)
Tin layer covering area of 95%
