Specifications
Operating Temperature :
-55℃~+125℃
Place of Origin :
Sichuan, China
Brand Name :
BONENS
Model Number :
RIG41-1000W
Package / Case :
plasitc keyboard
Description :
Rf flange 1000W Resistor
Resistance :
50Ω
Resistance Tolerance :
±5%
frequency :
DC-3.5GHZ
Package :
Plastic
Delivery Time :
5~7 days
Certificates :
RoHS TUV ISO9001
Temperature Coefficient :
≤±200ppm/℃
Size / Dimension :
90*40*8.2
Number of Pins :
1
D/C :
2022
Rated Power :
1000w
MOQ :
100
Description
Manufacturer RIG high power resistors 1000W Resistor
Product Description
RIG High Power RF Resistor 1000W DC to 3.5GHz Frequency Range -55°C to +125°C Operating
BONENS
Small size, high power, stable and
reliable performance, easy installation

Electrical Characteristics
Range of nominal resistance:
1Ω-500Ω
Resistance tolerance: ±5%
Frequency range: 0~2GHz
Standing wave ratio: 1.2~1.3
Insulation resistance: ≥ 1GΩ
Withstand voltage: 500V/1 mm (Substrate thickness)
RIG High Power RF Resistor 1000W DC to 3.5GHz Frequency Range -55°C to +125°C Operating
RIG High Power RF Resistor 1000W DC to 3.5GHz Frequency Range -55°C to +125°C Operating


Physical Characteristics
Terminal strength(10N,5S): No loose and fall off
Solderability(240℃,3s):
Tin layer covering area of 95%



Environment Characteristics
Rated power
1-1200W (70°C)
Temperature range
-55°C~+125°C
TCR
≤±200PPM/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)
ΔR≤±5%
Collision
ΔR≤±3%R

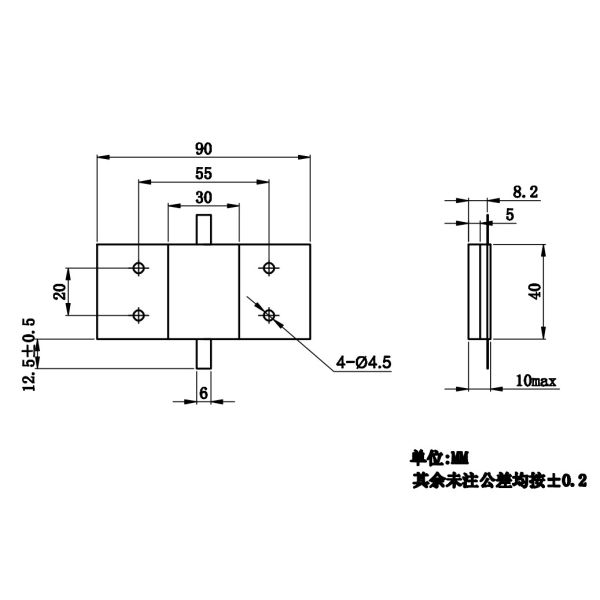

Outline structure drawing

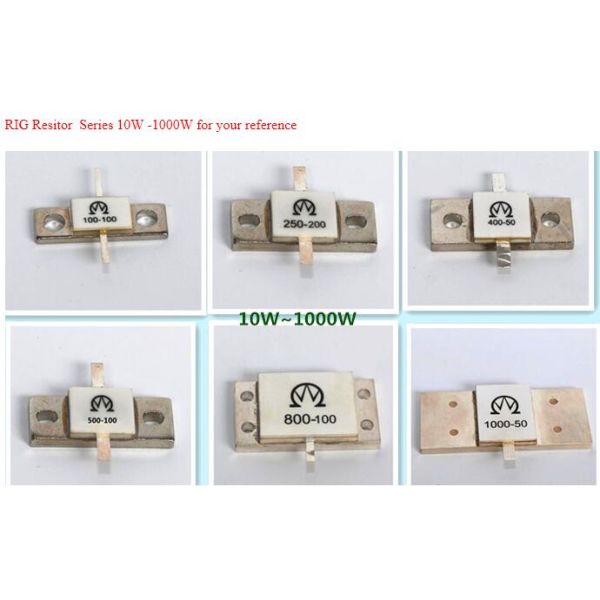

Two models available
RIG High Power RF Resistor 1000W DC to 3.5GHz Frequency Range -55°C to +125°C Operating
RIG High Power RF Resistor 1000W DC to 3.5GHz Frequency Range -55°C to +125°C Operating
RIG High Power RF Resistor 1000W DC to 3.5GHz Frequency Range -55°C to +125°C Operating
RIG High Power RF Resistor 1000W DC to 3.5GHz Frequency Range -55°C to +125°C Operating
