CNC Function Wood Cutting Saw Blade Sharpening Equipment
CNC Function Wood Cutting Saw Blade Sharpening Equipment
CNC Function Wood Cutting Saw Blade Sharpening Equipment
CNC Function Wood Cutting Saw Blade Sharpening Equipment
CNC Function Wood Cutting Saw Blade Sharpening Equipment
CNC Function Wood Cutting Saw Blade Sharpening Equipment
CNC Function Wood Cutting Saw Blade Sharpening Equipment
CNC Function Wood Cutting Saw Blade Sharpening Equipment
Specifications
Brand Name :
TORSEL
Model Number :
TFM800
Certification :
CE,ISO 9001
Place of Origin :
MADE IN CHINA
MOQ :
1
Price :
19000~28000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000UNITS/A
Delivery Time :
25-35DAYS
Packaging Details :
Water Proof + Wood Carton
FUNCTION :
FACE ANGLE GRINDING
MAX DIA. :
120-800MM
THICKNESS :
0.5-10MM
HOOK ANGLE :
0°~25°
TOP ANGLE :
8°~25°
CIRCUMFERENTIAL RANGE :
0°~5°
TIPS LENGTH RANGE :
1~15MM
PITCH :
2~65MM
Grinding Wheel Speed :
3.5~20S/TIP
WHEEL GRINDING SPEED :
3500`5800RPM
WHEEL SIZE :
125*32*25MM
PRECISION :
< 0.02MM
POWER :
4KW
DIMENSION :
1630*1100*1950MM (L*W*H)
WEIGHT :
1500KG
BEVEL ANGLE :
-45°~45°
Description

TFM800 Wood Cutting Blade Sharpening Machine

Product Description

TFM 800CNC Top/Face Sharpening Machine

Mainly used for resharpening service center to resharpen t.c.t. circular saw blades, in wood working & aluminum cutting saws top/face/bevel angle resharpening. It is the most econimic model to invest for resharpening service center. Please contact with us for your special grinding solutions.


High-level productivity & precision grinding machine for carbide tools.



CNC Function Wood Cutting Saw Blade Sharpening Equipment



Advantages of saw blade sharpener
• More precision- grinding precision: <0.025mm,be impressed by the higher accuracy.
• More efficiency- experienced productivity on a higher level
• More user comfort- simplify your work
• More flexibility-for precision in any requirement
• More Function- grinding TOP & FACE of saw blade



CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

CNC Function Wood Cutting Saw Blade Sharpening Equipment CNC Function Wood Cutting Saw Blade Sharpening Equipment

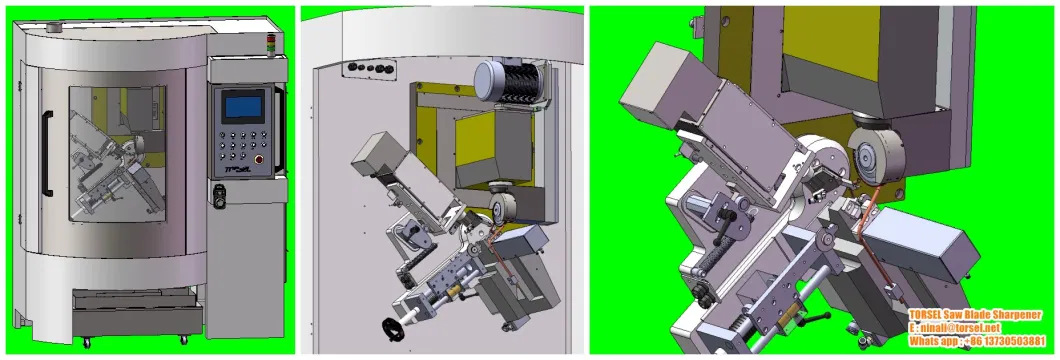

3-D Graphics Grinding Machine

CNC Function Wood Cutting Saw Blade Sharpening Equipment






Technical Premeter
Saw Blade Diameter 110~800mm
Hook Angle 0°~ -25°
Top Angle 8°~25°
Chamfer Angle of Top 45°~-45°
Chamfer Angle of Face 30°~-30°
Pitch 2-105mm
Wheel Diameter 125mm*32mm
Wheel Speed 4000~5000r/min
Grinding Speed 1~20mm/s
Power 4KW
Dimensions 1630 *1100 *1950mm
Weight 1500kg


Configuration
Ball Screw IF(Germany)
Roller Guide HIWIN(Taiwan)
Pneumatic Parts SMC(Japan)
Servo Motor Inovance
PLC Inovance ARM600
Harmonic Drive Inovance


CNC Function Wood Cutting Saw Blade Sharpening Equipment
CNC Function Wood Cutting Saw Blade Sharpening Equipment


CNC Function Wood Cutting Saw Blade Sharpening Equipment






FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

CNC Function Wood Cutting Saw Blade Sharpening Equipment
