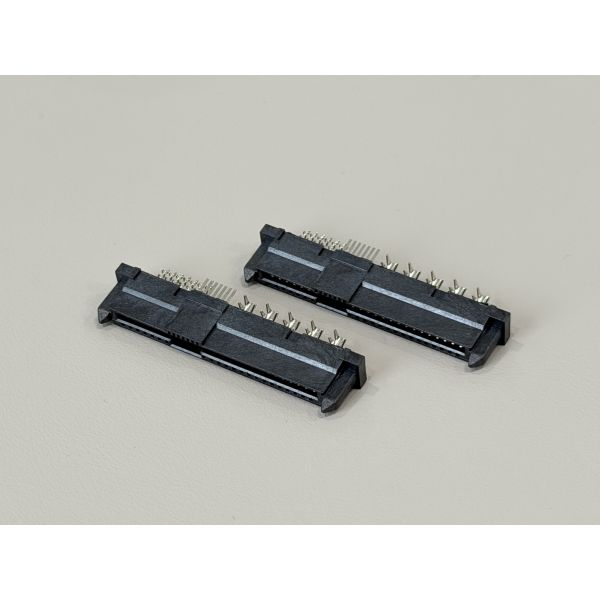

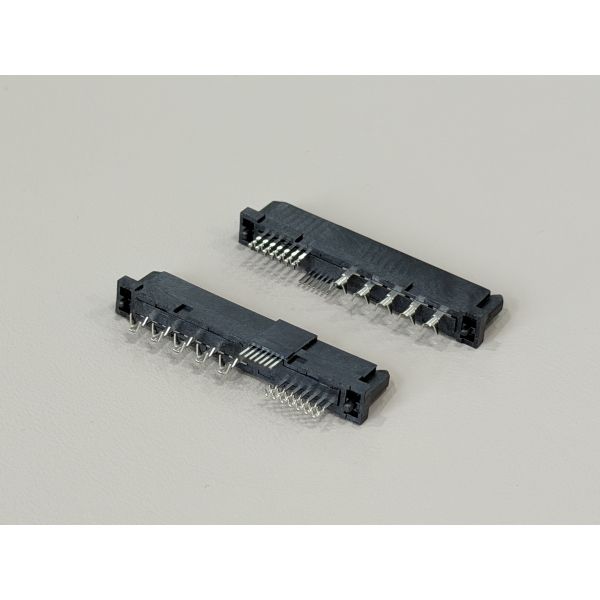

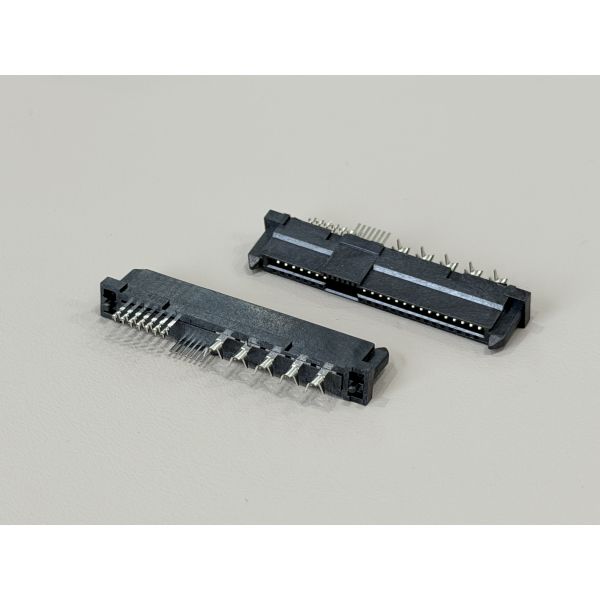

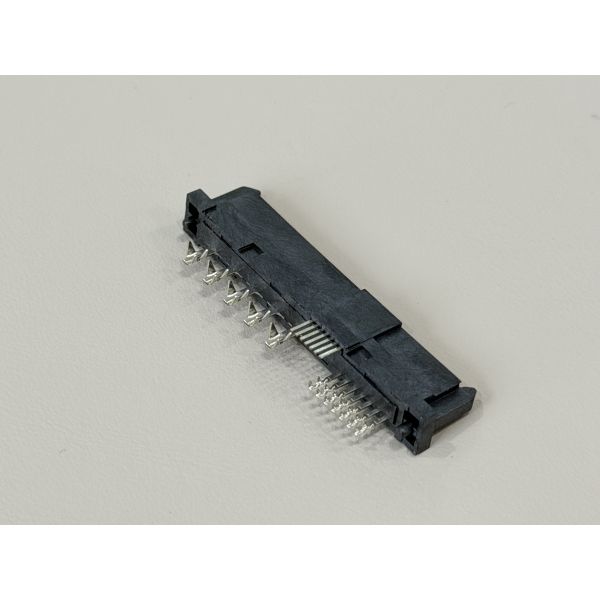

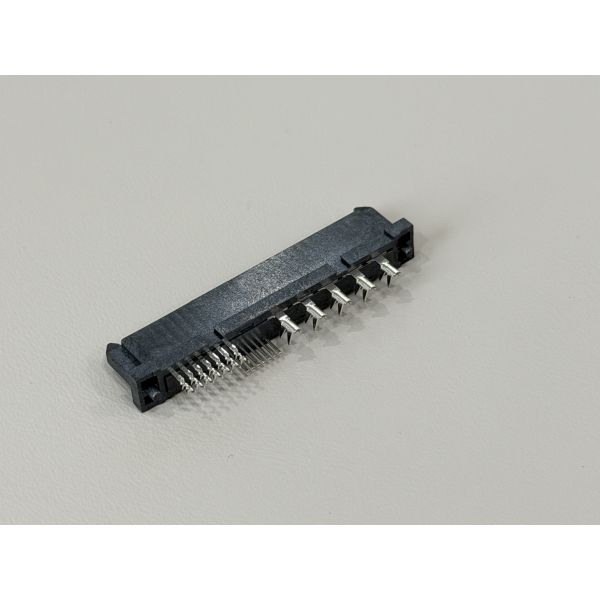

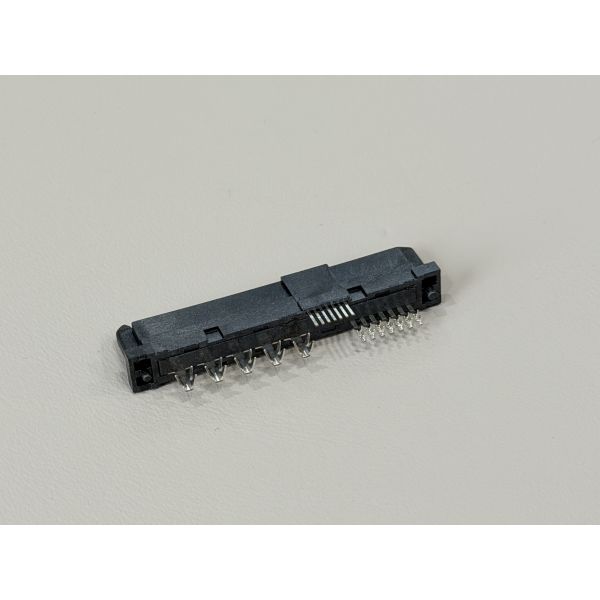

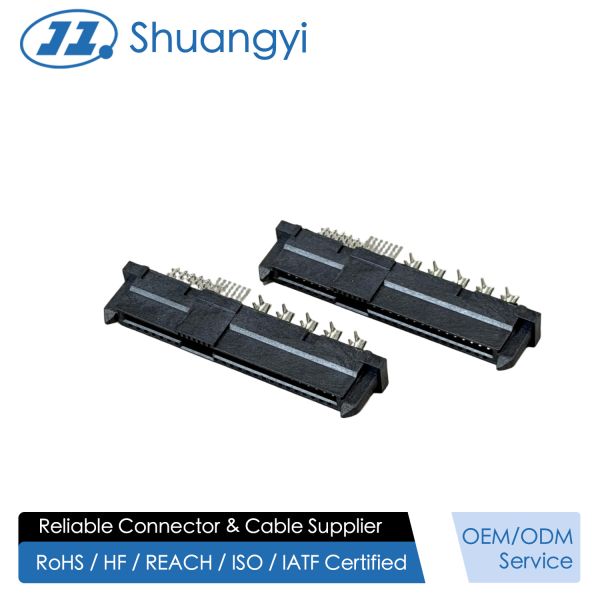

The SAS 29P IDC Female Cable Connector 180° with Positioning Peg is designed for high-speed electronic signal and power transmission in SAS-based server, storage and industrial systems.
With a 1.27mm pitch and 29 female terminals, this connector is ideal for compact, high-density wire and cable assemblies between backplanes, HDD / SSD drives and controller boards.

Each terminal is made from phosphor bronze C5191-H (t=0.25mm) and plated with 50u" minimum nickel over the entire terminal, gold G/F (gold flash) on the contact area for low contact resistance, and 80u" minimum tin on the solder & crimp area to ensure strong, reliable wire termination.

The housing uses glass-filled LCP, black, UL94-V0, providing excellent mechanical strength and heat resistance required in high-reliability electrical and electronic equipment.

Electrically, the connector supports 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and dielectric withstand 500VAC / minute, ensuring stable performance for high-speed data and power transmission. A single-pin retention force of at least 0.8kgf guarantees secure terminal locking inside the housing.

The positioning peg helps align the connector accurately in fixtures or over-mold tools and enhances stability in cable harnesses, making this connector a robust choice for customized wire, cable and wiring harness solutions.

Key Features

• 1.27mm pitch, 29-pin IDC female design for compact, high-density wiring harness and cable assemblies
• Ni 50u" min + Au G/F contact plating for reliable electrical performance and corrosion resistance
• Sn 80u" min on solder & crimp area ensures strong bonding with copper wires and stable electrical connection
• Phosphor bronze C5191-H terminals provide elastic contact force and long-term durability
• LCP G/F black UL94-V0 housing offers high mechanical strength and heat resistance, suitable for harsh electronic environments
• Single pin retention ≥0.8kgf prevents terminals from backing out under vibration or cable movement
• Rated 1.5A @ 40VAC, low contact resistance and high insulation resistance for clean signal and power transmission
• Positioning peg design improves assembly accuracy in jigs, fixtures and over-molded cable ends
• RoHS 2.0 compliant, suitable for global electrical and electronic equipment markets

⚙️ Applications

1. Server & Storage Devices

SAS HDD/SSD modules

RAID controller boards

Server backplanes

High-speed data transmission lines

2. Communication Equipment

Network routers and switches

Optical-electrical conversion modules

Edge computing devices

3. Automotive Electronics

ADAS data modules

In-vehicle storage interfaces

ECU signal connectors

4. Industrial Control Systems

PLC controllers

Industrial computers

Data acquisition boards

5. PCB & High-Speed Signal Designs

Multi-board connectivity

Fine-pitch high-density boards

High-speed signal routing applications

⚠️ Notes

• Select proper wire gauge and insulation type according to the current rating (1.5A @ 40VAC) and application requirements.
• Follow the recommended IDC / crimping or soldering process to ensure full tin-plated area wetting and stable electrical contact.
• Keep the gold-plated contact areas clean; avoid touching terminals with bare hands to prevent contamination and increased contact resistance.
• During assembly, use the positioning peg to align the connector correctly in fixtures or over-mold tools, preventing mechanical stress on terminals.
• Do not exceed the specified single-pin retention force or apply excessive pulling force on the cable to avoid damage to housing or terminals.
• Store products in dry, anti-static packaging, and use ESD protection when handling near sensitive electronic components.
• Operate the connector only within the specified temperature range (–20°C to +85°C) and electrical ratings to ensure long-term reliability.
