Product Description

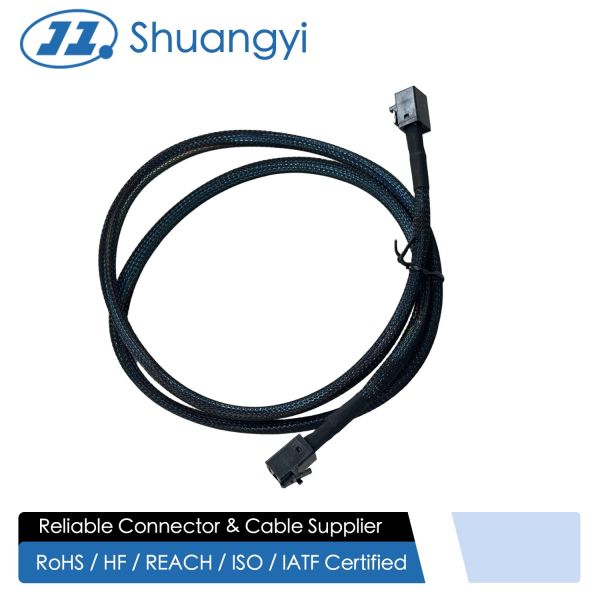

This Mini SAS HD SFF-8643 to Mini SAS SFF-8087 connector cable is designed for internal high-speed storage links where reliable, low-loss signal transmission is critical. One end uses a compact SFF-8643 high-density connector for modern RAID or HBA cards, while the other end features the classic SFF-8087 plug for legacy backplanes and drive cages, allowing easy migration and mixed-generation configurations in server platforms.
Precision 30AWG copper twinax wires with individual and overall braid shielding maintain controlled impedance and low crosstalk across all differential pairs. The black PET braided sleeve provides mechanical protection, neat cable management and a professional look inside high-end electronic systems. Robust metal latches on both terminals ensure a secure mating interface under vibration and frequent maintenance.
OEM customers can request length changes, alternative routing, labeling, and integration into complex harnesses that combine SAS data with auxiliary power or control lines, meeting different chassis and PCB layouts.
| Product Type | Internal Mini SAS HD to Mini SAS data connector cable |
| Interface Standard | SAS 2.0 / SAS 3.0 high-speed serial storage |
| Connector A | Mini SAS HD SFF-8643 36-pin male connector, latch type |
| Connector B | Mini SAS SFF-8087 36-pin male connector, latch type |
| Application | High-speed signal transmission between RAID/HBA and backplane / drive cage |
| Typical Pitch | 0.8 mm high-density SAS connector pitch |
| Cable Structure | UL3302 30AWG twinax + UL20744 30AWG-1P + 2EAM SAS cable |
| Conductor | Stranded copper electrical wire |
| Shielding | Individual foil plus overall braid shielding |
| Jacket & Sleeve | PVC jacket with black PET braided outer sleeve |
| Color | Black (custom colors available) |
| Length | 1000 mm standard (other lengths on request) |
| Rated Voltage | 30 V max (signal use) |
| Characteristic Impedance | 100 Ω differential (typical SAS channel) |
| Max Data Rate | Up to 12 Gb/s per lane, suitable for enterprise storage systems |
| Insulation Resistance | ≥10 MΩ (room temperature, DC) |
| Operating Temperature | -25 ℃ ~ +80 ℃ |
| Flame Class | UL VW-1 (by cable type) |
| Compliance | RoHS compliant, halogen-free version optional |
| MOQ | 100 pcs |
| Customization | OEM/ODM customization of length, routing, pin-out, labeling, and matching PCB headers |
| Packaging | PE bag packing or customized retail/industrial packing |
Applications
Internal connection between Mini SAS HD host ports and SAS-8087 backplanes in 1U/2U/4U rackmount servers
Expansion links in JBOD/JBOF enclosures, DAS/NAS devices and enterprise storage arrays
High-density RAID subsystems in data centers and GPU/AI servers where compact, shielded cables are required
Industrial computers and embedded systems using SAS-based SSD/HDD modules on customized PCB backplanes
Precautions
Confirm that host and backplane interfaces are SFF-8643 and SFF-8087 respectively and that the pin assignment matches the system design before mating the connectors.
Avoid excessive bending near the over-molded terminals; follow the recommended minimum bend radius of the SAS wire cable to preserve impedance and lifespan.
Keep the harness away from sharp edges, high-current power lines and strong EMI sources wherever possible to maintain stable high-speed signal quality.
For special environments such as telecom, industrial or automotive electronics, enhanced temperature rating, additional shielding, and dedicated connector or pitch options can be customized on request.
