Product Description

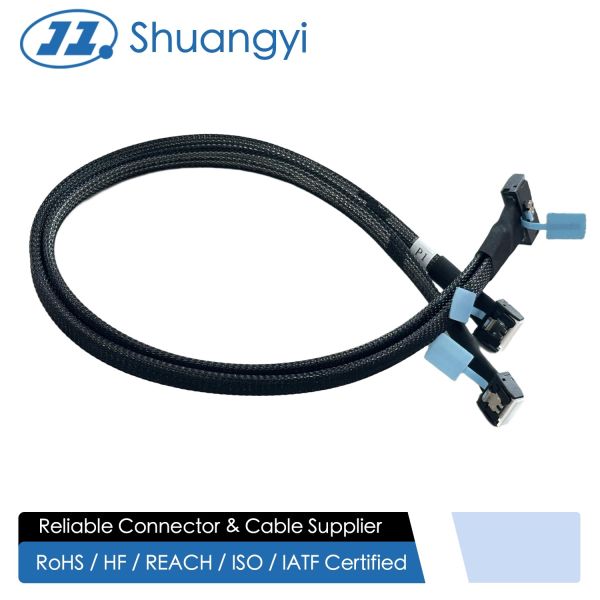

This 3-in-1 braided SATA 7Pin connector cable assembly is designed for compact, organized signal transmission in high-density storage systems. A single host-side right-angle SATA plug fans out inside the braided harness into three separate right-angle SATA connectors, each with a metal latch and pull tab for easy release in crowded server bays.
Each internal wire cable uses impedance-controlled copper twinax pairs with individual shielding to minimize crosstalk and insertion loss, ensuring stable 6 Gb/s SATA data rates to every drive. The common PET braided sleeve keeps the three lines neatly bundled, improving airflow and abrasion resistance while simplifying routing along chassis walls and PCB backplanes. The harness can be tailored for OEM customization, including different branch lengths, labeling for P1/P2/P3, or hybrid assemblies combining SATA data with separate power terminals.
| Product Type | Multi-drop SATA 7Pin data cable connector harness (3 branch cables in one sleeve) |
| Interface Standard | Serial ATA, compatible with SATA I / II / III |
| Host Side | Right-angle SATA 7Pin male connector with metal latch (marked P1) |
| Device Side | 3 × right-angle SATA 7Pin male connectors with metal latches and pull tabs |
| Pin Count | 7 high-speed signal pins per connector |
| Typical Pitch | 1.27 mm SATA signal pitch |
| Function | High-speed digital signal transmission only, no power lines |
| Cable Structure | Three individually shielded SATA cables bundled in a common PET braided sleeve |
| Conductor | 26/28AWG stranded copper twinax for signal pairs |
| Shielding | Foil shield and drain wire per cable, plus overall braid for EMI suppression |
| Outer Jacket | Inner PVC insulation with black braided sleeving for abrasion protection |
| Color | Black braided harness, blue identification labels on connectors |
| Max Data Rate | Up to 6 Gb/s per SATA link (SATA III), backward compatible |
| Characteristic Impedance | 100 Ω differential (typical for SATA interface) |
| Contact Material | Copper-alloy terminals with nickel under-plating and selective gold flash |
| Housing Material | High-temperature PA / PBT, UL94V-0 flame-retardant |
| Operating Temperature | -20 °C to +80 °C |
| Cable Length | Typical 0.5–0.8 m from host connector to device connectors (custom length available) |
| Compliance | RoHS / REACH compliant |
| Custom Options | Number of branches, length, sleeve color, labeling, mixed straight/angle connectors, integration with power or PCB board-end connectors for project customization |
Applications
Connecting three 2.5"/3.5" HDD or SSD from a single SATA host position in desktop towers, workstations and rack-mount servers
High-density NAS, JBOD and storage drawers where multiple drives are mounted close together and tidy cabling is critical
DVR / NVR and industrial data recorders that require several SATA data links within a compact electronic enclosure
Custom PCB backplanes and storage modules using SATA headers for multi-drive connectivity in telecom and edge-computing equipment
System integrators needing pre-bundled SATA connector harnesses to reduce assembly time and wiring errors in batch production
Precautions
SATA is a point-to-point interface; ensure each branch is connected to an independent SATA port or backplane position as defined in the system design, not simply paralleled on one host port.
Confirm correct keying and orientation before inserting the connectors; forcing them may bend the contact pins or damage device sockets.
Maintain the recommended bend radius of the braided harness and avoid tight kinks near the over-molded ends to preserve controlled impedance and long-term reliability of high-speed transmission.
Route the cable away from sharp metal edges and high-current power lines to minimize mechanical wear and electromagnetic interference.
For large projects, harnesses with different branch counts, alternate pitch or automotive-grade jackets can be supplied to match specific cabinet layouts and environmental requirements.
