Product Description

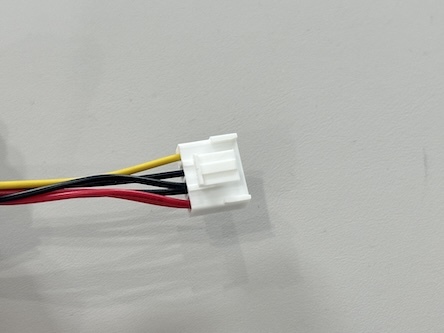

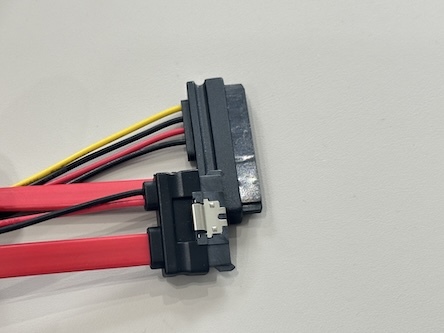

This assembly is a compact SATA data and power connector harness designed to route high-speed signal and low-voltage power from a small PCB connector to multiple Serial ATA devices. A white multi-pin housing mates with a board-mounted header, while red SATA cables and color-coded power wires fan out to right-angle SATA plugs, simplifying wiring in slim PC cases and 1U/2U server chassis.

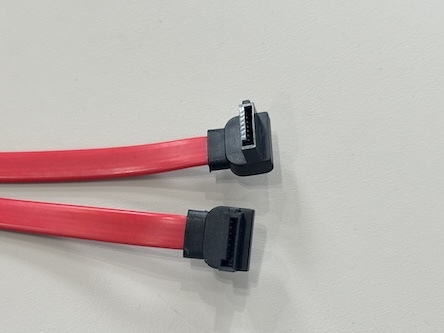

Stranded tinned-copper conductors and precision-formed terminals ensure stable 6 Gb/s transmission and low contact resistance. Right-angle SATA connectors reduce stress on the drive sockets and help with tight-space routing along HDD cages or DVR enclosures. The harness can be tailored for different pinouts, lengths, and device counts, supporting OEM customization for storage systems, industrial recorders and other electronic equipment.
| Product Type | SATA data & power cable connector harness |
| Input Connector | 4–5Pin female housing for PCB header (typical 2.54 mm pitch) |
| Output Connectors | 2 × right-angle SATA 7Pin data connectors with matching power leads |
| SATA Data Cable | 26/28AWG red flat wire cable, stranded copper |
| Power Wires | Yellow / red / black 18–22AWG tinned copper wire |
| Rated Data Speed | Up to 6 Gb/s SATA III transmission |
| Rated Voltage | 5 V / 12 V DC |
| Rated Current | 2–3 A per power wire (depending on length and gauge) |
| Contact Material | Copper-alloy terminals, tin or gold plated |
| Housing Material | PA / PBT, flame-retardant, UL94V-0 compatible |
| Cable Length | Standard 0.5–0.7 m (customization available) |
| Operating Temperature | -20 °C to +80 °C |
| Compliance | RoHS / REACH |
| Custom Options | Pin definition, wire gauge, length, number of SATA ports, labeling and over-molding |
Applications
Connecting two SATA HDD / SSD from a controller board or backplane with a single PCB header
Space-saving internal wiring in desktop PCs, compact workstations and rack-mount servers
SATA cabling for DVR / NVR, data-logging and industrial monitoring systems
Custom storage modules or external drive cages where neat, bundled wire cable routing is required
Embedded boards that need an integrated data-and-power connector harness instead of separate loose cables
Precautions
Verify the PCB header pin definition for both data and power lines before installation; incorrect mapping of pins may damage drives or the controller board.
Ensure total current on the power wires does not exceed the rated value of the harness and the PCB terminals.
Avoid sharp bends near the right-angle SATA connectors and secure the cables to prevent vibration or pulling forces.
Keep the assembly away from hot components and sharp metal edges to protect insulation and maintain long-term reliability.
Variants with additional SATA outputs, different pitch headers, shielded cables or automotive-grade materials can be supplied for project and batch orders.
