Product Description

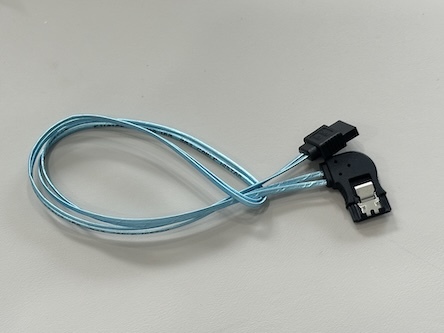

This right-angle to straight SATA 7Pin data connector cable is designed for compact, reliable signal transmission between drives and host controllers. The blue shielded wire cable uses impedance-controlled copper pairs and full-coverage foil shielding to minimize crosstalk and attenuation, ensuring stable 1.5 / 3 / 6 Gb/s Serial ATA performance in desktop, server and industrial systems.

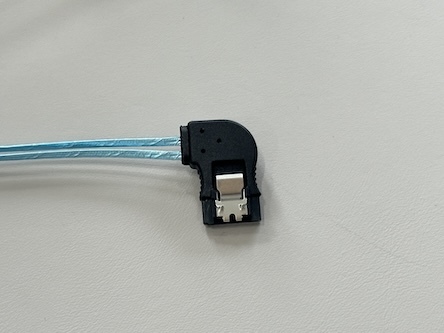

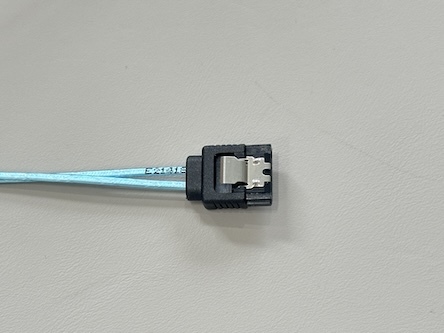

One end adopts a 90-degree right-angle SATA male connector with a stainless-steel latch, ideal for drives mounted close to the chassis wall or inside low-profile bays. The opposite straight plug mates directly with motherboard, RAID card or backplane terminals, providing a secure electrical interface for HDD, SSD and other electronic storage devices. This assembly can be tailored as an OEM customization item, including length, jacket color, PCB plug or mixed data-plus-power harness for integrated storage wiring.
| Product Type | High-speed SATA data cable connector assembly |
| Interface Standard | Serial ATA, compatible with SATA I / II / III |
| Connector A | 7Pin SATA male, 90-degree right-angle with metal latch |
| Connector B | 7Pin SATA male, straight plug |
| Pin Count | 7 electronic signal pins per connector |
| Contact Pitch | 1.27 mm differential pair pitch (typical SATA) |
| Conductor | 26/28AWG stranded oxygen-free copper twinax |
| Cable Structure | Individually shielded pairs with overall foil shield |
| Outer Jacket | PVC electrical insulation, blue round cable |
| Max Data Rate | Up to 6 Gb/s high-speed transmission |
| Characteristic Impedance | 100 Ω differential (typical) |
| Contact Material | Copper-alloy terminals, nickel underlayer with gold flash |
| Housing Material | UL94V-0 PA / PBT, high-temperature resistant |
| Operating Voltage | Low-voltage digital signal line |
| Operating Temperature | -20 °C to +80 °C |
| Standard Length | 0.3 m / 0.5 m (custom length and labeling available) |
| Compliance | RoHS / REACH compliant |
| Custom Options | Different lengths, colors, straight/angle combinations, bundled harness with power connector or PCB header |
Applications
Connecting 2.5"/3.5" SATA HDD / SSD to motherboard or HBA in space-constrained cases
Internal data cabling in 1U/2U rack-mount servers, NAS units and JBOD enclosures
DVR / NVR, data-logging and automation equipment using SATA headers on PCB backplanes
Compact industrial PCs and embedded systems where a right-angle SATA connector eases routing along chassis edges
Custom electronic test fixtures and storage modules requiring flexible, shielded SATA wire cable assemblies
Precautions
Check that both mating receptacles are standard SATA 7Pin interfaces; do not force insertion if the connector is misaligned to avoid bending pins.
Maintain an appropriate bending radius, especially near the right-angle end, to keep controlled impedance and stable high-speed transmission.
Route the cable away from sharp metal edges and high-current power lines to reduce insulation wear and electromagnetic interference.
Use cable clips or ties in high-vibration environments so that mechanical stress is not transferred to the SATA terminals or PCB sockets.
Variants with multi-lane assemblies, additional power connectors, or rugged jackets for automotive and harsh-environment applications can be produced for project and batch orders.
