Specifications
Brand Name :
ShuangYi
Model Number :
TF-18H-A1D1A5-02LR
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.11-0.17 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Connector Type :
TF / Micro SD Card Connector (1.5H Old Version)
Structure :
1.8H low-profile, push-pull type with Mylar insulation
Mounting Type :
PCB mount, SMT/Hybrid depending on layout
Terminal Material :
Copper alloy with gold plating (per model requirement)
Housing Material :
LCP high-temperature resin
Operating Voltage :
3.3V standard TF interface
Contact Resistance :
≤100 mΩ max
Insulation Resistance :
≥500 MΩ
Withstanding Voltage :
AC 500V / 1 min
Operating Temperature :
-40°C to +85°C
Insertion Life :
5,000 cycles min
Card Compatibility :
TF / Micro-SD
Features :
Gold-plated contacts, secure lock, reinforced terminal plating, Mylar dust/insulation film
Dimensions :
Refer to model-specific drawing (approx. 13.6mm length × 15mm width × 1.8mm height)
Description

Product Description

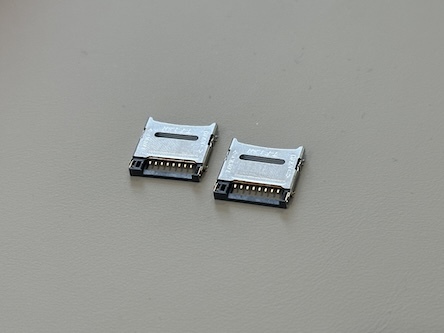

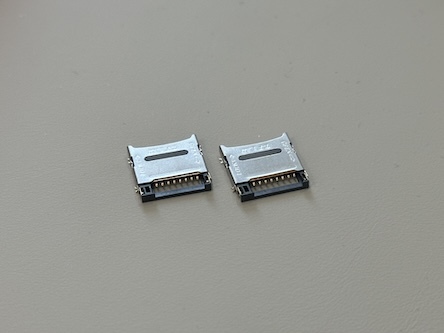

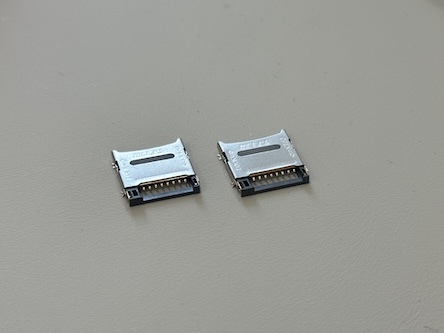

This 1.8H TF Card Socket Connector is a compact, high-reliability Micro-SD card holder designed for small-form-factor electronics requiring stable signal transmission and long insertion life. The connector features a reinforced contact structure with gold-plated terminals to ensure low contact resistance and excellent corrosion resistance. The integrated Mylar insulation layer improves durability, prevents short-circuit risks, and enhances card retention performance.

Its low-profile design provides optimal space utilization for compact PCB layouts, while the guided lock area supports smooth card insertion and secure positioning during operation. Manufactured using high-temperature LCP housing and precision-formed terminals, the connector is suitable for high-density consumer and industrial applications.

High-Reliability 1.8H TF Card Socket Connector with Mylar | Low-Profile PCB Mount Micro SD Holder | Gold-Plated Terminals & Secure Lock StructureHigh-Reliability 1.8H TF Card Socket Connector with Mylar | Low-Profile PCB Mount Micro SD Holder | Gold-Plated Terminals & Secure Lock StructureHigh-Reliability 1.8H TF Card Socket Connector with Mylar | Low-Profile PCB Mount Micro SD Holder | Gold-Plated Terminals & Secure Lock Structure

Product Type TF / Micro-SD Card Socket Connector
Structure 1.8H low-profile, push-pull type with Mylar insulation
Mounting Type PCB mount, SMT/Hybrid depending on layout
Terminal Material Copper alloy with gold plating (per model requirement)
Housing Material LCP high-temperature resin
Operating Voltage 3.3V standard TF interface
Contact Resistance ≤100 mΩ max
Insulation Resistance ≥500 MΩ
Withstanding Voltage AC 500V / 1 min
Operating Temperature -40°C to +85°C
Insertion Life 5,000 cycles min
Card Compatibility TF / Micro-SD
Features Gold-plated contacts, secure lock, reinforced terminal plating, Mylar dust/insulation film
Dimensions Refer to model-specific drawing (approx. 13.6mm length × 15mm width × 1.8mm height)

Applications

Smart wearable devices

Portable consumer electronics

IoT modules & communication products

GPS devices

Bluetooth / WIFI modules

Industrial handheld equipment

Data-logging devices

Precautions

Ensure correct PCB pad layout and reflow profile to avoid deformation.

Avoid excessive insertion force; improper angle may damage terminal contacts.

Keep the connector free from dust and debris to maintain stable contact.

Follow ESD-safe handling procedures during assembly.

Verify card thickness and dimensions to ensure compatibility.
