3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized
Specifications
Brand Name :
ShuangYi
Model Number :
050-Z032Z0-010R
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.15-0.24 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Product Type :
3P Female Wire-to-Board Circular Connector
Pin Count :
3P
Contact Type :
Female Terminals (Gold Plating Test Points)
Housing Diameter :
Ø7.00 mm (front view)
Pin Diameter :
Ø1.00 mm REF
Overall Height :
14.45 ± 0.30 mm
Mounting Style :
Through-hole / PCB soldering
Pitch (Between Pins) :
3.50 mm
Base Thickness :
6.50 mm
Contact Resistance :
Low resistance (per drawing spec)
Withstand Voltage :
No breakdown under specified test conditions
Insulation Resistance :
High insulation per test requirements
Terminal Plating :
Nickel plating (Ni) + Tin / Gold plating area
Salt Spray Test :
Required per drawing specifications
Compliance :
RoHS 2.0 + REACH
Description

Product Description

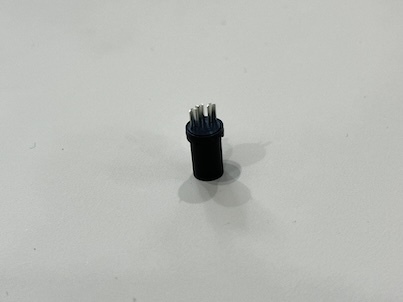

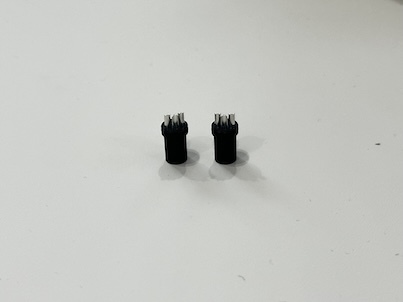

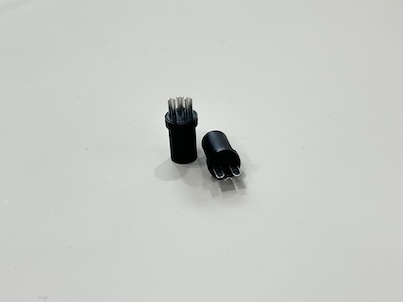

This 3-Pin Female Wire-to-Board Circular Connector is designed for stable electrical and signal transmission in compact electronic devices. The connector features a Ø7.00 mm circular housing and high-precision female terminals with nickel and gold/tin plating, ensuring excellent conductivity, corrosion resistance, and long-term reliability. The through-hole structure provides solid PCB mounting, suitable for applications requiring durable mating cycles and secure mechanical retention.

With high insulation resistance, low contact resistance, and compliance with RoHS 2.0 + REACH, this connector is ideal for power supply modules, sensor interfaces, industrial control boards, lighting equipment, communication devices, and various customized wiring harness solutions.

3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized3P Female Connector Wire-to-Board Circular Terminal Connector | Electronic Power Signal PCB Connector Customized

Product Type 3P Female Wire-to-Board Circular Connector
Pin Count 3 Pins
Contact Type Female Terminals (Gold Plating Test Points)
Housing Diameter Ø7.00 mm (front view)
Pin Diameter Ø1.00 mm REF
Overall Height 14.45 ± 0.30 mm
Mounting Style Through-hole / PCB soldering
Pitch (Between Pins) 3.50 mm
Base Thickness 6.50 mm
Contact Resistance Low resistance (per drawing spec)
Withstand Voltage No breakdown under specified test conditions
Insulation Resistance High insulation per test requirements
Terminal Plating Nickel plating (Ni) + Tin / Gold plating area
Salt Spray Test Required per drawing specifications
Compliance RoHS 2.0 + REACH

Applications

Power signal transmission in compact devices

PCB modules in industrial control systems

LED lighting and driver boards

Communication equipment & smart devices

Custom wiring harnesses for automotive or machinery

Sensors & low-voltage electronic circuits

Precautions

Ensure the PCB hole size and layout match the connector dimensions.

Avoid excessive insertion force to protect female terminals.

Follow recommended soldering temperatures to prevent housing deformation.

Plating and environmental resistance may vary depending on the selected finish.

Store in a dry, dust-free environment to maintain terminal conductivity.
