Specifications
Brand Name :
ShuangYi
Model Number :
IDC-20M-A2D3A2-00GH
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.2-0.31 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Product Type :
IDC 20-Pin Dual-Row Fully-Shrouded Male Connector
Pin Count :
20 Pins (2×10)
Structure :
Fully-shrouded housing, exposed pin section (3.2mm)
Mounting Style :
Through-hole / Pin-header type
Pitch :
Standard IDC dual-row spacing
Material – Housing :
High-temperature insulating resin
Material – Contact :
Copper alloy
Plating :
Gold-flash / Full gold (G/F) plating
Operating Voltage :
Low-voltage signal & power interface
Current Rating :
Suitable for low-current transmission
Contact Resistance :
Low-impedance contact design
Insulation Resistance :
High-insulation housing material
Durability :
High cycle reliability for repeated mating
RoHS Compliance :
RoHS
Custom Options :
Pin length, gold thickness, housing color, PCB tail length
Description

Product Description

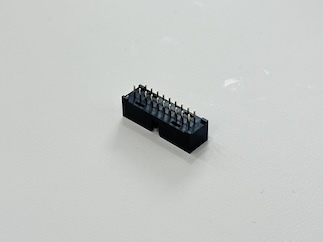

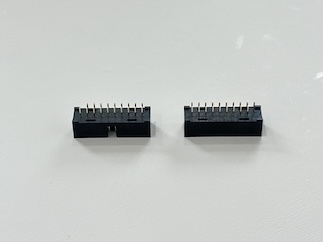

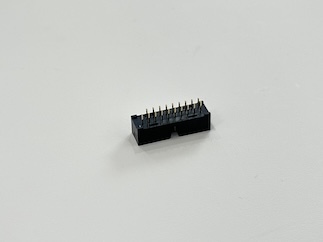

This 20-pin dual-row IDC male connector features a fully-shrouded design for improved alignment and mating stability. The 3.2mm exposed pins support efficient PCB soldering, ensuring reliable electrical performance in signal and low-power transmission systems.
Gold-flash/full-gold (G/F) plating enhances corrosion resistance, low contact resistance, and long-term durability, making it suitable for high-performance electronic applications.
The connector is manufactured with high-temperature resistant materials and supports customization, including pin length, plating thickness, and special PCB mounting requirements.

IDC 20-Pin Dual-Row Fully-Shrouded Male Connector, Pin-Header Type, Exposed 3.2mm Gold-Plated G/FIDC 20-Pin Dual-Row Fully-Shrouded Male Connector, Pin-Header Type, Exposed 3.2mm Gold-Plated G/FIDC 20-Pin Dual-Row Fully-Shrouded Male Connector, Pin-Header Type, Exposed 3.2mm Gold-Plated G/F

Product Type IDC 20-Pin Dual-Row Fully-Shrouded Male Connector
Pin Count 20 Pins (2×10)
Structure Fully-shrouded housing, exposed pin section (3.2mm)
Mounting Style Through-hole / Pin-header type
Pitch Standard IDC dual-row spacing
Material – Housing High-temperature insulating resin
Material – Contact Copper alloy
Plating Gold-flash / Full gold (G/F) plating
Operating Voltage Low-voltage signal & power interface
Current Rating Suitable for low-current transmission
Contact Resistance Low-impedance contact design
Insulation Resistance High-insulation housing material
Durability High cycle reliability for repeated mating
RoHS Compliance Yes
Custom Options Pin length, gold thickness, housing color, PCB tail length

Applications

Industrial controllers and automation equipment

Server backplanes and communication modules

Consumer electronics and embedded systems

Automotive electronics wiring and PCB interfaces

Signal transmission, ribbon-cable assemblies, and IDC flat-cable connections

Precautions

Ensure correct pin alignment before mating to avoid damage to contacts.

Suitable for low-voltage applications only; not intended for high-power circuits.

Observe recommended soldering temperature profiles to prevent housing deformation.

Avoid excessive mechanical stress on exposed pins during assembly.

For outdoor or harsh environments, enhanced plating or sealing options are recommended.
