Product Description

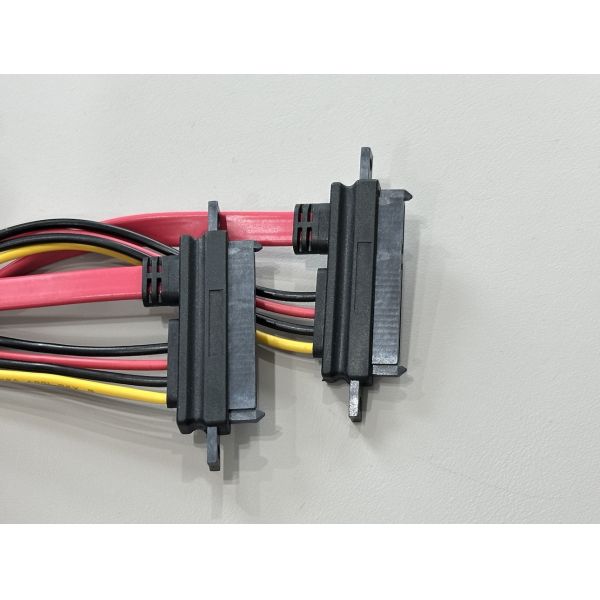

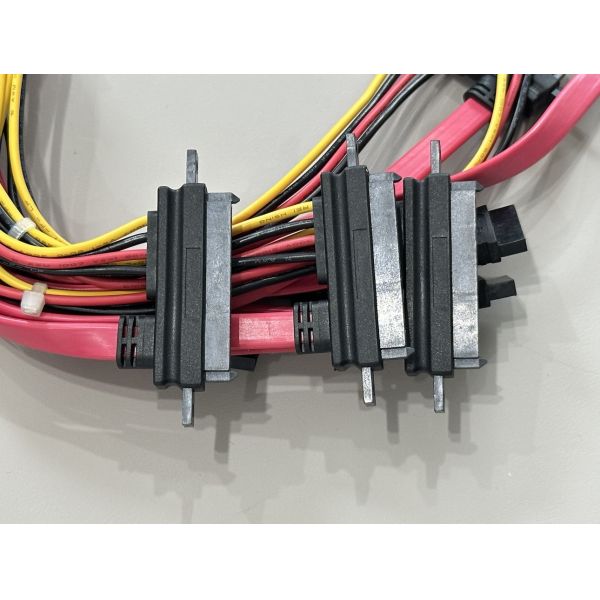

This multi-drop SATA wire harness connector assembly combines power and high-speed signal transmission in one compact cable set. A standard 4-pin power connector on the host side fans out to several SATA 7+15-pin cable connectors, allowing you to power and connect multiple 2.5"/3.5" HDDs or SSDs from a single power source.
The assembly uses oxygen-free copper electrical wire and shielded flat SATA cable to provide stable 5V/12V power and reliable 6Gb/s SATA data transmission. Gold-plated terminals reduce contact resistance and improve long-term corrosion resistance, while the molded housings enhance strain relief and mechanical strength. The harness is ideal for applications requiring neat wiring and quick installation in limited space.
| Connector type | 4-pin peripheral power connector to multiple SATA 7+15-pin combined connectors |
| Interface | Serial ATA power and data connector |
| Number of SATA connectors | 4–6 positions (customizable) |
| Power wires | Black / yellow / red electrical wire, 18–20AWG copper |
| Signal cable | Flat SATA data cable, 26–28AWG, shielded |
| Rated voltage | 5V / 12V DC power supply |
| Rated current | Up to 1.5–2.0A per power pin (configuration dependent) |
| Cable length | Typical 0.5–1.0 m, custom length available |
| Outer jacket | PVC insulation, bundled with black braided sleeve or tie |
| Color | Red SATA cable + black/yellow/red power wires |
| Connector gender | Male plug SATA connector to drive side, female 4-pin power input |
| Pitch | SATA 7-pin signal + 15-pin power standard pitch |
| Operating temperature | -20℃ to +80℃ (depending on wire spec) |
| Application | HDD/SSD storage expansion, server & PC power distribution, industrial control cabinets |
| Customization | Pin-out, cable length, wire gauge, label and over-molding available |
| Compliance | RoHS-compliant electronic connector and cable materials |
Applications
Storage backplanes in servers, workstations, NAS and RAID arrays
Multi-drive upgrade kits for desktop PCs and industrial PCs
Power and signal distribution for DVR/NVR, medical equipment and test instruments
Custom OEM/ODM wiring harness solutions for chassis, enclosures and storage modules
Precautions
Confirm that the total current of all connected drives does not exceed the power rating of the 4-pin input and system power supply.
Avoid excessive bending or twisting of the flat SATA cables and bundled harness to maintain signal integrity and mechanical life.
Ensure connectors are fully inserted and latched before powering on to prevent intermittent contact or data errors.
Do not route the cable near sharp edges, high-temperature components or strong electromagnetic sources; use proper cable management clips or ties.
For special environments (high temperature, vibration, automotive or industrial use), consult for customized wire gauge, jacket material and additional shielding.
