Product Description

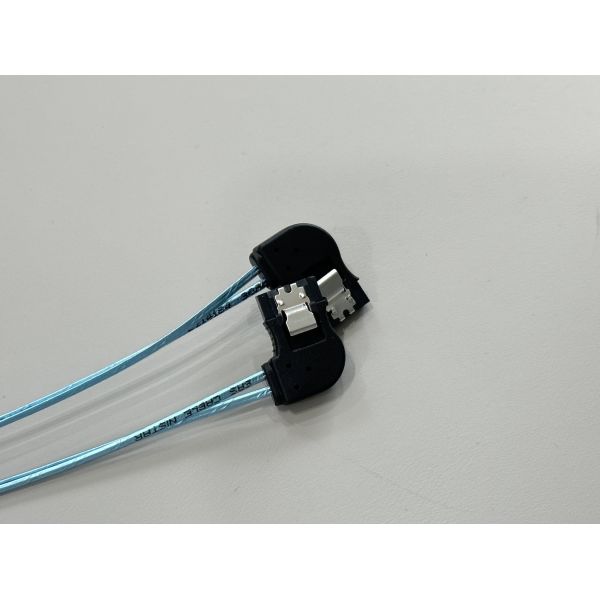

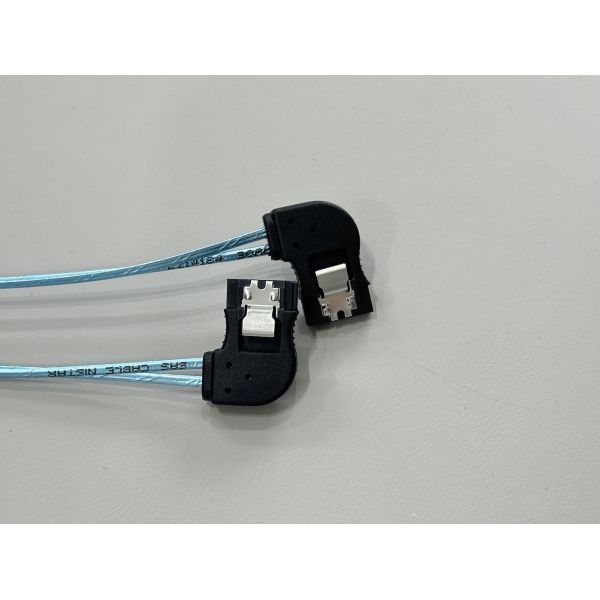

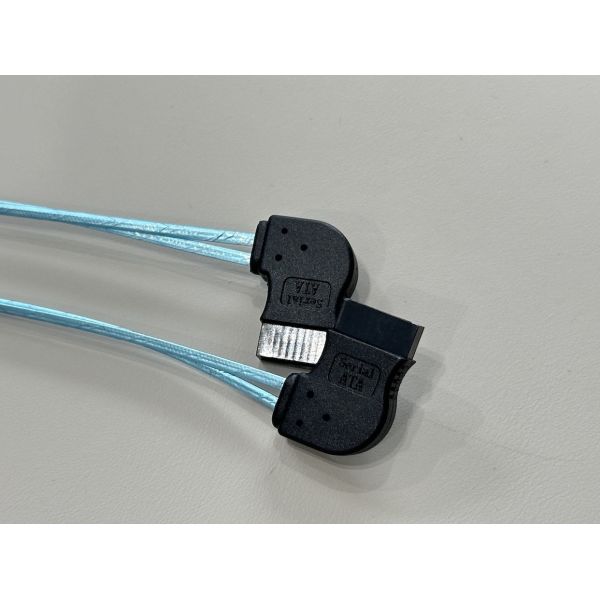

This right-angle SATA 7Pin high-speed cable connector assembly is designed for reliable internal signal transmission between PCB boards, HDD/SSD drives and storage controllers in compact electronic equipment. Both ends use 90-degree SATA male connectors with metal latches, ensuring a secure mating and stable electrical contact even in high-vibration server and industrial environments.
The cable adopts fine-strand copper conductors with controlled 100-ohm differential impedance and a PVC insulated jacket, supporting SATA II and SATA III data rates up to 6 Gb/s. Gold-plated terminals reduce contact resistance and improve anti-corrosion performance, extending the service life of the connector. OEM/ODM customization is available for cable length, wire gauge, color and labeling to match different chassis layouts or harness assemblies.
| Connector Type | SATA 7Pin right-angle male connector with metal latch |
| Number of Positions | 7 signal pins |
| Interface Standard | Serial ATA, SATA II / SATA III compliant |
| Cable Type | Twinax / flat SATA data cable |
| Conductor Size | 26–28AWG copper wire |
| Impedance | 100 Ω differential (typ.) |
| Data Rate | Up to 6 Gb/s SATA III |
| Cable Length | Standard 0.3–1.0 m, other lengths on request |
| Jacket Material | PVC insulation, blue transparent outer jacket |
| Color | Blue cable, black connector housing |
| Connector Housing | High-temperature engineering plastic |
| Contact Plating | Gold-plated contacts for low contact resistance |
| Termination Style | Over-molded cable assembly, crimp / solder terminals |
| Operating Voltage | 5 V max signal level |
| Operating Temperature | −20 ℃ to +70 ℃ |
| RoHS Compliance | RoHS / halogen-free options available |
| Customization | Length, wire gauge, color, labeling and packing customizable (OEM/ODM) |
| Application Fields | Server, storage backplane, industrial PC, embedded PCB electronic equipment |
Applications
Internal SATA data connection between 2.5"/3.5" HDD / SSD and motherboard or RAID card in servers and workstations
High-density storage arrays and NAS systems where right-angle connectors help with tight PCB and housing space
Industrial control computers, DVR/NVR, medical and testing equipment that require stable high-speed signal cables
Customized harness solutions for OEM storage devices and PCB assemblies in electronic and automotive electronics fields
Precautions
This assembly carries SATA data signals only; it does not provide power to the drive. Use a separate power connector where required.
Ensure insertion in the correct orientation; do not force or twist the right-angle connector into the mating SATA receptacle.
Maintain the recommended minimum bend radius of the cable to avoid impedance distortion and signal loss, especially near the connector over-mold.
Avoid pulling on the wire during unplugging; hold the connector body or latch to disconnect.
Keep the assembly away from sharp edges, high-temperature sources and strong electromagnetic interference to ensure long-term reliable transmission.
