Product Description

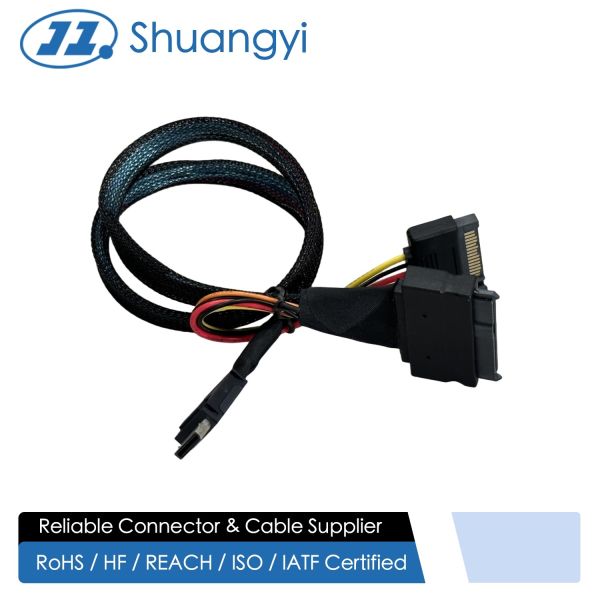

This braided backplane power and data connector cable harness is designed for compact server and industrial computer platforms where a proprietary board connector must be adapted to standard Slimline SATA and 15-pin SATA power interfaces. High-quality copper wire, precision-crimped terminals and robust over-molding deliver stable electrical performance and low insertion loss for both power and high-speed signal transmission.
The round cable construction with PET braided sleeving resists abrasion and bending fatigue, while helping organize wiring inside dense 1U/2U chassis. Color-coded power lines and clearly keyed connectors reduce installation errors and make field maintenance easier. With full OEM/ODM customization capability, this harness can be tuned for different PCB pitch, connector types and cable lengths used in automotive data recorders, embedded computers and storage expansion modules.
| Product Type | Custom braided power and signal connector cable harness |
| Connector A | High-density backplane plug connector, 2-row, male style for PCB header interface |
| Connector B | 22-pin Slimline SATA combo connector, female, power + signal |
| Connector C | 15-pin SATA power connector, female, right-angle type |
| Application | Electrical power and high-speed signal transmission between server backplane and 2.5" drives or custom electronic modules |
| Conductor | Oxygen-free copper wire and twin-ax / multi-core cable |
| Wire Gauge | 18–22 AWG for power, 26–30 AWG for signal wires (customizable) |
| Voltage Rails | 3.3 V / 5 V / 12 V DC power lines with multiple GND terminals |
| Rated Current | 1.5–3 A per power pin, depending on selected wire gauge and terminal material |
| Insulation | PVC or halogen-free insulation, rated 30–300 V depending on cable spec |
| Outer Jacket | PET braided sleeve over round cable for abrasion protection and cable management |
| Color | Black braid with color-coded inner wires (yellow / red / black / orange) |
| Operating Temperature | -20 ℃ to +80 ℃ standard; extended temperature on request |
| Connector Housing | High-temperature PBT/PA material, black, with locking latch design |
| Terminals | Phosphor bronze / brass pins with tin or selective gold plating for low contact resistance |
| Impedance | Controlled impedance design available for signal lines, suitable for SATA data transmission |
| Compliance | RoHS compliant; REACH and halogen-free options available |
| Customization | Wire length, pitch and pin-out, connector gender, labeling, over-molding and additional signal terminals |
| Packaging | PE bag packing, bulk tray or individual label packing per customer requirement |
Applications
Connecting a server or NAS backplane PCB connector to Slimline SATA SSDs and 2.5" SATA drives
Power and signal harness for industrial PCs, DVR/NVR recorders and electronic test equipment using mixed backplane interfaces
Custom storage cages or RAID modules where proprietary high-density board headers must fan out to standard SATA power and Slimline SATA connectors
Embedded and automotive systems that require reliable, vibration-resistant power and data wiring within limited PCB and chassis space
Precautions
Confirm the pin assignment of the backplane connector and drive interface before production; mis-matching 12 V / 5 V / 3.3 V rails or signal pins can damage electronic devices.
Do not exceed the rated current or ambient temperature; for higher-power designs consider thicker wire gauge or additional power pins.
Avoid sharp bends or repeated twisting near the over-molded sections to maintain insulation integrity and long-term reliability.
When routing inside metal chassis or automotive enclosures, secure the harness with clips or ties to prevent abrasion and to keep signal cables away from strong EMI sources such as power converters or motors.
