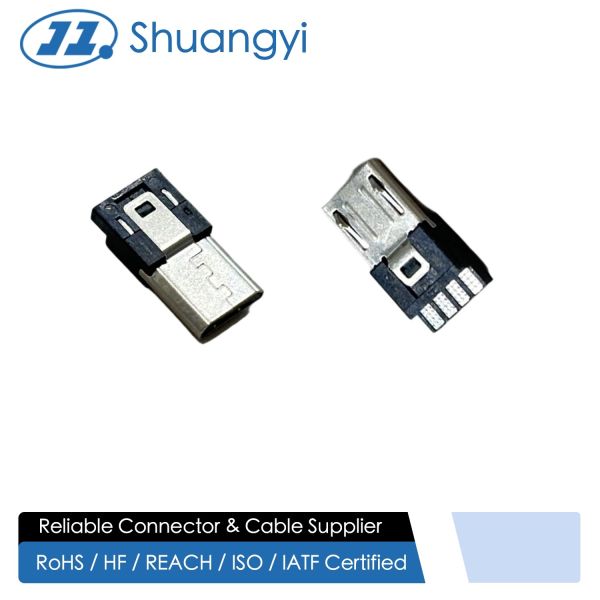

USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly
Specifications
Brand Name :
ShuangYi
Model Number :
MC-04F-A3S2A2-02LH
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.07-0.11 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Parameter Specification Product Name :
USB Micro-B Male Wire Connector (4Pin Gold-Plated)
Pin Count :
4 Pin (Front 5/Rear 4 structure per drawing)
Plating :
Contact area gold-plated G/F; Terminal Ni ≥50u''; Solder area Sn ≥80u''
Housing Material :
LCP 30% G/F, Black, UL94-V0
Shell Material :
SUS304 Stainless Steel, Nickel Plated ≥50u''
Rated Current :
1A (Pin 2/3/4), 1.8A (Pin 1 & 5)
Withstand Voltage :
500VAC / 1 minute
Insulation Resistance :
≥1000MΩ @ 500VDC
Operating Temperature :
-20°C ~ +85°C
Wire Compatibility :
Suitable for Micro-USB data/power cable assembly
Environmental :
HF compliant
Description

Product Description
This USB Micro-B Male Wire Connector is designed for reliable mobile-device charging and data-transmission applications. It features a 4-pin gold-plated contact design that ensures low contact resistance, stable signal integrity, and excellent durability. The high-temperature LCP housing and nickel-plated SUS304 shell provide strong mechanical strength, making it suitable for both consumer electronics and industrial devices. With stable electrical performance and long mating life, it is ideal for customized Micro-USB cable assemblies and PCB interface solutions.

USB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB AssemblyUSB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB AssemblyUSB Micro-B Male Wire Connector 4Pin Gold-Plated Terminal | Electronic Signal Cable Connector for Mobile Devices & PCB Assembly

Product Name USB Micro-B Male Wire Connector (4Pin Gold-Plated)
Pin Count 4 Pin (Front 5/Rear 4 structure per drawing)
Plating Contact area gold-plated G/F; Terminal Ni ≥50u''; Solder area Sn ≥80u''
Housing Material LCP 30% G/F, Black, UL94-V0
Shell Material SUS304 Stainless Steel, Nickel Plated ≥50u''
Rated Current 1A (Pin 2/3/4), 1.8A (Pin 1 & 5)
Contact Resistance ≤30mΩ
Withstand Voltage 500VAC / 1 minute
Insulation Resistance ≥1000MΩ @ 500VDC
Operating Temperature -20°C ~ +85°C
Mechanical Force Insertion ≤35N, Extraction ≥10N after 10,000 cycles
Wire Compatibility Suitable for Micro-USB data/power cable assembly
Environmental HF compliant

Application Scenarios

Mobile phones, tablets, handheld terminals

Power banks and small-power charging equipment

Smart IoT devices, wearable electronics

Consumer electronics, digital audio products

PCB wire-to-board signal and power interface assemblies

Key Advantages

Gold-plated contact area for enhanced conductivity and corrosion resistance

High reliability with 10,000-cycle mating endurance

HF-compliant materials suitable for global market requirements

Stable electrical characteristics for both data and power transmission

Customizable wire length, gauge, and connector configuration

Precautions

Ensure correct pin orientation during wire soldering to avoid functional failure

Do not exceed rated current or temperature range

Store and transport in dry, dust-free environments to protect plating surfaces

Recommended to use with certified Micro-USB cables for best performance
