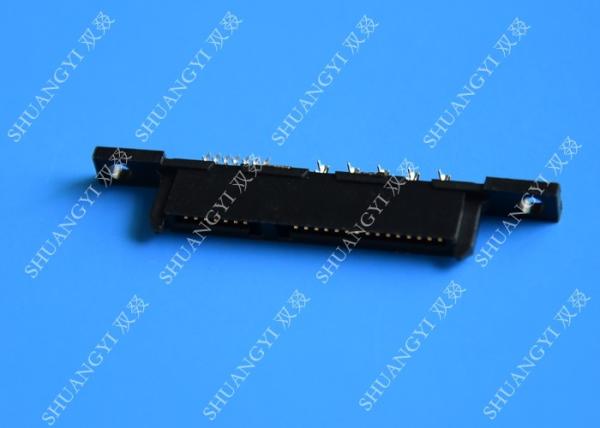

Compact 22P 125V AC SATA Data Connector , PCB SATA Female Connector
Compact 22P 125V AC SATA Data Connector , PCB SATA Female Connector
Compact 22P 125V AC SATA Data Connector , PCB SATA Female Connector
Compact 22P 125V AC SATA Data Connector , PCB SATA Female Connector
Specifications
Brand Name :
SHUANG YI
Model Number :
SATA Connector
Certification :
ISO9001/SGS/UL/RoHS/Reach
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Supply Ability :
10000 Pieces Per Day
Delivery Time :
7~10 Work days
Packaging Details :
1.Polybay 2.1000pcs of a tray 3.Or accroding to your request.
Type :
SATA Female Connector
Color :
Black
Application :
PCB, PC, Server, Set-Top-Box
Pin number :
22Pin
Voltage :
125Vac
Gender :
Female
Current :
1.5 Amps
PCB Angle :
Vertical(90 degree)
Description

Compact 22P 125V AC SATA Data Connector , PCB SATA Female

Specifications:Serial ATA Connector
1, ROHS,UL,ISO,CE
2, LCP,Gold
3, 7+15P,Male
4, Black

1.27MM0.05 SATA FEMALE SMT TYPE 7+15PIN SATA CONNECTOR

Housnig Material: LCP UL94V-0 RoHS

Contact Material: Phosphor Bronze, T=0.25mm

Contact Plated: Gold Plating in the Contact Area,And Tin Plating in the solder tail area,With 50U Min.Nickel under plating over all.

Current Rating: 0.5Amp

Contact Resistance: 30m ohms.

Insulator Resistance: 500Megohms at 500V DC Min..

Dielectric Withstanding: AC 250V for 1 minute

Operating Temp.: -40°C~+80°C

Max Processing Temp.:230°C for 30~60 seconds

260°C for 10 seconds
