OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
Specifications
Brand Name :
ZMSH
Model Number :
Sapphire Tube
Place of Origin :
China
Certification :
ROHS
Delivery Time :
2-4 weeks
Payment Terms :
100%T/T
Color :
Transparent
Growth technology :
EFG/KY
Purity :
99.995%
Size :
Customized
Anti-corrosion :
High
Length :
1-1500mm
Heat Resistance :
High
Surface Quality :
High
Description

OD5.1 ID2.0 L108.00±0.25mm Sapphire tube High temperature and wear resistance Customizable

Description of Sapphire tube:

Sapphire tube has exceptional hardness, making it highly resistant to wear and tear.OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable

The hardness of the sapphire tube is second only to diamond, making it one of the hardest materials in the world. This property makes it an excellent choice for applications where high wear resistance is required. Sapphire tube is an ideal choice for industries such as aerospace, defense, and medical equipment.

The size of the sapphire tube is customized to meet the customer's specific needs. This customization ensures that the product is suitable for various applications. The size can range from a few centimeters to several meters, depending on the customer's requirements. This customized size makes it easier to use the product in various applications.

The Character of Sapphire Tube:

1. High Strength, High Rigidity, High Anti-Abrasion, High Anti-Heat, High AntiCorrosion Characteristics, and High Anti-Plasma Characteristics.

2. Stable Dielectric Constant, Very Low Dielectric Loss, Good Electrical Insulation.

3. Excellent Light Transmission.

4. Good Thermal Conductivity and High Heat Resistance.

Form of Sapphire tube:

Compound Formula Al2O3
Molecular Weight 101.96
Appearance Sapphire Tube
Melting Point 2050 °C (3720 °F)
Boiling Point 2,977° C (5,391° F)
Density 4.0 g/cm3
Morphology Trigonal (hex), R3c
Solubility in H2O 98 x 10-6 g/100g
Refractive Index 1.8
Electrical Resistivity 17 10x Ω-m
Poisson's Ratio 0.28
Specific Heat 760 J Kg-1 K-1 (293K)
Tensile Strength 1390 MPa (Ultimate)
Thermal Conductivity 30 W/m-K
Thermal Expansion 5.3 µm/m-K
Young's Modulus 450 GPa
Exact Mass 101.948 g/mol
Monoisotopic Mass 101.94782 Da

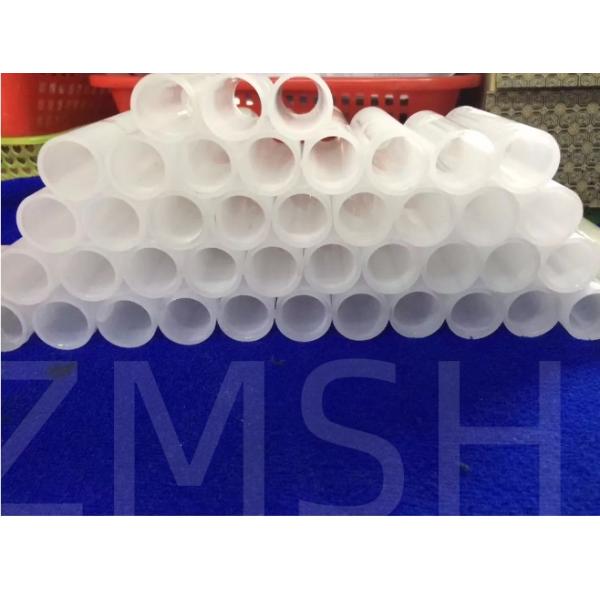

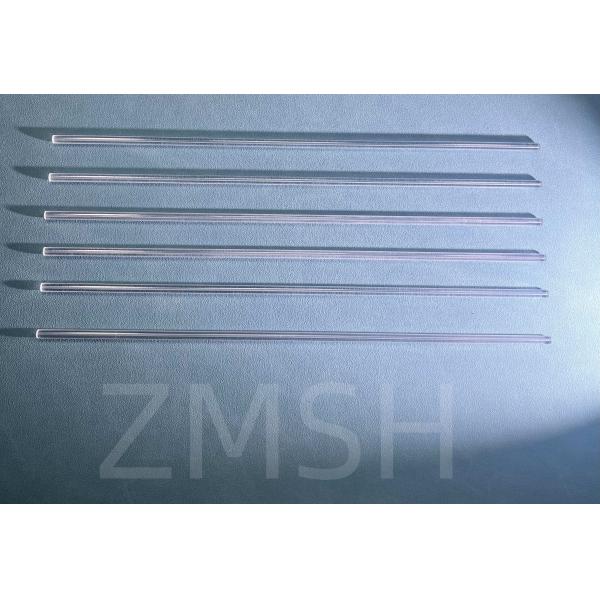

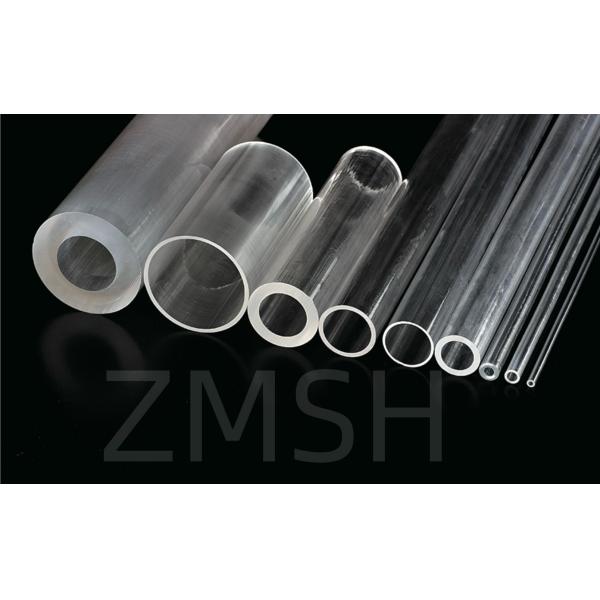

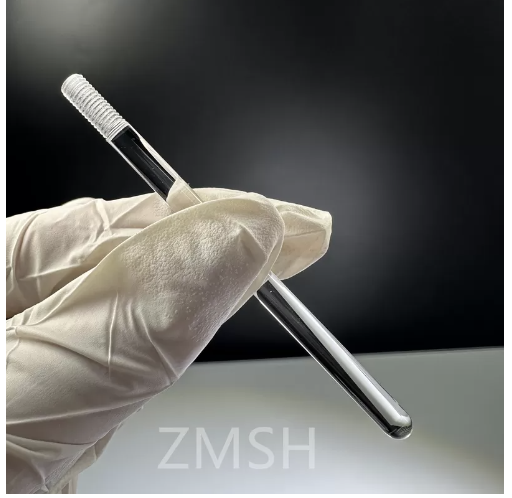

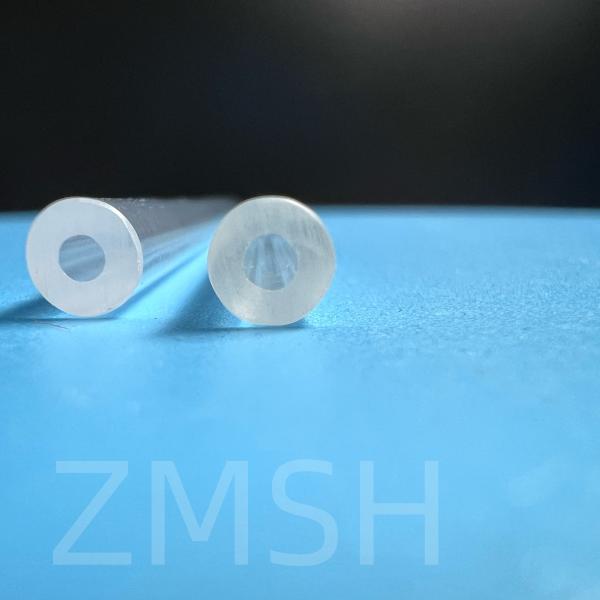

Physical Photo of Sapphire tube:

OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance CustomizableOD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable

Application of Sapphire tube:

Semiconductor Processing applications:

(HPD CVD, PECVD, Dry Etch, Wet Etch)

  • Plasma containment tubes
  • Plasma applicator tube
  • Process gas injector nozzles
  • Thermocouple protection sheath (Thermowell)
  • Water treatment/cleaning
  • Endpoint detector
  • Excimer Corona Tubes

Test and Analytical instruments:

  • Nuclear Magnetic Resonance spectroscopy (NMR)
  • Inductively coupled plasma mass spectrometry (ICP-MS)
  • Thermo-optic temperature measurement
  • Inline petroleum processing analysis
  • Mass spectroscopy
  • Biological and chemical sample analysis
  • Plugged tubes
  • Test tubes

Lamps and Lamp Envelopes applications:

  • Electronic Infra-Red countermeasures
  • Ultraviolet sterilization
  • Flashlamps
  • High-intensity lamps

Application Picture of Sapphire tube:

OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable

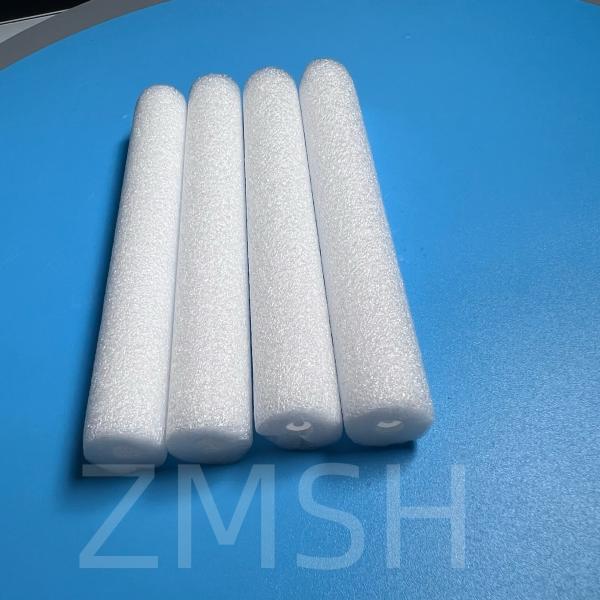

Packing of Sapphire tube:

OD5.1 ID2.0 L108.00±0.25mm Sapphire Tube High Temperature And Wear Resistance Customizable
