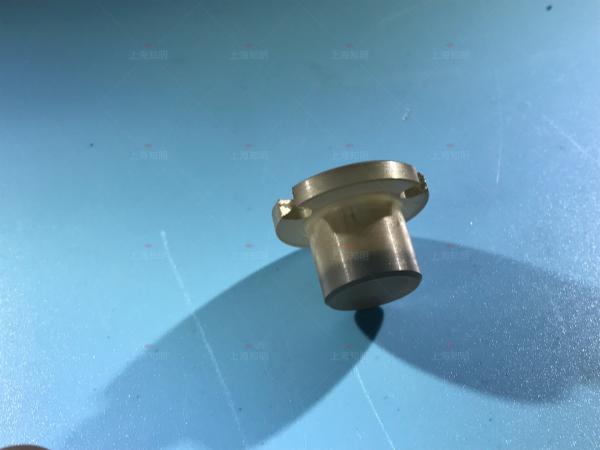

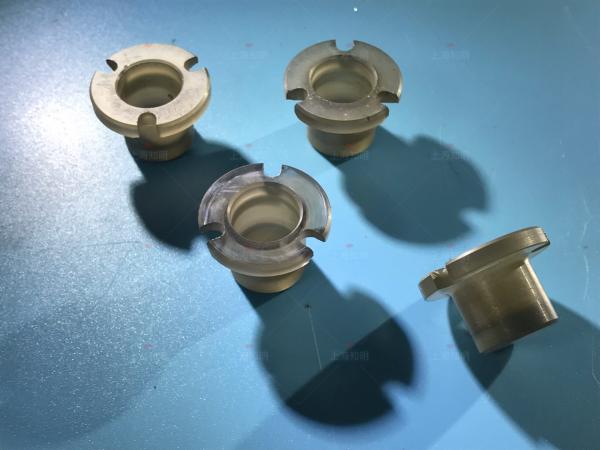

9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape
9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape
9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape
9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape
9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape
9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape
9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape
9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape
Specifications
Brand Name :
ZMKJ
Model Number :
sic parts
Place of Origin :
CHINA
MOQ :
10pcs
Price :
by case
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1-50pcs/month
Delivery Time :
1-6weeks
Packaging Details :
single wafer package in 100-grade cleaning room
Material :
SiC single crystal
hardness :
9.4
shape :
customized
tolerance :
±0.1mm
Application :
equipment component
Description

2inch/3inch/4inch/6inch 6H-N/4H-SEMI/ 4H-N SIC ingots/High purity 4H-N 4inch 6inch dia 150mm silicon carbide single crystal (sic) substrates wafers, sic crystal ingots sic semiconductor substrates,Silicon Carbide crystal Wafer/ Customzied as-cut sic wafers/ sic bearing parts

About Silicon Carbide (SiC)Crystal

Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs.

1. Description
Property 4H-SiC, Single Crystal 6H-SiC, Single Crystal
Lattice Parameters a=3.076 Å c=10.053 Å a=3.073 Å c=15.117 Å
Stacking Sequence ABCB ABCACB
Mohs Hardness ≈9.2 ≈9.2
Density 3.21 g/cm3 3.21 g/cm3
Therm. Expansion Coefficient 4-5×10-6/K 4-5×10-6/K
Refraction Index @750nm

no = 2.61

ne = 2.66

no = 2.60

ne = 2.65
Dielectric Constant c~9.66 c~9.66
Thermal Conductivity (N-type, 0.02 ohm.cm)

a~4.2 W/cm·K@298K

c~3.7 W/cm·K@298K
Thermal Conductivity (Semi-insulating)

a~4.9 W/cm·K@298K

c~3.9 W/cm·K@298K

a~4.6 W/cm·K@298K

c~3.2 W/cm·K@298K
Band-gap 3.23 eV 3.02 eV
Break-Down Electrical Field 3-5×106V/cm 3-5×106V/cm
Saturation Drift Velocity 2.0×105m/s 2.0×105m/s

9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape

High purity 4inch diameter Silicon Carbide (SiC) Substrate Specification

About SiC Substrates Applications
9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape
9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape9.4 Hardness Silicon Carbide Wafer Single Crystal Bearing Parts Customized Shape

About ZMKJ Company

ZMKJ can provides high quality single crystal SiC wafer ( Silicon Carbide ) to electronic and optoelectronic industry . SiC wafer is a next generation semiconductor material , with unique electrical properties and excellent thermal properties , compared to silicon wafer and GaAs wafer , SiC wafer is more suitable for high temperature and high power device application . SiC wafer can be supplied in diameter 2-6 inch , both 4H and 6H SiC , N-type , Nitrogen doped , and semi-insulating type available . Please contact us for more product information .

FAQ:

Q: What's the way of shipping and cost?

A:(1) We accept DHL, Fedex, EMS etc.

(2) it is fine If you have your own express account ,If not,we could help you ship them and

Freight is in accordance with the actual settlement.

Q: How to pay?

A: T/T 100％ deposit before delivery.

Q: What's your MOQ?

A: (1) For inventory, the MOQ is 1pcs. if 2-5pcs it's better.

(2) For customized commen products, the MOQ is 10pcs up.

Q: What's the delivery time?

A: (1) For the standard products

For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 -4 weeks after you order contact.

Q: Do you have standard products?

A: Our standard products in stock. as like substrates 4inch 0.35mm.
