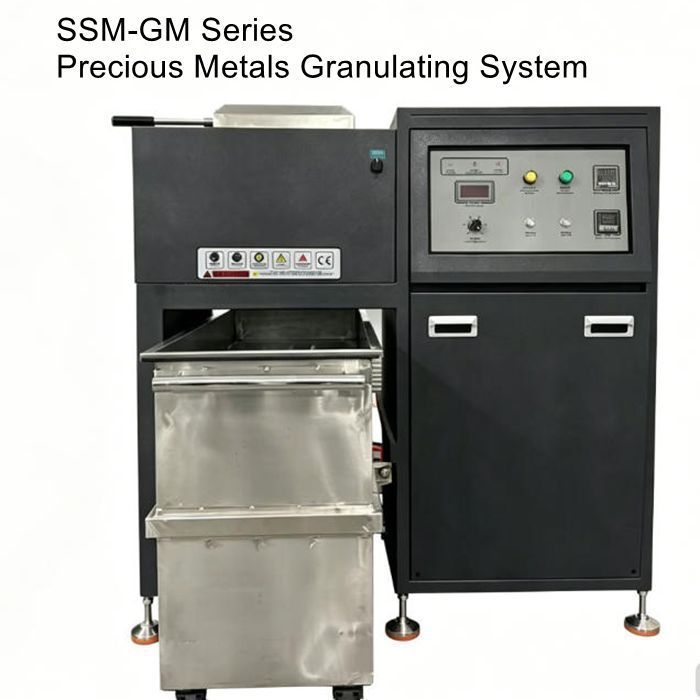

150kg Precious Metal Granulating System,60KW 380V High-Capacity Induction Pellet Equipment

1. Product Overview

2. Working Principle

1. Melting & Constant Temperature Control

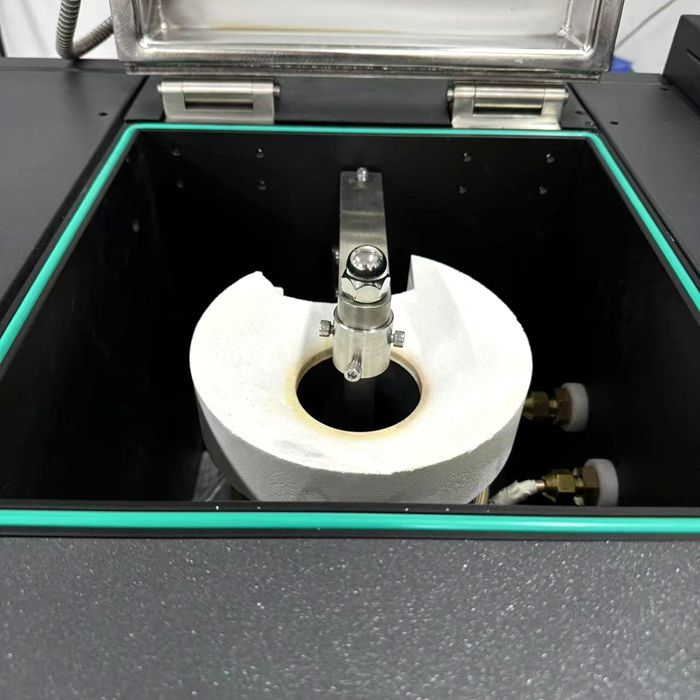

   Put gold, silver, copper or alloy raw materials into the crucible. The built-in high-frequency induction heating unit rapidly melts metals, while the ±1℃ closed-loop PID temperature controller stabilizes molten metal temperature.
2. Optional Argon Anti-Oxidation Treatment
   Turn on the optional argon protection system to fill the sealed heating chamber with inert gas, isolating air oxygen to avoid dark oxidation spots on metal pellets and reduce crucible wear.
3. Water Cooling Spherical Pellet Forming
   Homogenized liquid metal flows through precision nozzles and drips into the matched circulating water cooling tank. High-temperature metal droplets instantly cool and solidify into standard round precious metal pellets.
4. Finished Pellet Collection
   Once the granulation cycle finishes, you can directly collect the finished spherical pellets for subsequent lost-wax jewelry casting or alloy research tests.

3. Core Product Features

1. Complete Capacity Range for All Production Scenarios
   Full series covers 2kg–150kg gold equivalent models, from lab small-sample test machines to medium industrial granulation equipment, one series meets all your output needs.
2. ±1℃ Ultra-precise Constant Temperature Control
   Advanced PID temperature control module limits temperature fluctuation within ±1℃, ensures consistent fluidity of molten metal, uniform pellet dimension and low defective rate.
3. Optional Argon Inert Gas Protection Module
   Customizable argon shielding device cuts precious metal oxidation loss during melting, extends crucible service life and lowers long-term consumable replacement costs.
4. Full Water-cooled Heating Chamber & Cover
   Whole heating cavity and cover adopt circulating water cooling design, effectively dissipating heat during long-hour continuous operation without overheating shutdown.
5. Mature German Granulation Craft + Imported Core Parts
   Adopt proven German granulation technology; all key electrical, pneumatic and control components are imported top international brands, delivering stable operation and ultra-low failure rate.
6. Compact Integrated All-in-one Structure
   Machine host and cooling water tank are split matched design, occupy small workshop space; touch control panel with simple operation logic, easy daily cleaning and maintenance.
7. Wide Material Compatibility
   Perfectly process gold, silver, copper and all types of precious metal alloys, applicable for jewelry raw material production and metal alloy lab research.

4. Product Competitive Advantages

1. Flexible Capacity Matching:8 kinds of capacity specifications (2kg to 150kg) to choose freely, no matter you run a small jewelry studio or medium refinery, there is a suitable model for you.
2. Cost-saving Anti-oxidation Function:Optional argon protection greatly reduces the loss of high-value precious metals, and prolong crucible service cycle, effectively saving your raw material and consumable costs.
3. Stable Production & Low Waste Rate



   Precise temperature control ensures uniform spherical pellets, reduces irregular defective pellets, and improves your finished product yield rate.
4. Small Floor Space, High Production Efficiency:Compact body design saves workshop area, fast induction heating shortens single batch melting time, boosting your daily production volume.
5. Global Voltage Customization Support:We can adjust the machine’s input voltage to match the power standards of all countries around the world, convenient for overseas import and use.

5. Technical Parameters Table (150kg Classic Models)

6. Application Fields

This granulating system is widely adopted by jewelry production factories, precious metal recycling refineries, bullion smelting plants and metal alloy processing foundries. It can melt and granulate gold, silver, copper and all kinds of precious metal alloys into standard spherical pellets for subsequent casting and refining.

7. FAQ

Q1: What capacity specifications are available in this SSM-GM granulator series?

Q2: Is the argon gas protection function standard configuration?

Q3: What kinds of metals can this granulating system process?

Q4: How long is the official warranty period of the machine?

Q5: Can you customize the machine’s input voltage for my country’s power grid?

Why Choose Sansongmelt?

1. Custom Melting & Casting Solutions:We provide one-stop, tailored melting and casting solutions for your production needs, from equipment selection to process guidance.
2. 2-Year Warranty:We offer an industry-leading 2-year warranty for all equipment — 1 year longer than most competitors, protecting your investment long-term.
3. Strong 24/7 After-sales Support:Our professional after-sales team is available online 24 hours a day to solve your problems quickly and minimize production downtime.
4. Factory Direct Price:As a direct manufacturer, we eliminate middleman markup to offer you competitive, preferential prices.
5. Fast & Reliable Delivery:Sufficient inventory of all melting equipment ensures short lead times, so you receive your machines as soon as possible.
6. AAAAA Enterprise Qualification:We hold the government-issued AAAAA enterprise title, proving our outstanding strength and credibility in the industry.
7. Strong R&D Team:Our R&D team is composed of top industry experts, committed to delivering leading and customized technical solutions.
8. ISO / CE / SGS Certified:All machines are certified by professional, authoritative bodies (ISO, CE, SGS), guaranteeing reliable quality and compliance with global standards.
