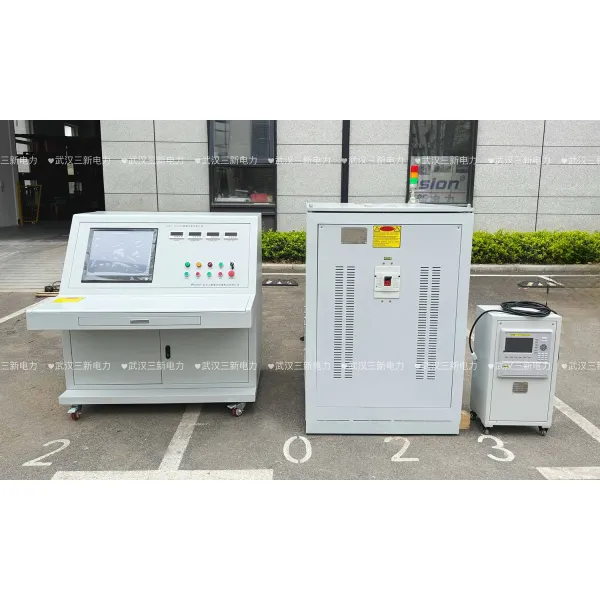

Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Specifications
MOQ :
1
Price :
1000
Place of Origin :
Chnia
Brand Name :
Sansion
Certification :
CE SGS ISO9001
Packaging Details :
plywood case
Payment Terms :
TT LC
Model NO. :
DDG
Max Diameter of Workpiece :
900mm
Mass Scope of Workpiece :
900kg
Type :
Temperature Rise Test System
Maxcapacity :
>1000KN
Accuracy Grade :
1
Load Way :
Electronic Load
Loading Method :
Static Load
Display :
Needle
Control :
Manual Control
Weight :
0-100Kg
Power Source :
AC380V
Oil Cylinder Position :
Under
Output Current :
500~10000A
Input Voltage :
220V or 380V
Transport Package :
Plywood Case
Specification :
1000mm*600mm*560mm
Trademark :
Sansion
Origin :
China
HS Code :
9030339000
Production Capacity :
100 Units/Month
Description
Product Description
High-current Temperature Rise Test Equipment For Motor Protector Testing
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
General Information:
DDG Series High-current Temperature Rise Test Equipment is suitable for current load test and temperature rise test on various circuit breakers, switch gears, CT/PT and others electric equipments. DDG Primary Current Injection Test Set is widely used in power division and industry mining enterprises.
Features:
√ Intuitive reading: This instrument adopts a digital meter head that can directly display the test values of current, voltage, and temperature factor, which is convenient for experimental observation and recording

√ Accurate measurement: With high measurement accuracy and accurate test values

√ Accurate protection function: Fully digitized processing, the setting of overcurrent protection value and timing current are both implemented digitally, making the protection more accurate

√ Operating modes: manual and automatic

√ Intelligence: Automatically generate curves and standard reports

√ Current recovery tracking function: As the current output time increases, the output circuit heats up, the circuit impedance increases, and the current decreases accordingly. At this time, the software will automatically track the current to the set current

√ Automatic control function for temperature rise test: This function is used for temperature rise test. The temperature rise current and time are set, and the software can achieve automatic test without personnel monitoring. After the test is completed, the results are automatically saved

√ Temperature inspection function: 32 temperature inspections can record temperature according to the set sampling time and automatically generate temperature rise curves

√ Switch protection function: This function is mainly used for measuring the overcurrent action current and action time of overcurrent components such as switchgear and thermal relays. The action time measurement method is divided into contact discrimination and current on/off discrimination. (Contact discrimination: It is necessary to connect the instrument back to a normally open or normally closed contact, and the instrument records the action time through the change of the contact. Current on/off discrimination: It is not necessary to connect the instrument back to the action contact, and the instrument automatically detects the presence or absence of current. The current sometimes starts timing, and the timing stops when the current is lost.)
Technical Specifications:
√ Input AC two-phase 380V 50Hz

√ Output single-phase 0-20kA AC high current; The current can be smooth, stable, and continuously adjustable, with an accuracy higher than 0.2 level

√ The output current is a standard sine wave with minimal glitches, better than the required specifications of the power system, and the ripple factor is less than 0.3%

√ Output current mode: True RMS continuously adjustable

√ Output waveform: Standard sine wave

√ Output opening voltage: 10V/15V/20V

√ Current stability: 0.2%

Current waveform distortion: THD 1%

√ Protection settings: overcurrent, overvoltage, overheating

√ The current action time of the tested component can be measured, and the locking action, time normally open, and normally closed contacts can be synchronously recorded for automatic discrimination

√ Time measurement range: 0.01S -99999.99S, accuracy: 0.001S

√ Temperature rise probe: 12/24/48/64 channels

√ Temperature rise range: 10-800 ℃

√ Note: Non standard customization is possible
Mold
Reted Capacity (KVA)
Rated Input
Reted Output
Regulator
Current Injector
Current (A)
Voltage (V)
Current (KA)
Voltage (V)
DDG-3/500
3
3
13.6
220
0.5
6
DDG-9/1500A
9
9
40.00
220
1.5
6
DDG-18/3000
18
18
45.00
400
3
6
DDG-24/4000
24
24
60.00
400
4
6
DDG-30/5000
30
30
75.00
400
5
6
DDG-90/15000
90
90
225.00
400
15
6
To be designed according to the detail technical requirements.
Company Profile
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Certifications
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Packing & Delivery
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
Customer Visit
Heavy Current Temperature Rise Test Equipment 380V for Motor Protector Testing
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
