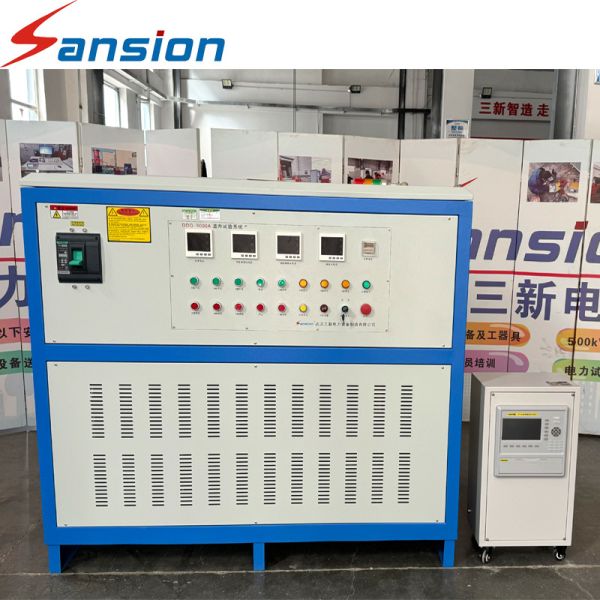

Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Specifications
MOQ :
1
Price :
1000
Place of Origin :
Chnia
Brand Name :
Sansion
Certification :
CE SGS ISO9001
Packaging Details :
plywood case
Payment Terms :
TT LC
Model NO. :
DDG
Max Diameter of Workpiece :
900mm
Mass Scope of Workpiece :
900kg
Type :
Temperature Rise Test System
Maxcapacity :
>1000KN
Accuracy Grade :
1
Load Way :
Electronic Load
Loading Method :
Static Load
Display :
Needle
Control :
Manual Control
Weight :
0-100Kg
Power Source :
AC380V
Oil Cylinder Position :
Under
Output Current :
500~10000A
Input Voltage :
220V or 380V
Transport Package :
Plywood Case
Specification :
1000mm*600mm*560mm
Trademark :
Sansion
Origin :
China
HS Code :
9030339000
Production Capacity :
100 Units/Month
Description
Product Description

7000A Primary Current Injection Test Set Automated High-Current Temperature Rise Test System
General Information:
DDG Series Primary Current Injection Test Set is controlled by a special system control board, and the Vinlon series touch screen is used as the man-machine interface to realize the automatic high-current detection equipment.
By installing different modules, this series of equipment can realize different high current output, temperature measurement, and other experiments. Manual selection and external computer can be achieved through the man-machine interface. Automatic operation, view temperature data and other operations and simple data processing.
There are data export and external printer functions to export or print data for further processing.
Features:

Display & Interface

  • Large Screen LCD: Clearly displays real-time data, including current, time, status, and operational prompts, for intuitive and easy reading.

  • Fully Chinese Interface: Simple and straightforward operation, adaptable to various applications.

  • Dual Operation Modes: Supports both touch screen and conventional button controls for intuitive, fast, and user-friendly operation.

Calibration & Control

  • Digital Calibration: Utilizes a fully digital calibration system, eliminating the need for old potentiometer adjustments, making on-site use highly convenient and easy to control.

  • Status Guidance: Features status reminders and guided operation, enabling skilled control even without a manual.

  • Pause Function: During automatic control, this function allows pausing at any point in the current rise/fall process. Pause duration can be flexibly controlled by the operator for convenient observation of the test status.

  • Intelligent Timing:

    • Automatic Timing: Automatically starts/stops timing based on test status, with timing paused during interruptions and resumed when testing continues.

    • Manual Timing: In manual control mode, the timer can be started manually.

  • Manual Control Mode: Similar to traditional manual current adjustment, current increase/decrease is controlled via buttons. The device automatically detects upper/lower limits, includes overcurrent protection, and allows full manual control throughout the testing process.

  • Emergency Control: Equipped with stop/emergency buttons for instant manual intervention.

Performance & Safety

  • Intelligent Current Ramping: Automatically slows the current rise/fall speed as it approaches the target value for precise control.

  • Data Export (Select Models): Test data can be saved via USB drive for further processing on a computer.

  • Real-Time Protection: Provides immediate, accurate, and reliable protection in case of faults such as overcurrent.

  • Anti-Interference Technology: Combines hardware and software anti-interference measures, ensuring stable performance and strong resistance to disturbances. No abnormal phenomena such as crashes, black screens, or distorted displays occur during testing.

Technical Specifications:
Rated capacity (common parameters):105KVA*3

Input current:AC 0 ~ 276A

Output voltage:AC 0 ~15V

Output current:AC 0 ~ 7000A*3

Voltage measurement accuracy:0.5 %FS ± 3 word

Current measurement accuracy:0.5 %FS ± 3 word

Length of time:0 ~ 999S

Supply voltage: 415V± 5% 50hz

Company Profile
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Certifications
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Packing & Delivery
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
Customer Visit
Fully Automated Temperature Rise Test Device Touch Screen Control High Current
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
