380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
Specifications
MOQ :
1 Set
Price :
US $1,400-13,800 /
Place of Origin :
China
Brand Name :
Sansion
Certification :
CE/CNAS/ISO9001
Packaging Details :
Plywood Case
Payment Terms :
L/C T/T
Supply Ability :
100 Units/Month
Model NO. :
SXGK
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Strength Testing Machine
Maxcapacity :
>1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual Control
Weight :
0-100Kg
Power Source :
AC220V
Oil Cylinder Position :
Under
Input :
3 Phase 4 Line AC 380V
Input Frequency :
50Hz/60Hz
Test Project 1 :
Electrical Function Test
Test Project 2 :
Contact Resistance Test
Test Project 3 :
Trip Coil Test
Test Project 4 :
Close Coil Test
Test Project 5 :
Protection Relay Tes
Test Project 6 :
Current Transformer Tes
Test Project 7 :
Voltage Transformer Test
Test Project 8 :
Insulation Resistance Te
Test Project 9 :
Hi-Pot Test
Test Project 10 :
Mechanical Operation Test
Transport Package :
Plywood Case
Specification :
ISO9001 SGS
Trademark :
Sansion
Origin :
China
HS Code :
9030899090
Production Capacity :
100 Units/Month
Description
Product Description

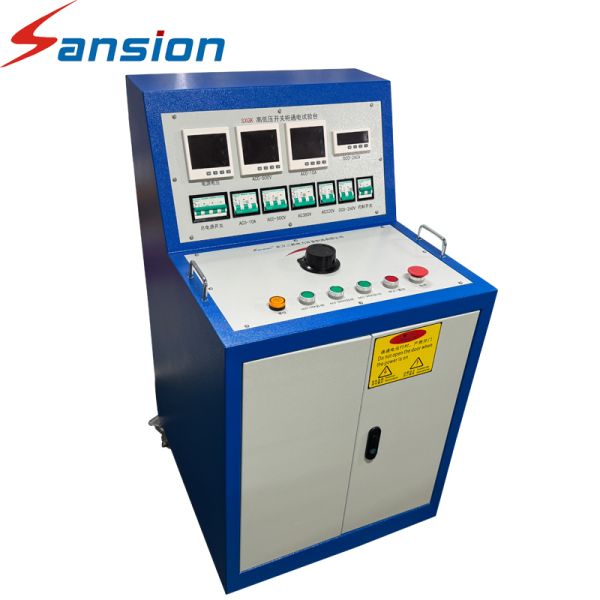

AC/DC Switchgear Test Bench For High-Low Voltage Switchgear Test Set Hi-Pot Test

General Information:
SXGK Series HV/LV Switch Cabinet Test Bench can be used for measuring the circuit resistance of high and low voltage switches, measuring insulation resistance, conducting AC withstand voltage tests, withstand current tests, testing the operating characteristics of circuit breakers, and conducting various power on tests on high and low voltage switchgear before leaving the factory. It can provide various AC and DC power sources, facilitating various testing projects. Each system can be connected to achieve comprehensive control on the test bench.
Features:
√ Reading directly: Digital meters to display current, voltage, power factor test value.

√ Measuring accurately: High precision, test value is accurate.

√ Full protections: Each circuit is with air switch protection.

√ Portable: Small size, light weight, easy to move.
Main Technical Specifications:
√ Input: 3 phase 4 line AC 380V

√ Output voltage and current:
3 phase AC 0-50A output (10V, adjustable) one group
3 phase AC 100V output (fixed value) one group

√ AC operating voltage output is AC 0-380V, 220V, the current is conventional and adjustable.

√ DC operating voltage output DC 0-300V adjustable.

√ Single phase AC 220V output (fixed value, plug type) two groups.

√ 3 phase 4 line AC 380V output (fixed value, wiring port) one group.

√ Necessary output units to be increased output protection, and equipped with air switch.

√ Power supply: AC 110V/115V/120V/127V/220V/230V/240V is optional

√ Input frequency: 50Hz/60Hz is optional
Test Project Requirements:
√ Measurement of circuit resistance: 0~100AV/200A, measurement range: 0~2mQ/20mg

√ Measurement of insulation resistance 500~2500V
√ Voltage withstand test 0.4kV/10kV and 35kV

√ Short time withstand current capability test (0~2000A)

√ Testing of various relays and contactors

√ Circuit breaker opening and closing time, speed characteristic test

√ High and low voltage switch on/off test
Company Profile
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
Customer Visit
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
Certifications
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
Packing & Delivery
380V AC DC Switchgear Testing Equipment For High Low Voltage Switchgear Test
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.

Q6:In which fields can your product be applied?
A: Our services span key industries including Power, Railway, Energy Conservation & Environmental Protection, Water Conservancy, Petrochemicals, and Aerospace. Many of our products incorporate advanced international technologies and rank among the best in China. They have consistently excelled in national high-voltage testing competitions and earned widespread acclaim from our partners.
