Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Specifications
MOQ :
1 Set
Price :
645
Place of Origin :
China
Brand Name :
Sansion
Certification :
CE/CNAS/ISO9001
Packaging Details :
Plywood Case
Payment Terms :
L/C T/T
Supply Ability :
100 Units/Month
Model NO. :
SXNYZ
Max Diameter of Workpiece :
900mm
Mass Scope of Workpiece :
<900kg
Type :
Safety Tool Testing Device
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
LCD Display
Control :
Computer Control
Weight :
0-100Kg
Power Source :
AC 110V/220V at Customized
Oil Cylinder Position :
No
Voltage Measuring Error :
<±(0.2%U+0.02%Umax) U Is Reading Value, Umax Is up
Current Measuring Error :
<±(0.2%I+0.02%Imax) I Is Reading Value, Imax Is up
Leakage Current Measuring Error :
±(0.5%I+2digits), I Is Reading Value
Test Subject 1 :
Hot Stick / Live Line Tool Test
Test Subject 2 :
Insulating Glove & Sleeve Test
Test Subject 3 :
Dielectric Overshoe & Mat Test
Test Subject 4 :
Voltage Detector / Phaser Test
Test Subject 5 :
Insulating Blanket Test
Transport Package :
Plywood Case
Specification :
Customized
Trademark :
Sansion
Origin :
China
HS Code :
9030339000
Production Capacity :
100 Units/Month
Description
Product Description

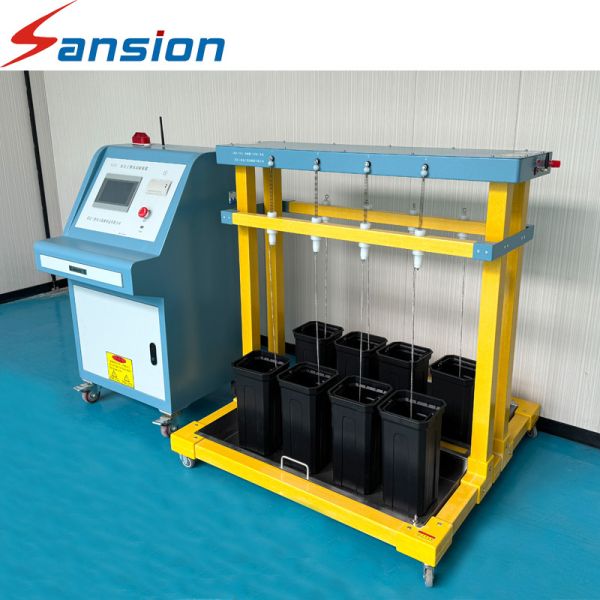

Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester

General Information:
SXNYZ Sereis is widely used in testing including electric clothes, trousers, carpets, sleeves, rubber pipesand including testing of transformers, switchgear, cables, capacitors, aerial motors platforms, hot stickbucket bricks, vacuum bottles and other related equipment like vacuum interrupters, blankets, ropesgloves,hydraulics hose,instruments transformers generators.
Features:
√ 8 ways measuring output: high voltage, low voltage current and 6 ways leakage current.

√ HV voltage, LV current and 6 ways leakage current can be displayed real time, to detectthe unqualified boots (gloves) exactly, Test time and result can be displayed directly.

√ Full protecting function: over-voltage/current, output voltage/LV current limitation, leakage currentlimitation and test time could be set as operator's different using purpose.

√Anti-interference designation, high stability with sound-light alarm.*Full digital calibrating instead of old potentiometer, to enhance the safety and reliability of theequipment.

√ During testing process, press Exit button to quit any tests. Press Emergency button if any abnormahappened.
Specifications:
Rated capacity:
3kVA/5KVA or at customized
Input Voltage:
AC220V/380V±10%50Hz±1
Output Voltage:
0-100KV at customized
Rating
100%rated-1minute , 50%-continuous
HV Source
Testing Transformer
Output Control
Manual/Electric driving/Auto control
Timing Rang
0-999s
Company Profile
About Sansion
Sansion Power Electric Co., Ltd was established in 2005, a technocrat who have rich experience of more than 10 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.

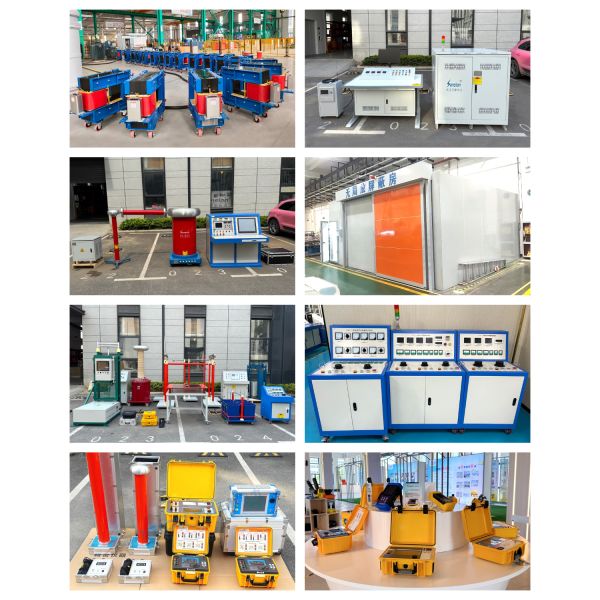

Main products:
HV Hipot Test Set System
Transformer Test Equipment
HV Switchgear Test Set
Relay Protection Tester
CT/PT Tester
SF6/Oil Tester
Transmission Line Test System
Insulation Resistance Tester
Earth Resistance Tester
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Customer Visit
From the date of order placing, we usually need 3-7 working days to manufacturing. Located in Wuhan City, the provincial capital of China, Sansion Power is easy to ship the package by the air or ocean. Sansion Power also can provide OEM service according your customized. We are sincerely looking forward to cooperate with you from all the countries of the whole world.
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Certifications
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and etc, now we have more than 60 employees including 20 technical engineers. We have obtained the ISO9001 quality system certification and all products strictly conform to the international IEC or Chinese state standards.
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Packing & Delivery
Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester

Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
