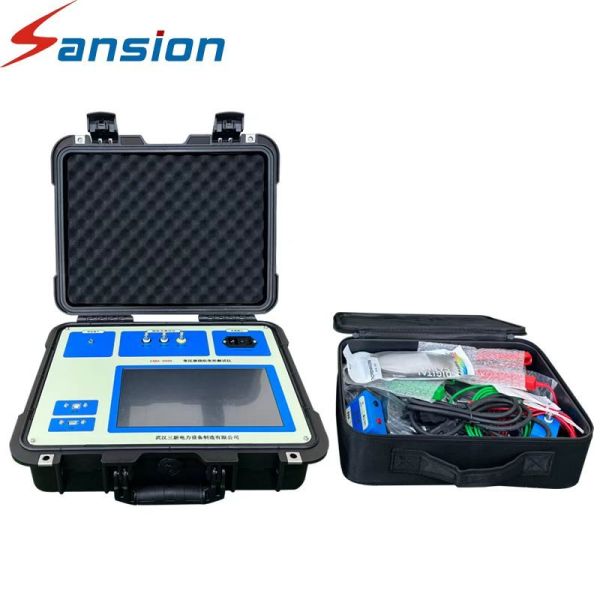

High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
Specifications
MOQ :
1 Set
Price :
2400
Place of Origin :
China
Brand Name :
Sansion
Certification :
CE/CNAS/ISO9001
Packaging Details :
Plywood Case
Payment Terms :
L/C T/T
Supply Ability :
100 Units/Month
Model NO. :
SXBR-Z
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Transformer Winding Deformation Tester
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual Control
Weight :
0-100Kg
Power Source :
AC220V
Oil Cylinder Position :
Without
Test Subject 1 :
Transformer Winding
Test Subject 2 :
Winding Deformation
Test Subject 3 :
Winding Displacement
Test Subject 4 :
Mechanical Integrity
Test Subject 5 :
Core
Test Subject 6 :
Inductance
Test Subject 7 :
Capacitance
Test Subject 8 :
Impedance
Transport Package :
Plywood Case
Specification :
ISO9001 SGS
Trademark :
Sansion
Origin :
China
HS Code :
9030332000
Production Capacity :
100 Units/Month
Description
Product Description
High Voltage Instruments Digital Sweep Frequency Response Analyzer Transformer Winding Deformation Tester

General Information:
After the completion of transformer design and manufacturing, its internal structure and various parameters remain basically unchanged, so the frequency domain response of each line is also determined accordingly. The coupling degree of the three-phase frequency domain response curve of a normal winding transformer is basically the same. When a transformer experiences inter turn or inter phase short circuits during testing, short circuits or other faults during operation due to electromagnetic tension causing coil displacement, and collisions during transportation causing relative coil displacement, these factors will cause changes in the distribution parameters of the transformer and its frequency domain response. The degree of deformation of the transformer can be determined based on the frequency domain response curve.

Based on the above ideas and advanced measurement technology, SXBR-Z Series Transformer Winding Deformation Tester, which can accurately draw the frequency domain response curves of each phase. By comparing the horizontal and vertical measurement curves, the degree of transformer deformation can be accurately determined.
Features:
√ Adopting advanced DDS frequency scanning technology.
√ Adopting dual power supply: AC 220V+10% mains power supply, 6V5AH internal power supply battery.
√ Designed with high-speed and highly integrated microprocessors.
√ The amplitude of the output sine wave can be set through software.
√ Dual channel 16 bit AD sampling.
√ 8-inch color touch screen with adjustable brightness.
√ Powerful upper computer software for curve analysis, printing, and generating text documents.
√ USB 2.0 interface, supports data upload and online testing.
Specifications:
6 Modes scan method:
1K-1000KHZ_1.0 source point 1KHZ 1000
1K-1000KHZ_0.5 source point 0.5KHZ 2000
1K-2000KHZ_1.0 source point 1KHZ 2000
1K-2000KHZ_0.5 source point 0.5KHZ 4000
100HZ - 1000KHZ source point 1440
100HZ - 2000KHZ source point 2440
Measurement range:
(-100dB)-(+20dB)
Measurement precision:
0.1dB
Frequency sweeping precision:
Less than 0.01%
Signal input impedance:
1MΩ
Signal output impedance:
50Ω
Same test repetition:
99.5%
Language:
Switch between Chinese and English
Company Profile
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
Certifications
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
Packing & Delivery
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
Customer Visit
High Voltage Transformer Winding Deformation Tester With USB 2.0 Interface
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
