Product Description

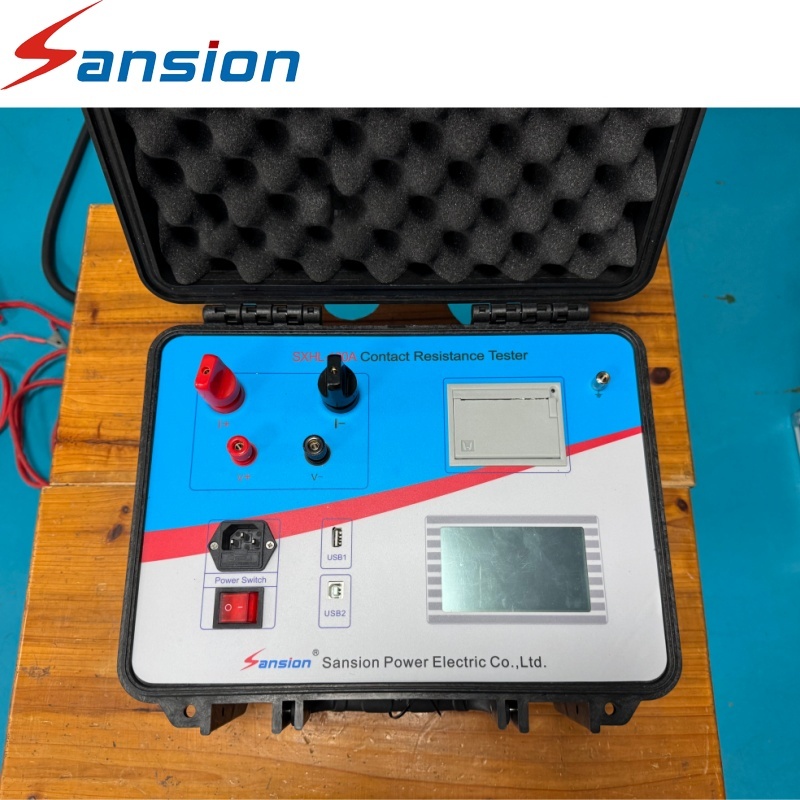

SXHL-100A Loop Resistance Tester

The SXHL-100A Loop Resistance Tester is intended for routine inspection and maintenance of electrical connection points where contact resistance needs to be verified. It can be used by power equipment manufacturers, testing laboratories, maintenance teams, and electrical service organizations for circuit breaker and busbar testing.

With a 100A constant current output, the instrument provides stable conditions for resistance measurement. Four terminal measurement technology helps improve accuracy, while the LCD touch screen offers a user-friendly operating experience for engineers performing repeated electrical tests.

Product Parameters

Product Advantages

1. The 100A output makes the tester suitable for routine contact resistance checks on power electrical equipment.
2. Four terminal measurement technology supports more accurate evaluation of low resistance electrical connections.
3. Stable current generation helps improve measurement consistency when performing repeated tests.
4. The touch screen interface reduces operating complexity for laboratory and maintenance personnel.

Application Scenarios

1. Electrical Equipment Manufacturing
2. Power Testing Laboratories
3. Circuit Breaker Routine Testing
4. Substation Maintenance Services
5. Busbar Connection Inspection
6. Electrical Equipment Commissioning

FAQ

Q1: Who can use this loop resistance tester?
A: It is suitable for electrical equipment manufacturers, testing laboratories, maintenance teams, and commissioning personnel.

Q2: What is the maximum test current?
A: The instrument provides a maximum test current of 100 A.

Q3: Can it be used for routine testing?
A: Yes. It can be used for routine inspection and resistance measurement of electrical connection points.

Q4: What makes the measurement more accurate?
A: The four terminal measurement technology helps reduce the influence of test lead resistance on the measurement.

Q5: Is a computer required for operation?
A: No. The instrument has an integrated LCD touch screen for test operation and result viewing.
