540 kVA 270 kV Variable-Frequency AC Resonant Test System and equipment for Transformer Cable GIS and High-Voltage Insulation Withstand Testing
540 kVA 270 kV Variable-Frequency AC Resonant Test System and equipment for Transformer Cable GIS and High-Voltage Insulation Withstand Testing
540 kVA 270 kV Variable-Frequency AC Resonant Test System and equipment for Transformer Cable GIS and High-Voltage Insulation Withstand Testing
540 kVA 270 kV Variable-Frequency AC Resonant Test System and equipment for Transformer Cable GIS and High-Voltage Insulation Withstand Testing
540 kVA 270 kV Variable-Frequency AC Resonant Test System and equipment for Transformer Cable GIS and High-Voltage Insulation Withstand Testing
540 kVA 270 kV Variable-Frequency AC Resonant Test System and equipment for Transformer Cable GIS and High-Voltage Insulation Withstand Testing
Specifications
Rated voltage :
270 kV
Model Number :
SXBP
Rated capacity :
540 kVA
Brand Name :
Sansion Power
Test objects :
Transformer, Cable, GIS, Reactor
MOQ :
1
Technology :
Resonance principle
Delivery Time :
30 Working Days
Testing function :
Insulation verification
Payment Terms :
L/C,T/T
Protection system :
Intelligent monitoring
Packaging Details :
Plywood Case
Test type :
AC Resonant
Certification :
CE/SGS/EMS/ISO 9001
Frequency type :
Variable Frequency
Place of Origin :
China
Description
Product Description

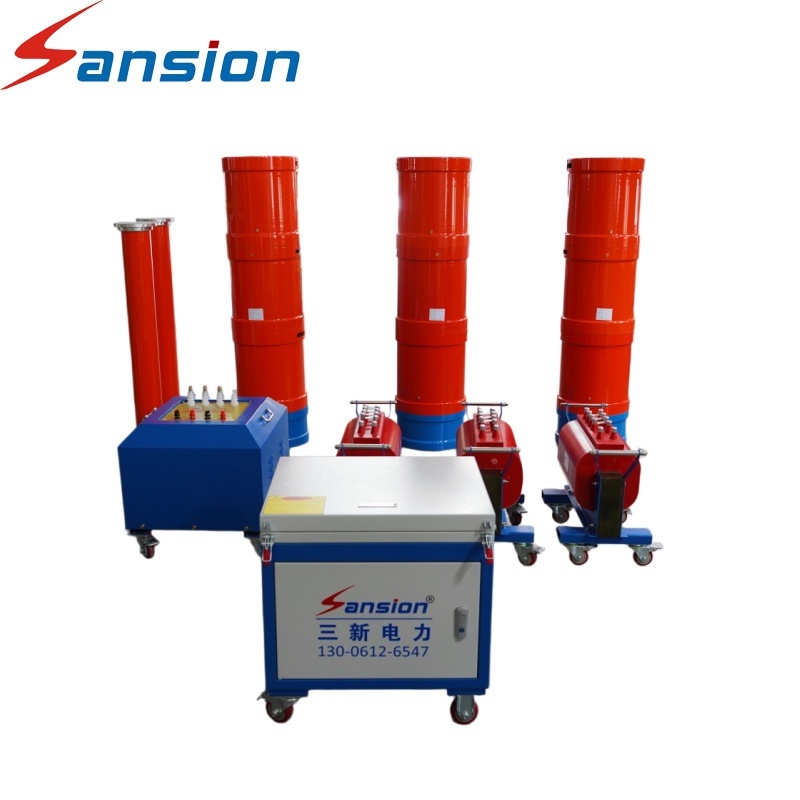

SXBP-540kVA 270kV Variable Frequency AC Resonant Test System

The SXBP-540kVA 270kV Variable Frequency AC Resonant Test System is a high voltage testing solution designed for insulation verification of large electrical equipment. Based on variable frequency resonance technology, the system provides a stable AC voltage source for withstand testing, helping users evaluate insulation strength and electrical reliability under controlled test conditions.

This AC Resonant Test System is suitable for power equipment manufacturers, utility companies, and engineering testing organizations. It can be applied to transformers, high voltage cables, GIS, reactors, and other electrical apparatus requiring AC insulation assessment. Through intelligent control, flexible configuration, and reliable protection functions, the system supports factory inspection, commissioning tests, and preventive maintenance projects, helping reduce potential insulation failures before equipment operation.

Product Applications

Power Transformer Testing

The system is widely used in transformer factories and testing centers to perform AC withstand tests and insulation verification. It helps manufacturers confirm product performance and improve quality control during production.

Cable and GIS Insulation Testing

For high voltage cable systems and GIS equipment, the system provides a stable testing method for acceptance inspection, installation verification, and insulation condition analysis.

Substation Commissioning Projects

The equipment can be applied in substations and power facilities for testing switchgear, reactors, and other high voltage components before energization.

Product Advantages

  • 1. High Voltage Testing Capability

    The system provides reliable AC withstand testing performance for medium and high voltage electrical equipment with complex insulation requirements.

  • 2. Efficient Resonance Technology

    The resonance principle improves energy utilization and reduces the requirement for high-capacity power supply during testing.

  • 3. Flexible Equipment Adaptability

    The system configuration can be adjusted according to different test objects, including transformers, cables, GIS, and other power equipment.

  • 4. Intelligent Protection System

    Multiple monitoring functions help identify abnormal conditions and ensure safer operation during high voltage testing procedures.

FAQ

Q1: What is SXBP-540kVA 270kV AC Resonant Test System mainly used for?

A: It is mainly designed for AC withstand voltage testing and insulation performance evaluation of high voltage electrical equipment.

Q2: Which equipment can be tested with this system?

A: It can be used for transformers, cables, GIS, switchgear, reactors, and other power system equipment.

Q3: Why use variable frequency resonance technology?

A: It provides stable high voltage output with improved efficiency, especially for capacitive test objects.

Q4: Can the system be customized according to project requirements?

A: Yes. The voltage level, capacity, and configuration can be customized according to different testing applications.
