Specifications
Control :
Computer Control
Model Number :
SXBP
Phase :
3
MOQ :
1
Dimensions :
800mm x 600mm x 1200mm
Brand Name :
Sansion
Rated Power :
162 kVA
Delivery Time :
30 work days
Regulator Capacity :
400kVA Continuous Adjustable Output
Packaging Details :
plywood case
Applicable Capacity :
≤3MVA/5MVA dry transformers
Certification :
CE SGS ISO9001
Load Way :
Electronic Load
Payment Terms :
L/C,T/T
Powersupply :
AC 220V ±10%, 50/60Hz
Place of Origin :
China
Description
Product Description

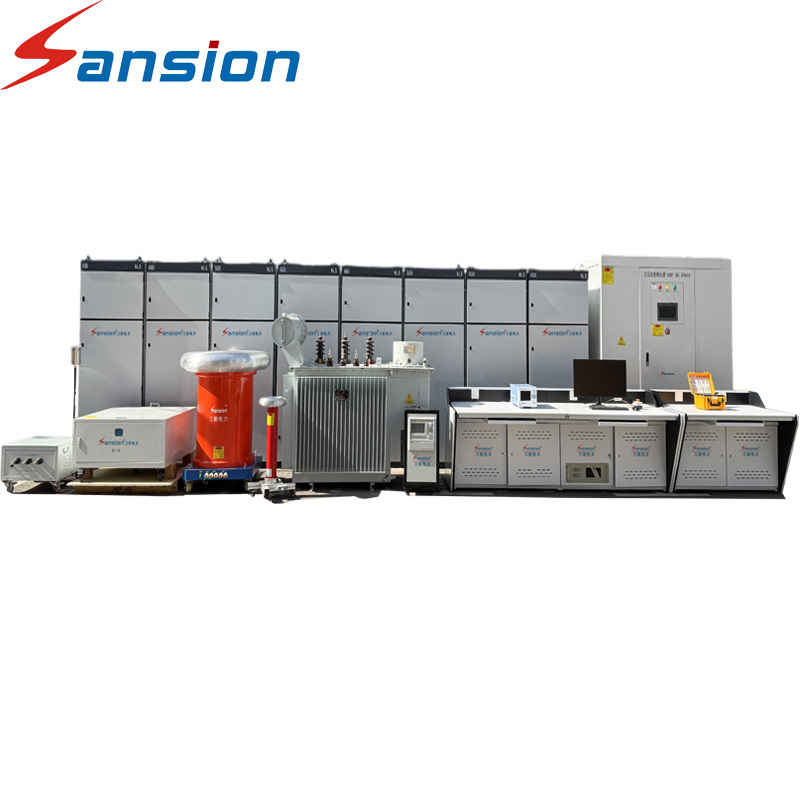

The Transformer Comprehensive Test Bench provides an integrated solution for electrical performance testing of power transformers and distribution transformers.

Designed for transformer manufacturing plants and testing facilities, the system brings several routine tests together in one platform, helping engineers improve testing efficiency while maintaining consistent measurement procedures.

A comprehensive transformer testing system may include ratio testing, winding resistance, no-load characteristics, load characteristics, short-circuit impedance and withstand voltage testing.

Typical Applications
  • Transformer factory routine testing
  • Factory acceptance testing
  • Incoming inspection
  • Transformer commissioning
  • Maintenance testing
  • Preventive testing
  • Laboratory testing
  • Transformer production line testing
Testing Capabilities
Transformer Ratio Test

Measures transformer turns ratio, ratio error and vector group.

DC Winding Resistance Test

Checks winding resistance and can help identify winding connection problems, poor contacts and tap-changer contact abnormalities.

No-Load Test

Measures:

  • No-load current
  • No-load loss
  • Power factor
  • Core-related electrical characteristics
Load Test

Measures:

  • Load loss
  • Short-circuit impedance
  • Load current
  • Relevant power parameters
Withstand Voltage Test

The system can be configured for power-frequency AC withstand and induced voltage testing.

Why Use a Comprehensive Test Bench?

A conventional transformer factory may use several separate instruments. This can mean repeated wiring, repeated setup and manual data consolidation.

An integrated system can simplify the workflow and provide centralized control and data management.

FAQ

Q: Is this system suitable for distribution transformer manufacturers?
Yes. It can be configured specifically for distribution transformer routine testing.

Q: Can it test three-phase transformers?
Yes, three-phase transformer testing can be supported according to the system configuration.

Q: Can the system test dry-type transformers?
Yes. The test capacity and voltage should be selected according to the dry-type transformer specifications.

Q: What information should I provide when requesting a quotation?

  • Transformer rated capacity
  • Rated voltage
  • Transformer type
  • Number of phases
  • Test voltage
  • Required test items
  • Factory power supply
  • Applicable standards
  • Required automation level
