Specifications
Brand Name :
SANROCK POWER
Model Number :
SPDG20KW
Certification :
CE;ISO
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Chat with supplier now for more details.
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100000set/month
Delivery Time :
18-30work days Shipping fee and delivery date to be negotiated.
Packaging Details :
Nude package for machines, Wooden box package for spare parts, Or customer demand.
Product Nam :
open type generator set / genset open type
Frequency :
50HZ/60HZ
Voltage :
48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Cylinder :
3/4/6/12-According to power
Cylinder number :
3,4,6,8,12cylinders
Phase Number and connection :
3-phase 4-wire system
Cooling system :
Water cooling
Dimension of set (mm) :
1485*700*1000mm~7300*2440*2800mm
Net weight of set (kg) :
specified
Rated Power (kw/1500rpm) :
5-2250kva
Speed :
1500/1800RPM
Type :
Trailer Type, Silent Type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type
Rated Power :
20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,1800KW,2200KW
Application :
Factory,Building,Farm,Bank etc
Usage :
Common Units, Standby Unit
Stroke :
Four Stroke
Logistics :
Whole machine transportation or disassembly transportation; Sea or railway transportation
Description

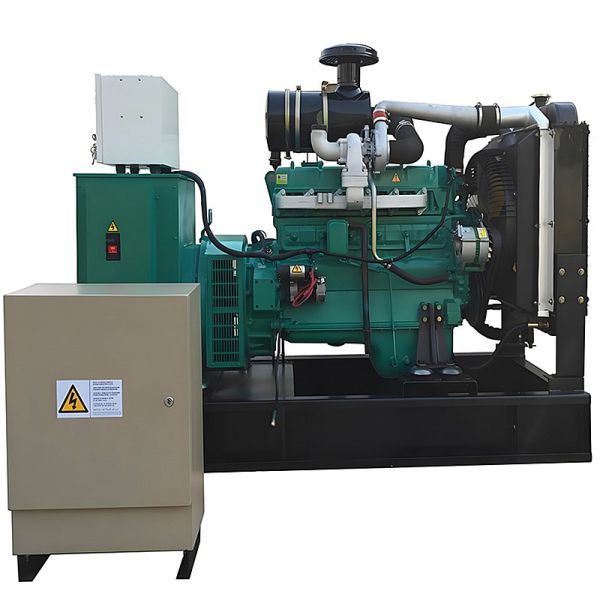

20KW Open-Frame Standby Generator for Office Buildings

This durable 20KW open-frame generator provides a cost-effective backup power solution for office buildings, ensuring business continuity during grid outages. Designed to maintain essential operations, it offers reliable performance for critical office systems while prioritizing functionality and ease of maintenance.

Operational Advantages:
Continuous Operations: Maintains productivity during power interruptions
System Protection: Prevents data loss and hardware damage from sudden outages
Safety Compliance: Supports life safety systems per building codes
Cost-Effective: More affordable than enclosed models with reliable performance
Easy Maintenance: Accessible design simplifies servicing and inspections
Building Integration: The generator's robust steel frame provides durability while allowing excellent ventilation for continuous operation. While requiring installation in a designated equipment area due to its open design, it delivers dependable power for extended periods. Compatible with automatic transfer switches for seamless power transition during outages.

This 20KW solution represents an optimal balance of performance and value for office buildings seeking reliable backup power while maintaining budget considerations.

Key Office Applications:
Emergency lighting systems and exit signs
Elevator emergency operation circuits
Security systems, access control, and surveillance equipment
Server rooms, network infrastructure, and communication systems
Critical workstations and essential office equipment

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Cost Effective Diesel Engine Generator Set Open Diesel Generator Office Buildings Portable Diesel Driven Generator

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)
Product Name Diesel generator
Engine customized
Alternator customized
Protection genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power

20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,

1800KW,2200KW
Cylinder number
3,4,6,8,12cylinders
Cooling System Type
Water Cooling System
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage
48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed
1500/1800
Frequency
50/60HZ
Diesel Engine
UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model
Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor
0.8lagging
Noise level dB(a)
65-95/1m
Excitation
self-excitation
Phase Number and connection
3-phase 4-wire system
Dimension of set (mm)
1485*700*1000mm~7300*2440*2800mm

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.
