Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set
Specifications
Brand Name :
SANROCK POWER
Model Number :
SPDG20KW
Certification :
CE;ISO
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Chat with supplier now for more details.
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100000set/month
Delivery Time :
18-30work days Shipping fee and delivery date to be negotiated.
Packaging Details :
Nude package for machines, Wooden box package for spare parts, Or customer demand.
Product Nam :
open type generator set / genset open type
Frequency :
50HZ/60HZ
Voltage :
48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Cylinder :
3/4/6/12-According to power
Cylinder number :
3,4,6,8,12cylinders
Phase Number and connection :
3-phase 4-wire system
Cooling system :
Water cooling
Dimension of set (mm) :
1485*700*1000mm~7300*2440*2800mm
Net weight of set (kg) :
specified
Rated Power (kw/1500rpm) :
5-2250kva
Speed :
1500/1800RPM

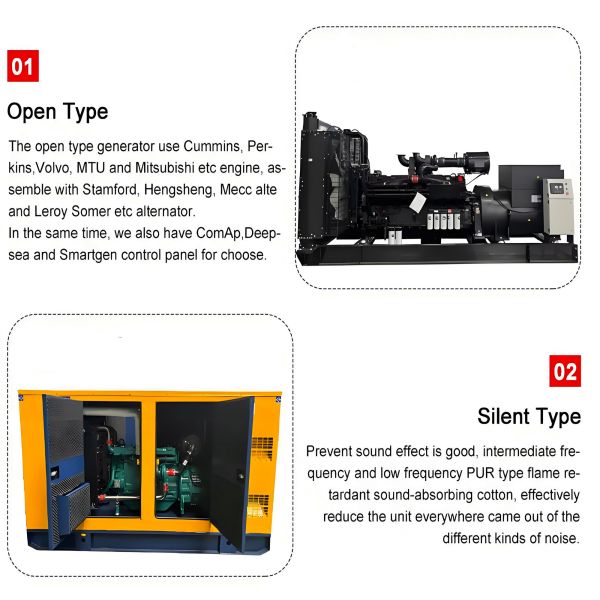

Type :

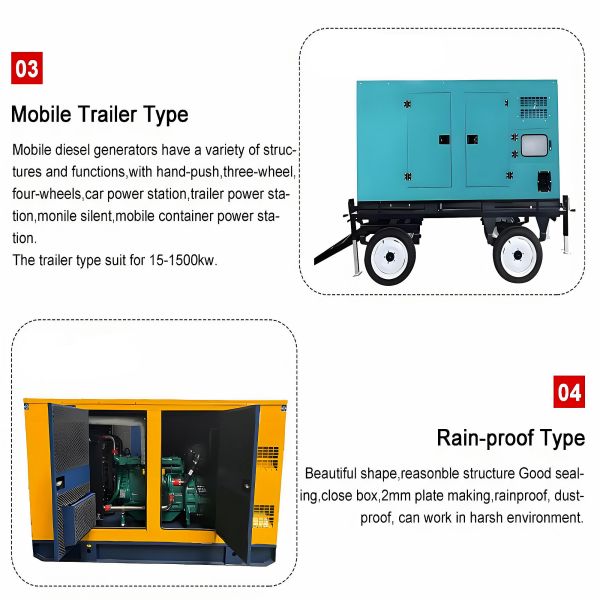

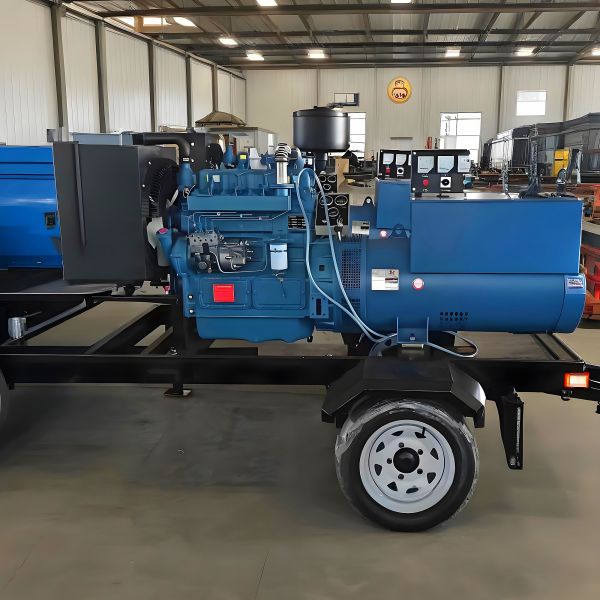

Trailer Type, Silent Type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type
Rated Power :
20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,1800KW,2200KW
Application :
Factory,Building,Farm,Bank etc
Usage :
Common Units, Standby Unit
Stroke :
Four Stroke
Logistics :
Whole machine transportation or disassembly transportation; Sea or railway transportation
Description

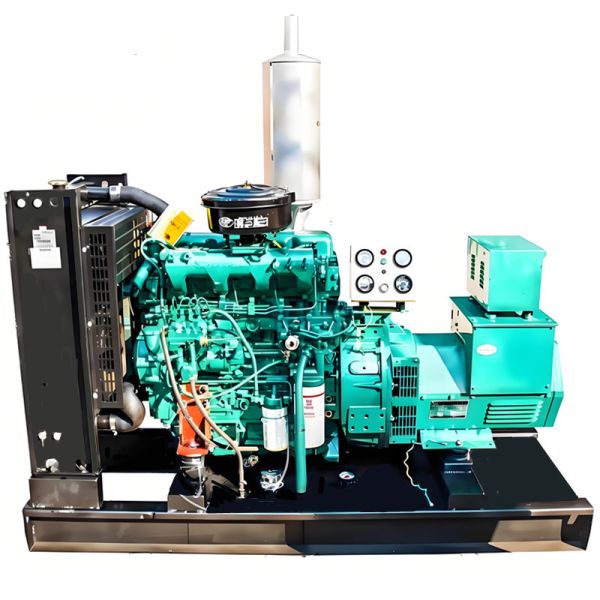

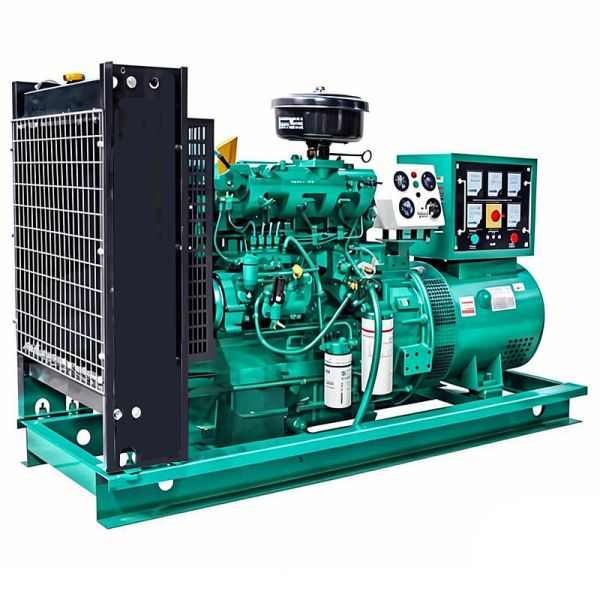

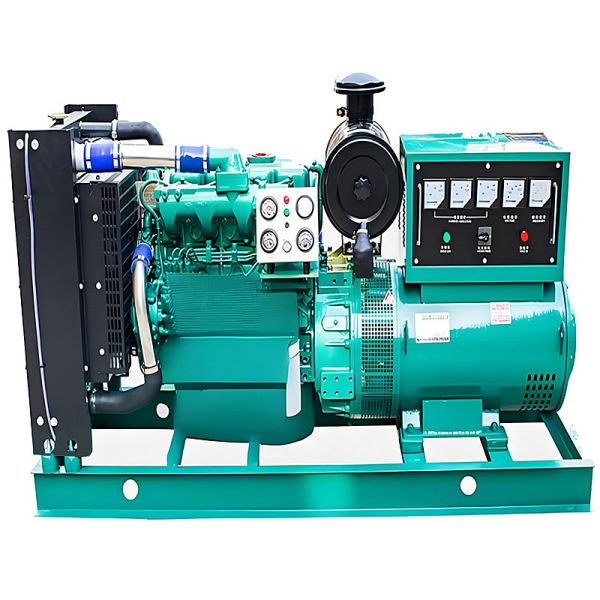

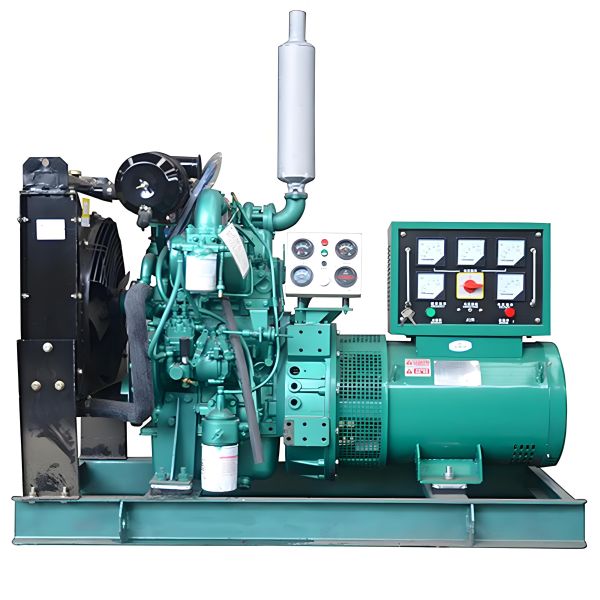

20KW Open-Frame Generator for Emergency Disaster Relief
Engineered for critical emergency response operations, this 20KW open-frame generator delivers reliable power in disaster-stricken areas where grid electricity is unavailable. Its robust construction and simple design make it ideally suited for rapid deployment in post-disaster scenarios, including earthquake zones, flood-affected regions, and hurricane-impacted areas.

Operational Advantages:
Rapid deployment capability for immediate power restoration
Fuel-efficient operation for extended use in resource-limited environments
Compatible with various fuel sources available in emergency situations
High reliability with minimal maintenance requirements
This 20KW generator serves as a vital power source for disaster relief teams, providing the essential electricity needed to save lives and support recovery efforts when conventional power infrastructure is compromised.

Critical Applications:
Powers emergency medical tents, field hospitals, and mobile clinics
Supports rescue equipment, communication systems, and lighting setups
Provides electricity for water purification systems and temporary shelters
Energizes charging stations for essential electronic devices
Emergency-Adapted Features: The generator's open-frame design ensures excellent heat dissipation during continuous operation and allows for quick maintenance and repairs—even in challenging field conditions. Its durable steel frame provides protection during transport over rough terrain, while the simple mechanical design enables operation by personnel with basic training.

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set



Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)
Product Name Diesel generator
Engine customized
Alternator customized
Protection genset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power

20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,

1800KW,2200KW
Cylinder number
3,4,6,8,12cylinders
Cooling System Type
Water Cooling System
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage
48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed
1500/1800
Frequency
50/60HZ

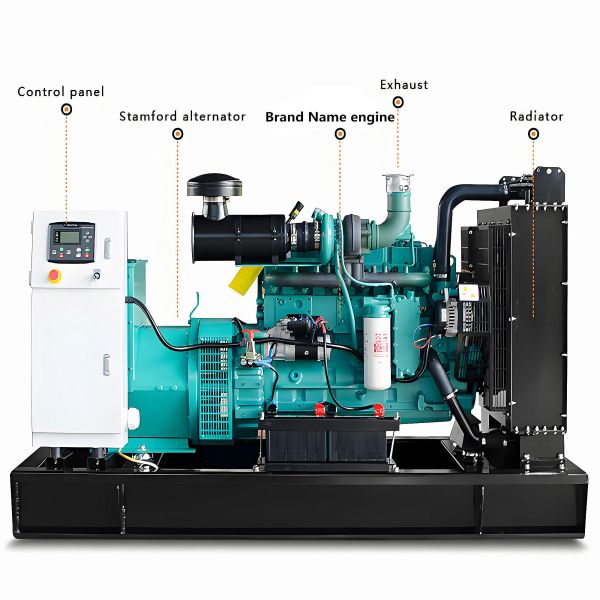

Diesel Engine
UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model
Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor
0.8lagging
Noise level dB(a)
65-95/1m
Excitation
self-excitation
Phase Number and connection
3-phase 4-wire system
Dimension of set (mm)
1485*700*1000mm~7300*2440*2800mm

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set


Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

Open Frame Diesel Generator Disaster Relief Emergency Diesel Generator Small Diesel Engine Generator Set

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;


2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck


3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
