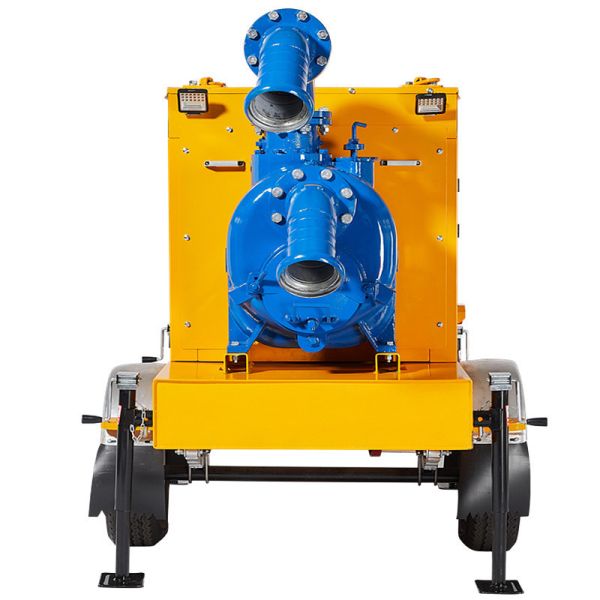

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump
Specifications
Brand Name :
SANROCK POWER
Model Number :
SP150ZW200-15P
Certification :
OEM, ODM, OBM
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Chat with supplier now for more details.
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100000set/month
Delivery Time :
18-30work days Shipping fee and delivery date to be negotiated.
Packaging Details :
Nude package for machines, Wooden box package for spare parts, Or customer demand.
Power source :
Diesel Engine
Application :
Sewage Pump, Slurry Pump,Drainage Water Pump, Irrigation Pump, etc
Product name :
Self Priming Pump
Advantage :
Long Working Life
Structure :
Multistage Pump,Single-stage Pump,Piston Pump,match veriety of pump,Other
Color :
blue,Blue/OEM,any color,customer design,Customer's requirements
Start Up :
Electric Pump
Industry :
Mechanical Pump
Performance :
Automatic Pump
Coupling Type :
High Elastic Coupling or Pin Coupling
Pump Accessories :
Trailer, Silent Canopy, Control Panel, Fuel Tank
Description


Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

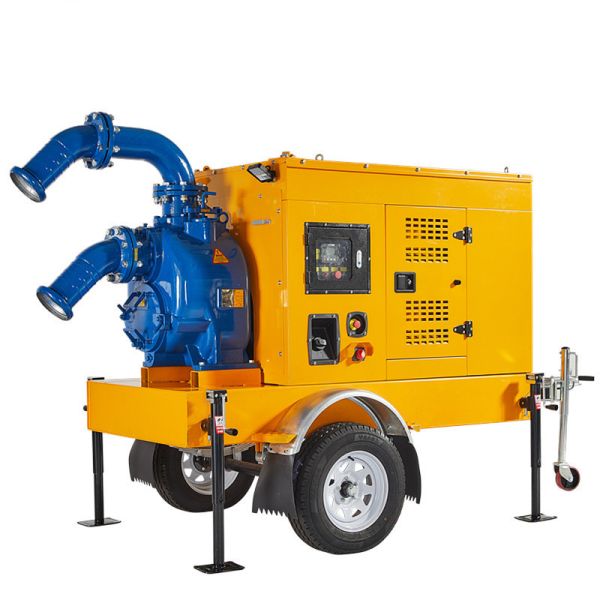

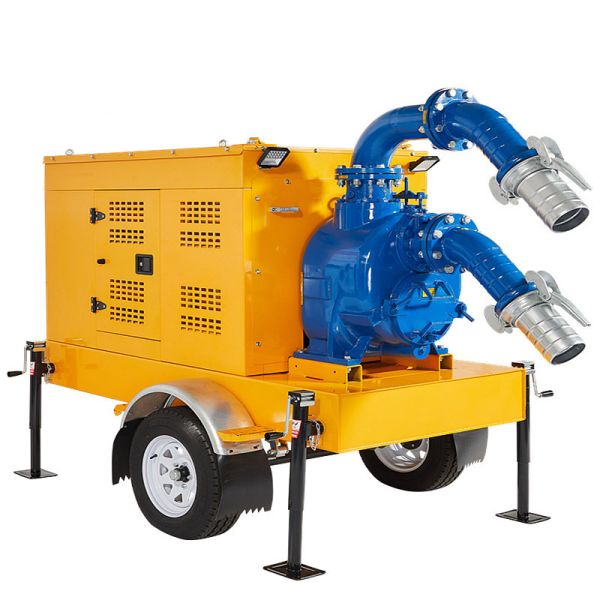

The corrosion-resistant aluminum trailer chassis integrates stabilizer jacks and all-terrain

pneumatic tires, enabling swift positioning on uneven ground or congested urban sites.

A modular design allows rapid connection to diverse water sources, including fire hydrants,

reservoirs, or natural bodies of water through multiple standardized inlet/outlet ports.

The thermal-protected engine compartment ensures reliable operation in high-temperature

environments, while the integrated vibration-dampening system protects internal components

during extended missions.

360° intake manifold for multi-directional suction from flooded basements, drainage ditches,

or submerged infrastructure. Debris-rejecting vortex impeller paired with quick-clean cartridge

filters to minimize clogs. Its compact mobility and instant-start capability make it indispensable

for civil protection agencies, infrastructure maintenance teams, and emergency relief organizations

combating catastrophic flooding events.



Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump





Equipment Introduction

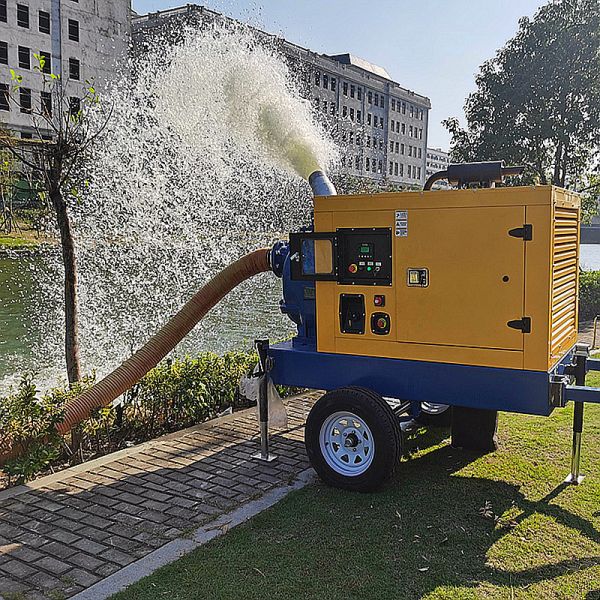

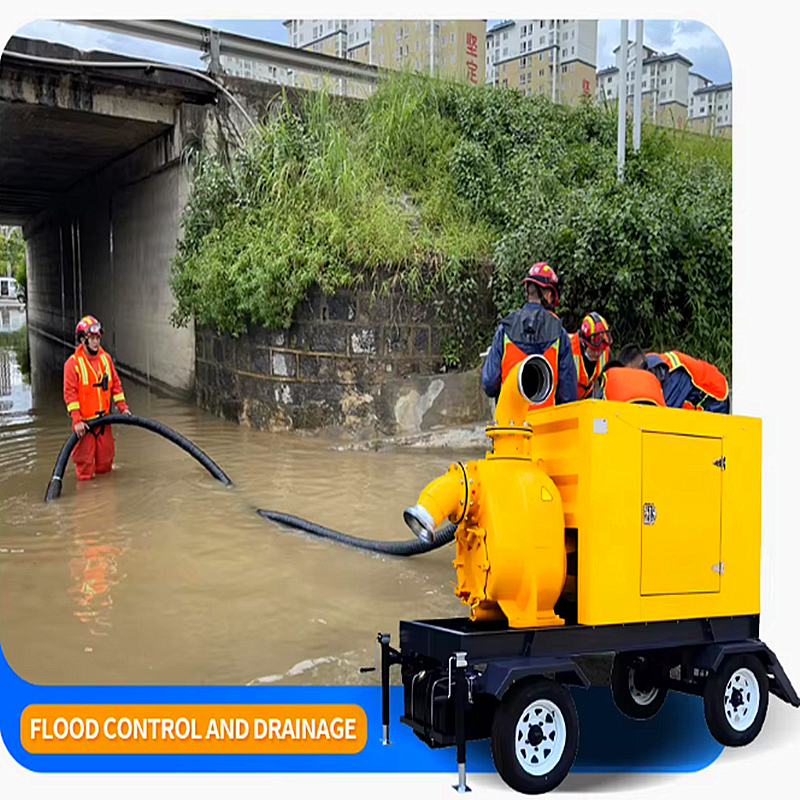

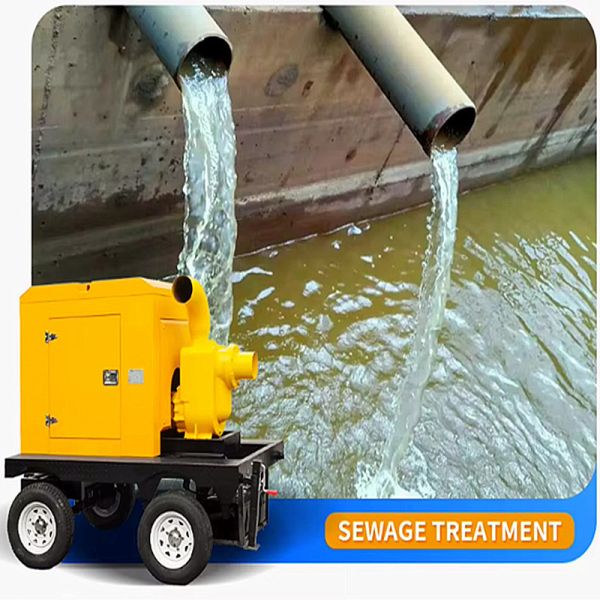

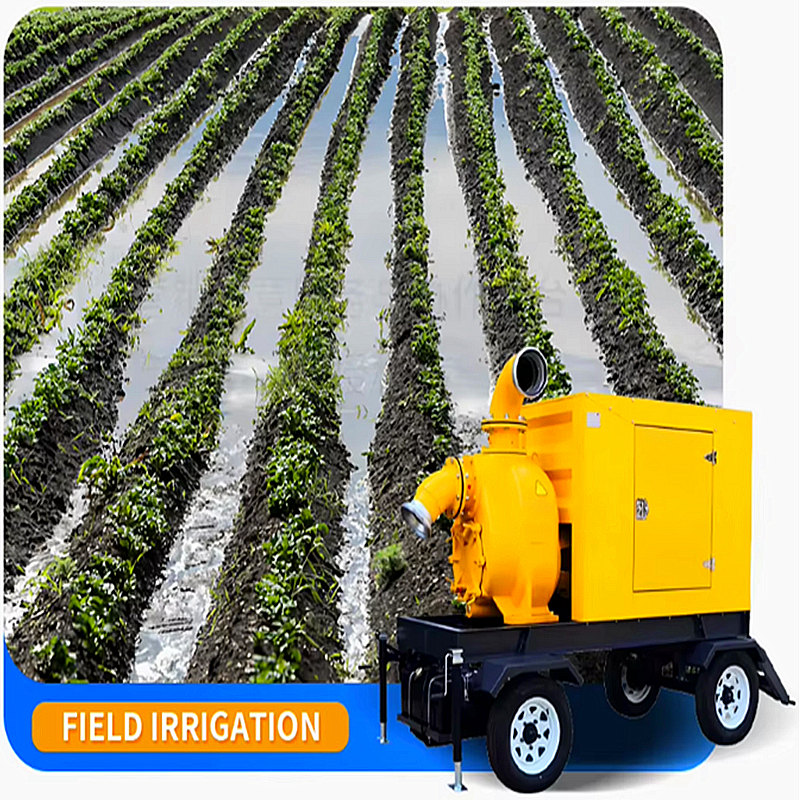

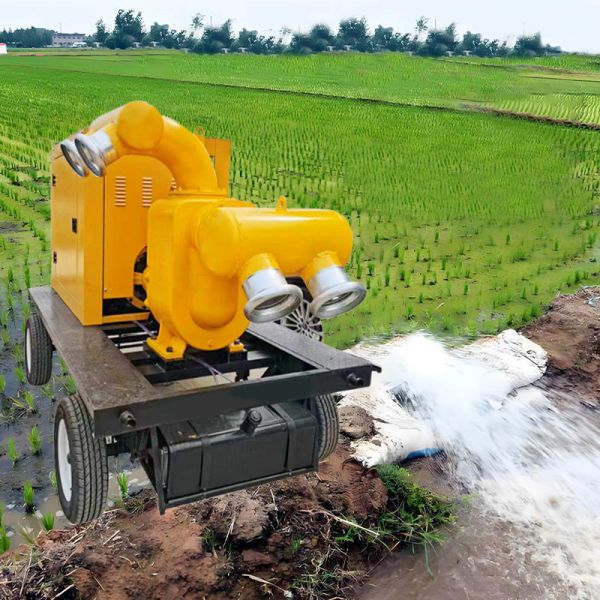

Self-priming sewage pump trailer adopts diesel engine with self-priming sewage pump mobile trailer unit. Supporting diesel engine drive, no external power supply. Diesel engine supporting control system, supporting 2 - wheel or 4 - wheel trailer. It can be applied to urban roads. Mainly used for: underground pipe network drainage, urban waterlogging, emergency flood control, agricultural irrigation, fire emergency rescue, mine drainage, etc

Product Features:

1. Strong self-imbibition: the first irrigation can achieve self-imbibition, self- imbibition 6 meters.

2. Impurity through large amount: wide groove impeller design, impurity through 20% of the caliber

3. Easy to move: supporting mobile trailer, can also move freely in place.

4. Diesel engine: Supporting domestic famous brand diesel engine, long service life, national insurance.

5. The inlet and outlet matching water pipe hose joint is convenient to connect the inlet pipe and the outlet hose.

6. Long working time: equipped with large capacity oil tank, which can be used continuously for a long time.

7. Control system: The control system automatically monitors the diesel engine operation data, monitoring oil temperature, oil pressure, water temperature, speed, etc. If there is abnormal automatic alarm stop. Or optional with remote control system, network coverage can realize remote control.



Can you do OEM for me?We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.

How can I place the order?

Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.

Warranty service


Product Description

NO Name Qty NO Name Qty
1 2 /4 Wheel trailer 1 Set 8 △Inlet manifold 1 Set
2 ※Diesel engine 1 Set 9 △Outlet manifold 1 Set
3 △Soundproof box 1 Set 10 △ Inlet quick coupling 1 Set
4 ※Diesel engine control system 1 Set 11 △Outlet quick coupling 1 Set
5 LED light system 1 Suit 12 △ Inlet pipe 1 Set
6 Self priming sewage pump 1 Set 13 △Outlet pipe 1 Set
7 Battery 1 Suit 14 Sevice kit 1 Set
Model SP150ZW200-15P SP200ZW300-15P SP250ZW420-20P SP300ZW1000-10P
Flow 150~200m³/h 280~350m³/h 280~420m³/h 800~1000m³/h
Head 15~20m 10~15m 20~28m 10~14m
Diameter 150mm 200mm 250mm 300mm
Diesel engine model WP2.3D25E200 WP2.3D33E200 WP4.1D66E200 WP4.1D100E200
Diese engine brand Weichai(Optional brand:Cummins,Deutz,Yuchai,Shangchai etc)
Intake mode Suction Boost pressure Boost pressure Inter-cooling
Cylinder * strock 89mm×92mm 89mm×92mm 105mm×118mm 105mm×118mm
Control way Electrical
Main power 22/25KW 30/33KW 60/66KW 90/100KW
Speed 1500r/min
Trailer type 2 Tyres 2 Tyres 4 Tyres 4 Tyres

The above parameters are optional, and the actual model selection is selected according to the actual working conditions required by users on site. Some conditions of the data beyond the above technical parameters table, you can consult Olsen pump industry sales engineer. We will provide professional selection service, recommend suitable for your model.

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump





Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump


Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

Customized Self-Priming Water Pump Speed 1500r/min Silent Pump Diesel Motor Pump

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;


2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck


3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
