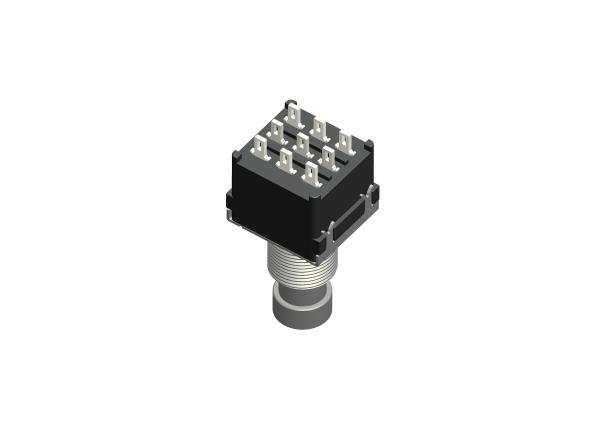

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting
SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting
Specifications
Brand Name :
SANNI
Model Number :
SF17011M
Place of Origin :
China
MOQ :
500pcs
Price :
USD1.3~USD1.5 per pc
Payment Terms :
T/T
Supply Ability :
10000pcs per Month
Delivery Time :
25 working days
Packaging Details :
500pcs per Carton box,
Model NO. :
SF17011M
Trademark :
SANNI
Specification :
17mm
Usage :
Guitar Pedal,Mixer Pedal etc....
Structure :
Screw Shank Fixting Style
Operation :
Push Lever
Samples :
Free sample with freight collect shipping
Customization :
Available
Description

SF17011M 9 Terminal ON-ON Guitar Pedal Footswitch

What Is Foot Switch

Foot switch is a switching device operated by the user's feet. They are widely used in many industries to operate machines or equipment that allow users to make the most of their hands. The foot switch can be instantaneous or lockable. And can use a variety of operating principles.

Feature

Compliant with RoHS Directive

Spring Actuator

Vertical Mounting

PCB DIP Soldering

Durable Structure

SPDT and DPDT are all available

Product Specification

Electrical Specification
Rating 125V AC 6A, 250V AC 3A, 30V DC 4A
Withstand Voltage 1000V AC-1 minute
Contact Resistance 50mΩ Max
Insulation Resistance 500V DC- 100MΩ Min
Operating Life Cycle Latching Type: 10,000 cycles
Momentary Type: 20,000 cycles

Michanical Charactors
Terminal Type Pole Position Operating Force Timing
PCB/Soldering 1 or 2 2 -L = 1.3 ± 0.5 kgf.cm Latching
-M = 1.6 ± 0.5 kgf.cm Momentary

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical MountingSF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting

SF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical MountingSF17011M ON ON Guitar Pedal Footswitch 9 Terminal Vertical Mounting
