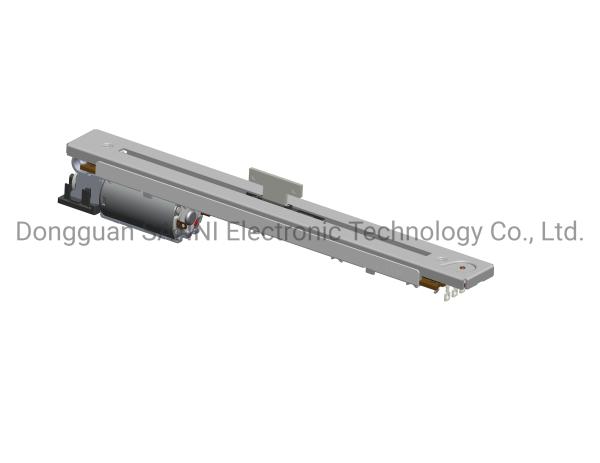

Motor Driven Linear Slide Potentiometer For Professional Audio RAM1001W
Motor Driven Linear Slide Potentiometer For Professional Audio RAM1001W
Specifications
Brand Name :
SANNI
Model Number :
RAM1001W
Place of Origin :
China
MOQ :
500pcs
Price :
USD15~18 per pc
Payment Terms :
T/T
Supply Ability :
5000pccs per Month
Delivery Time :
45 working days
Packaging Details :
100pcs per Carton box,
Model NO. :
RAM1001W
Resistance change scale :
Linear
Application :
Sound Console or Professional Audio
Brand :
SANNI
Slide Travel :
100mm
Installation :
PCB Insertion
Description

RAM1001W Linear Slide Potentiometer Motor Driven Slider

Product Description

  • Linear slide potentiometer
  • Length:144mm
  • Controlled by WiFi
  • Use:Used for Player.Sound.Sound console.walkie-talkie.Medical equipment.Instrument equipment .Meter and Auto AV

Product Features

  • RoHS compliant
  • Open type
  • Small volume
  • Structural diversification
  • High Quality

Motor Driven Linear Slide Potentiometer For Professional Audio RAM1001W
Product Characteristics

1.Electrical Characteristics
Total resistance 5KΩ-500KΩ
Total resistance tolerance ±10% or ±20%
Residual resistance 50Ω Max
Max. operating voltage 50V AC, 20V DC
Rated Power 0.05W for linear taper, 0.025W for audio taper
Insulation resistance 100MΩ min．(DC 500V)
Dielctrical proof 250V DC for １minute
Noise 47 mV max
2.Mechanical Characteristics
Lever travel 100±1mm
Lever stop strength 6Kgf.cm Min
Lever wobble 2(2xL/25)mm P-P Max.
Operating force 5-35gf.cm
Slide trust of the Lever 5Kgf 10s Min
Life Cycle 30,000 cycles
3.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -30oC to +70oC
4.Welding Performance
Reference for hand soldering 235℃ 5sec.
Motor Drive Characteristics
Rated voltage 5V DC
Operating voltage 4~6V DC
Actuator move speed 20mm/0.1 sec. Min.
Max current 300-600mA



Motor Driven Linear Slide Potentiometer For Professional Audio RAM1001W
Motor Driven Linear Slide Potentiometer For Professional Audio RAM1001WMotor Driven Linear Slide Potentiometer For Professional Audio RAM1001WMotor Driven Linear Slide Potentiometer For Professional Audio RAM1001WMotor Driven Linear Slide Potentiometer For Professional Audio RAM1001WMotor Driven Linear Slide Potentiometer For Professional Audio RAM1001WMotor Driven Linear Slide Potentiometer For Professional Audio RAM1001WMotor Driven Linear Slide Potentiometer For Professional Audio RAM1001WMotor Driven Linear Slide Potentiometer For Professional Audio RAM1001W
