35 Ppm Baby Diaper Packing Machine
35 Ppm Baby Diaper Packing Machine
35 Ppm Baby Diaper Packing Machine
35 Ppm Baby Diaper Packing Machine
35 Ppm Baby Diaper Packing Machine
35 Ppm Baby Diaper Packing Machine
Specifications
Brand Name :
JSX
Model Number :
QB-500
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5pcs/month
Delivery Time :
90-120days
Packaging Details :
Standard package
Automatic grade :
full automatic
Products :
baby diaper and adult diaper
Packing type :
side gussets type
Production Speed :
30-35ppm
Weight :
4000kg
Size :
L(4000)*W(2600)*H(2100)mm
Description

Full automatic baby diaper packing machine, 30-35ppm, side gussets type

Description:

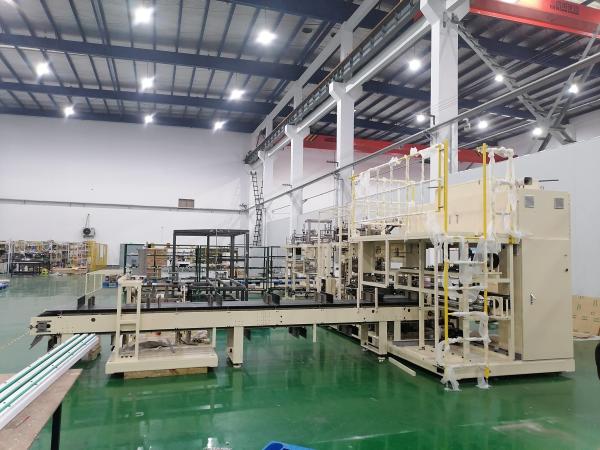

QB-500Y is a robust full automatic baby diaper packing machine for baby diaper or adult diaper. It replaces manual packing and makes the packing more efficient. It uses a full servo-driven system to make accurate actions. With the support of accurate actions, the speed can be up to 30-35ppm. The baby diaper with a package has also neat sealing edge. Besides, it is easy for the worker to learn and master the HMI operation.

With the baby diaper counting stacker, it can be operated completely 'freehand' and greatly improve the precision and quality of the packing process.

Specifications:

Model: QB-500
Material PE
Bag process: On line bag making
Automatic grade Full automatic
Speed 30-35 ppm
Products Baby diaper or adult diaper
Packing Side gussets type
Package range L(125-455)*W(125-175)*H(145-505)mm
Machine Dimension: L(4000)*W(2600)*H(2100)mm
Weight 4600kg
Power supply 3 phase, 380V+N+PE,±5%,50HZ
Capacity 25KW
Air Consumption 0.5m³/min
Pneumatic 0.8Mpa

Characteristic:

1. Full automatic, energy save and efficient improvement

2. HMI operation, realize one-switch to different production methods

3. Imported material, good qualified and hard

4. Laser sensor limit protection, protect the machine from malfunction.

After-sale service:

1. Instruction manual in English and Chinese

2. A series of training for your operator

3. Engineer directly to your factory for debugging.

Any further questions, please feel free to contact us.

JSX automation, your better solution expert.
